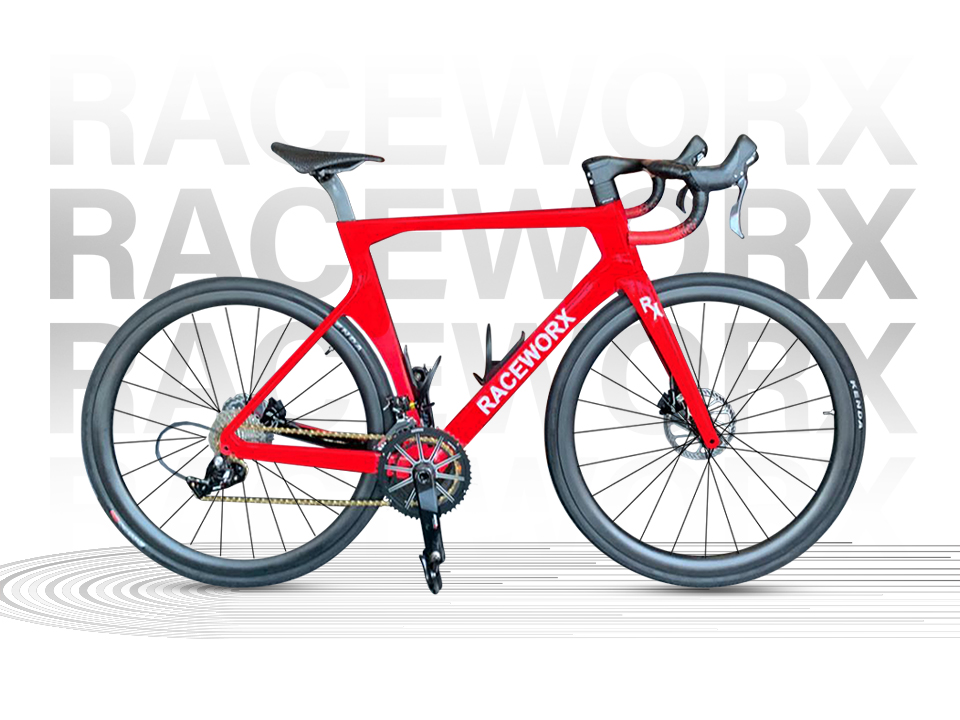

YOUR DREAM BIKE STARTS HERE — YOU DREAM IT — WE BUILD IT!

Select your frame based on your style of cycling, our frames are designed for

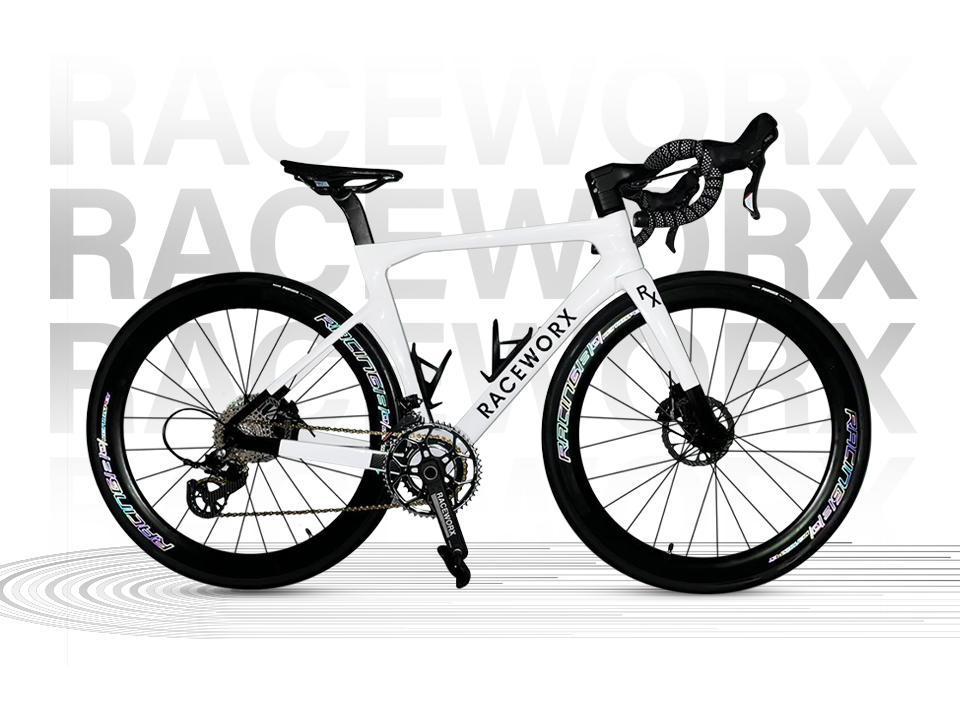

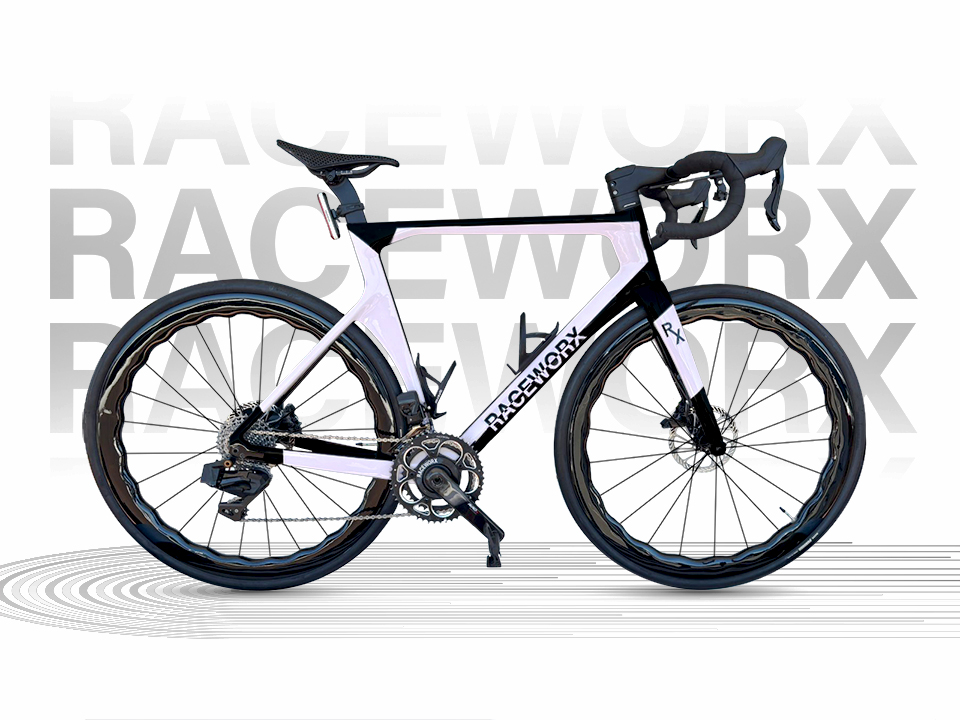

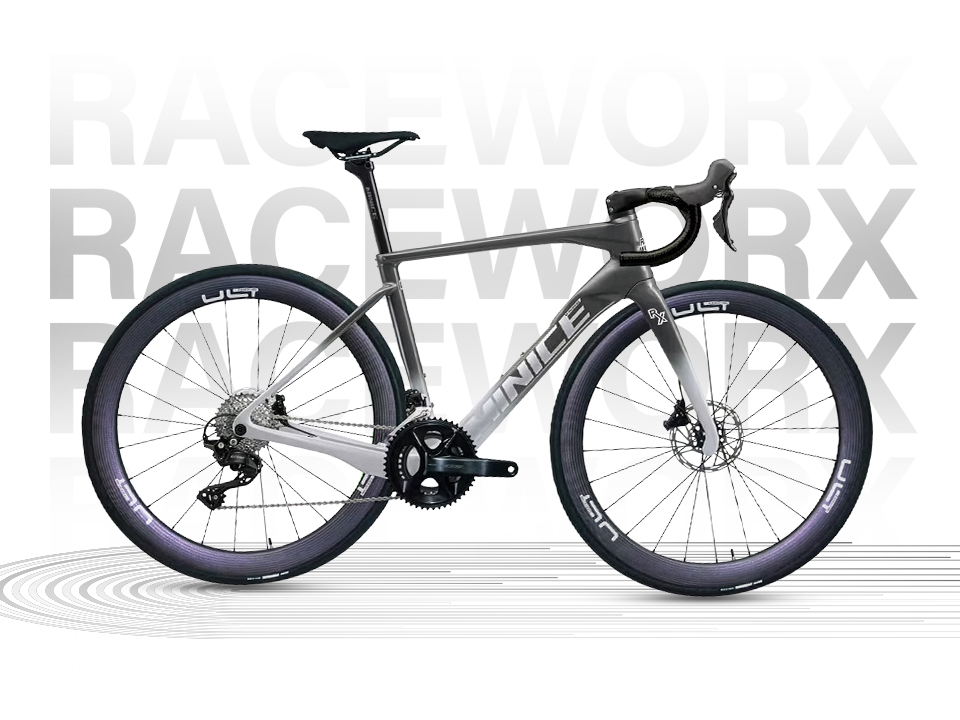

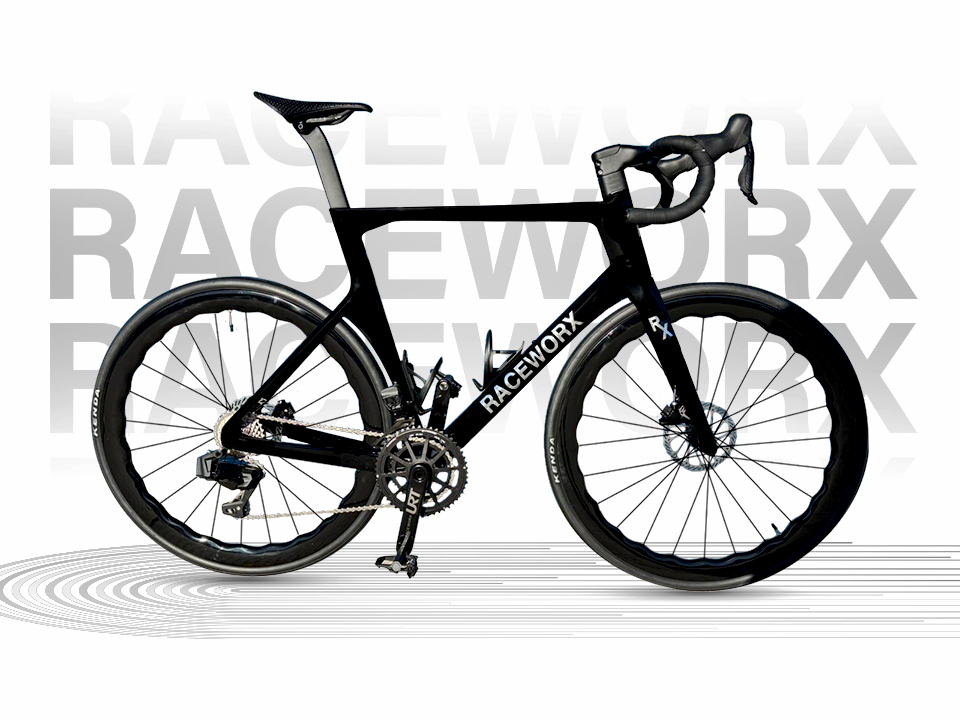

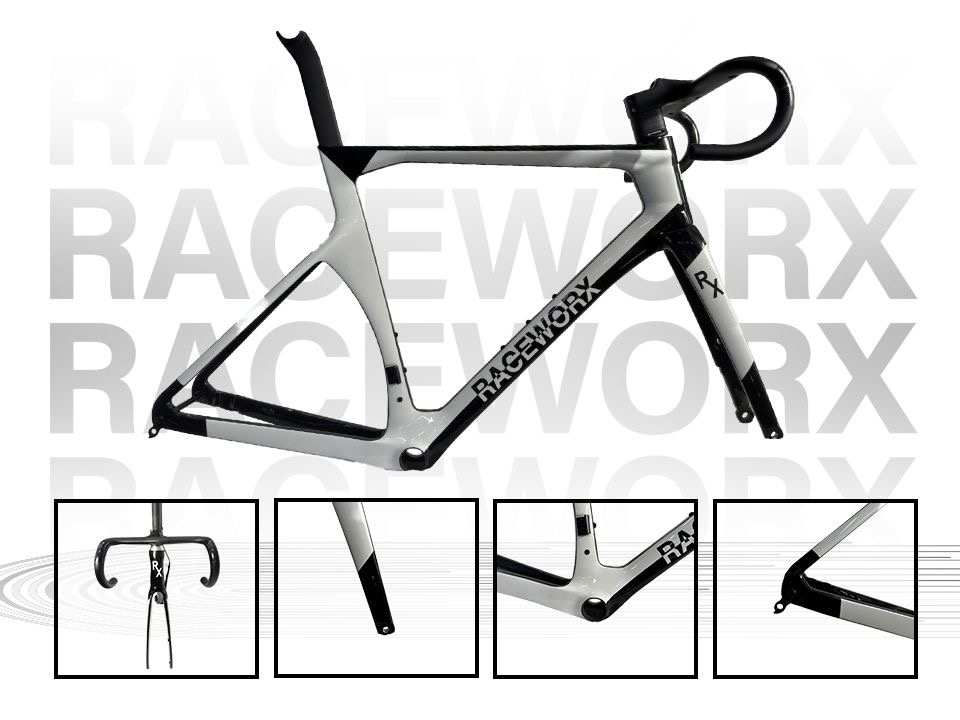

A: Aero Frame - full speed racing - stiff and super responsive - aggressive and fast

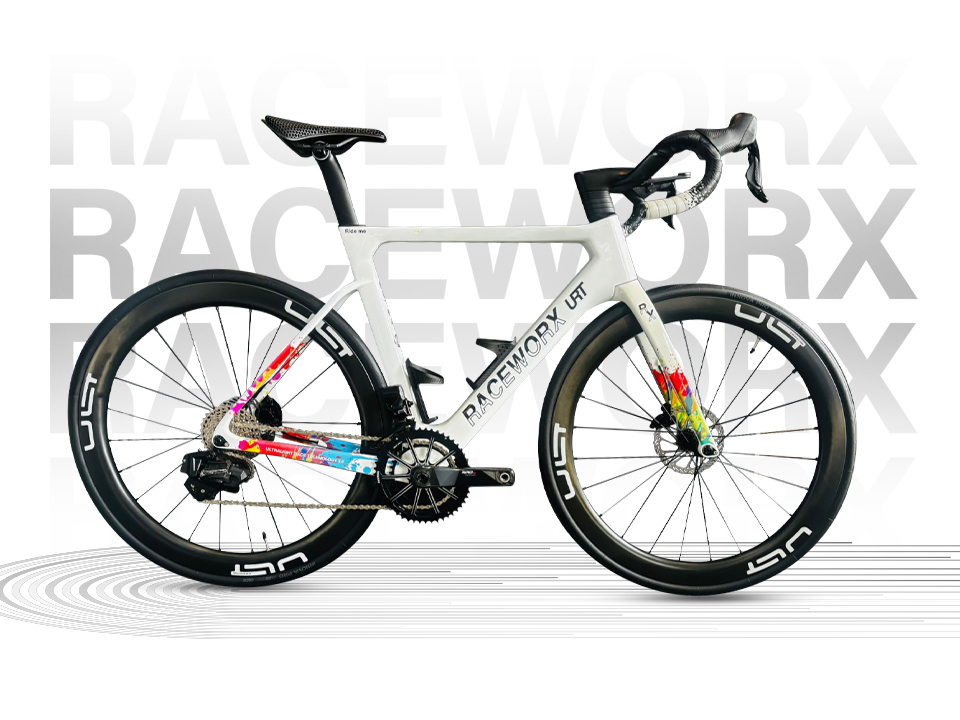

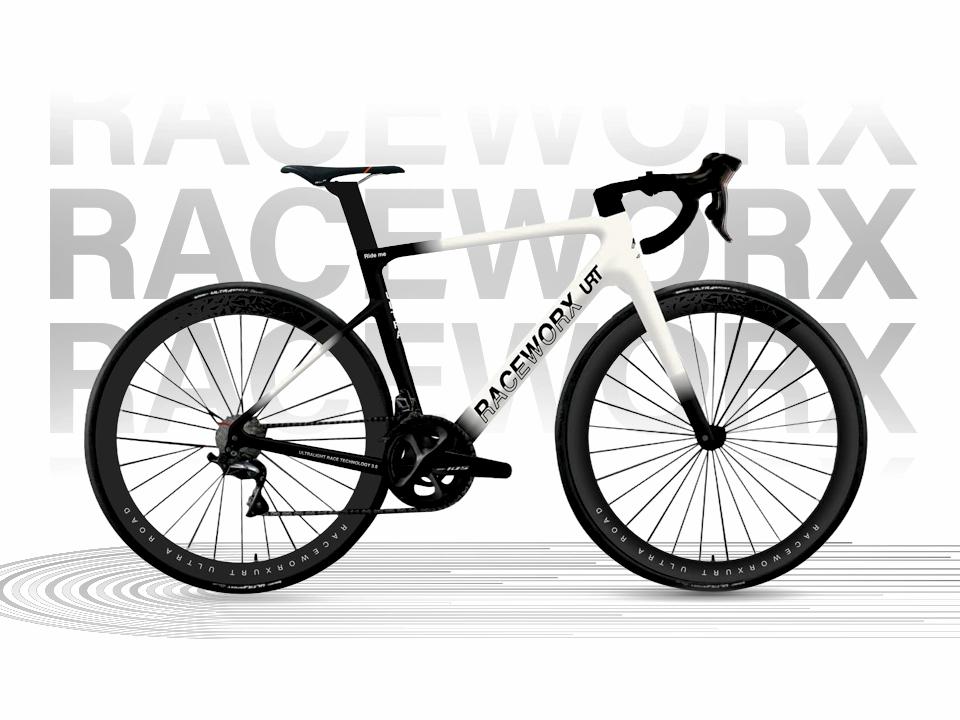

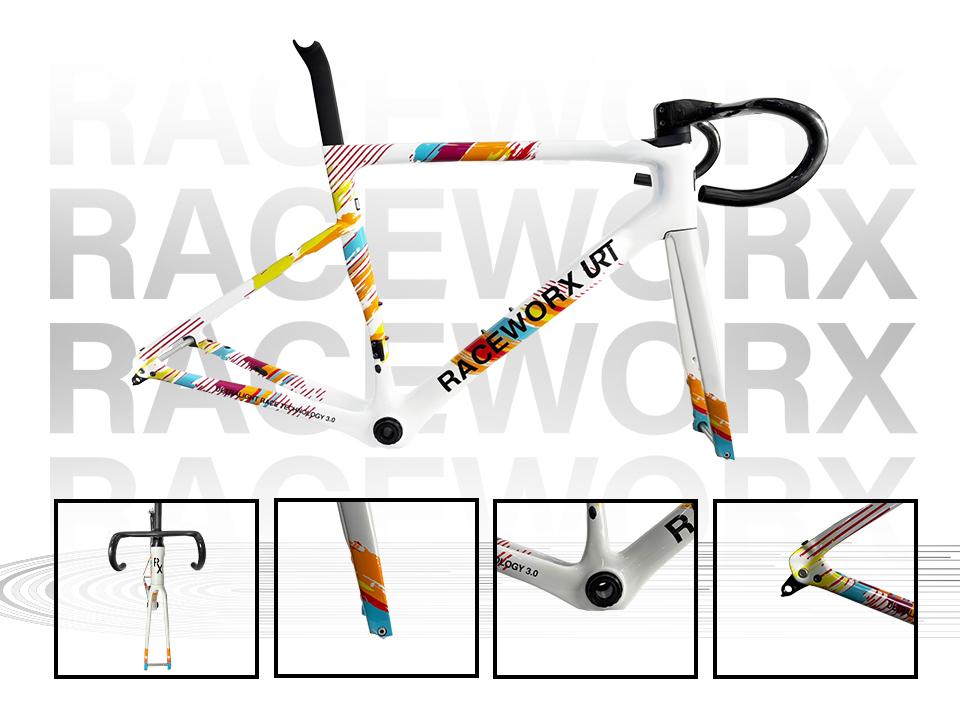

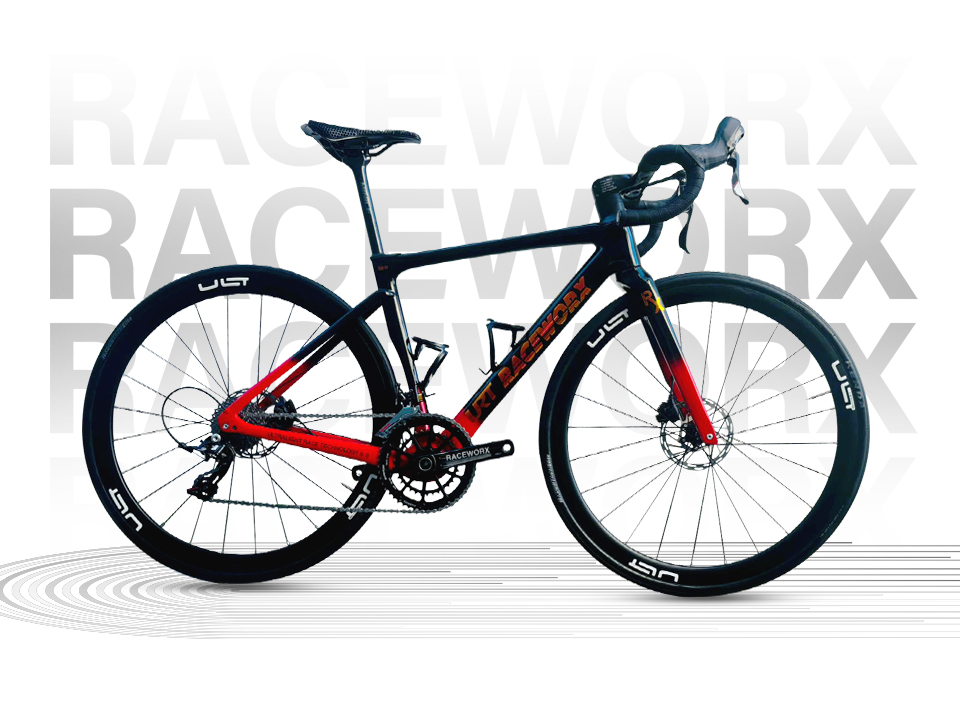

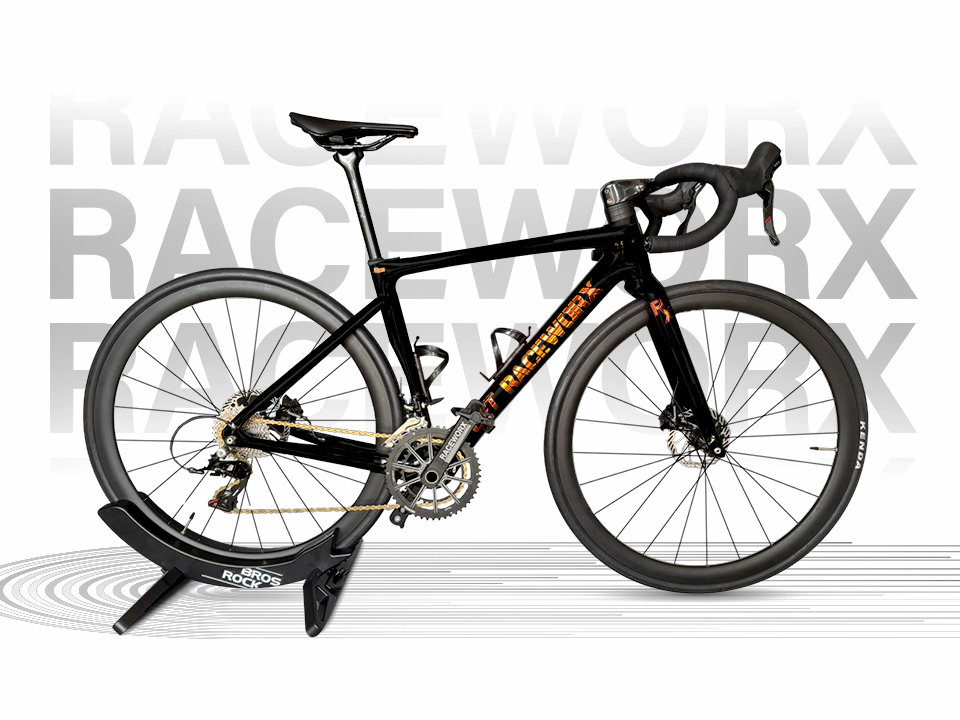

B: Aero Climbing - Strong racing frame - combines aero design and compliance for easy climbing

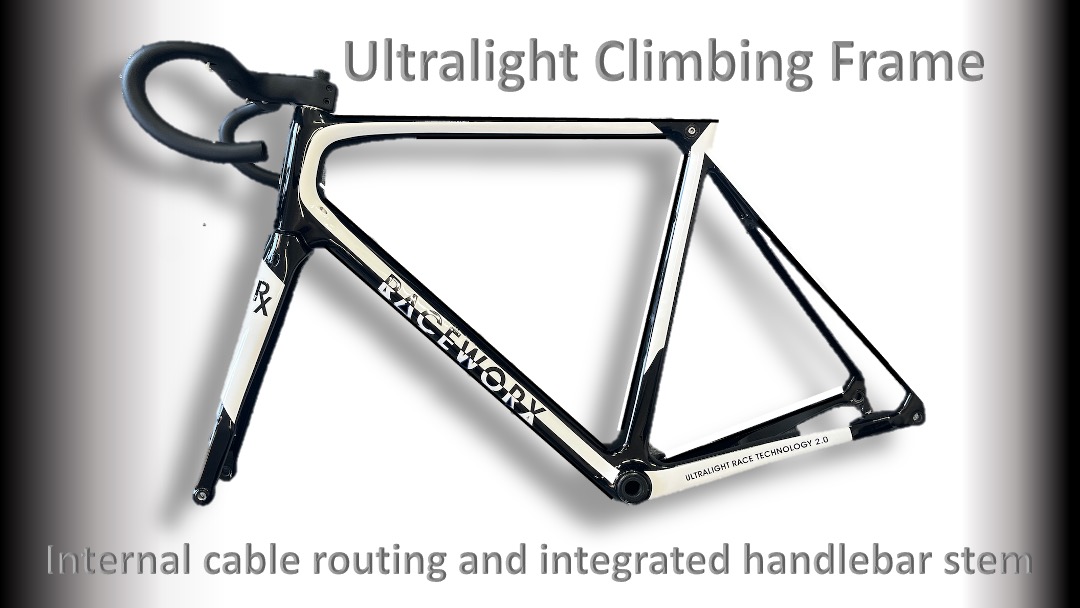

C: Climbing Optimised - Enduro design frame, using compliant tube geometry for long distance relaxed cycling

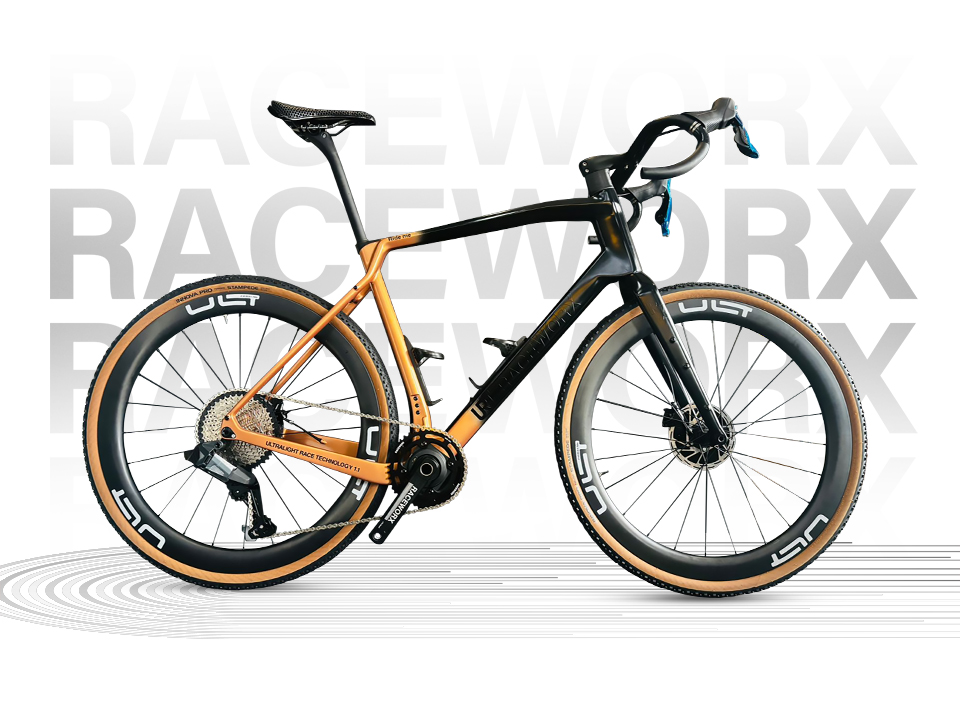

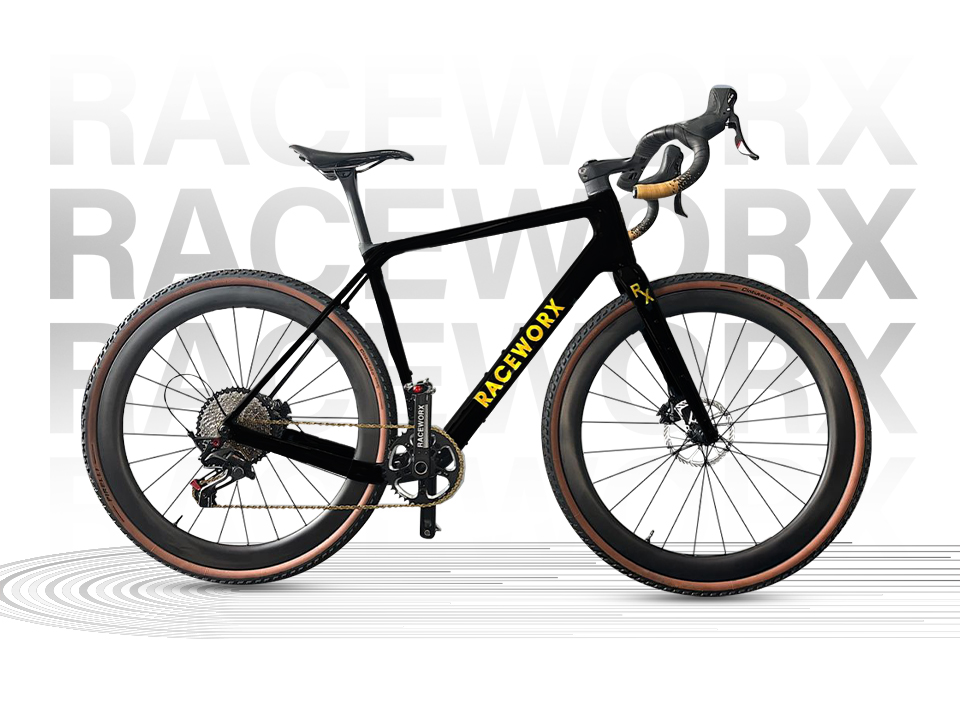

D: Gravel Aero - strong fast Gravel design frame - 50mm tyres are possible - road irregularities absorb through an
advanced tube design. Ideal for racing and general off road dirt track riding

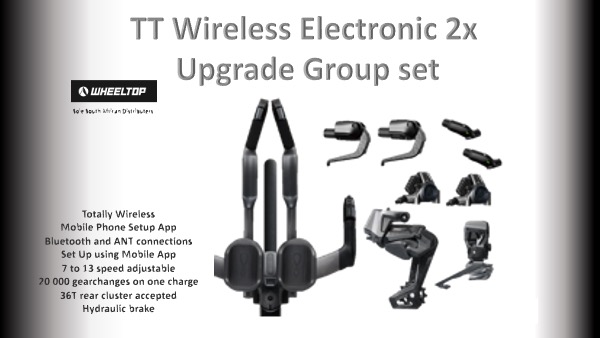

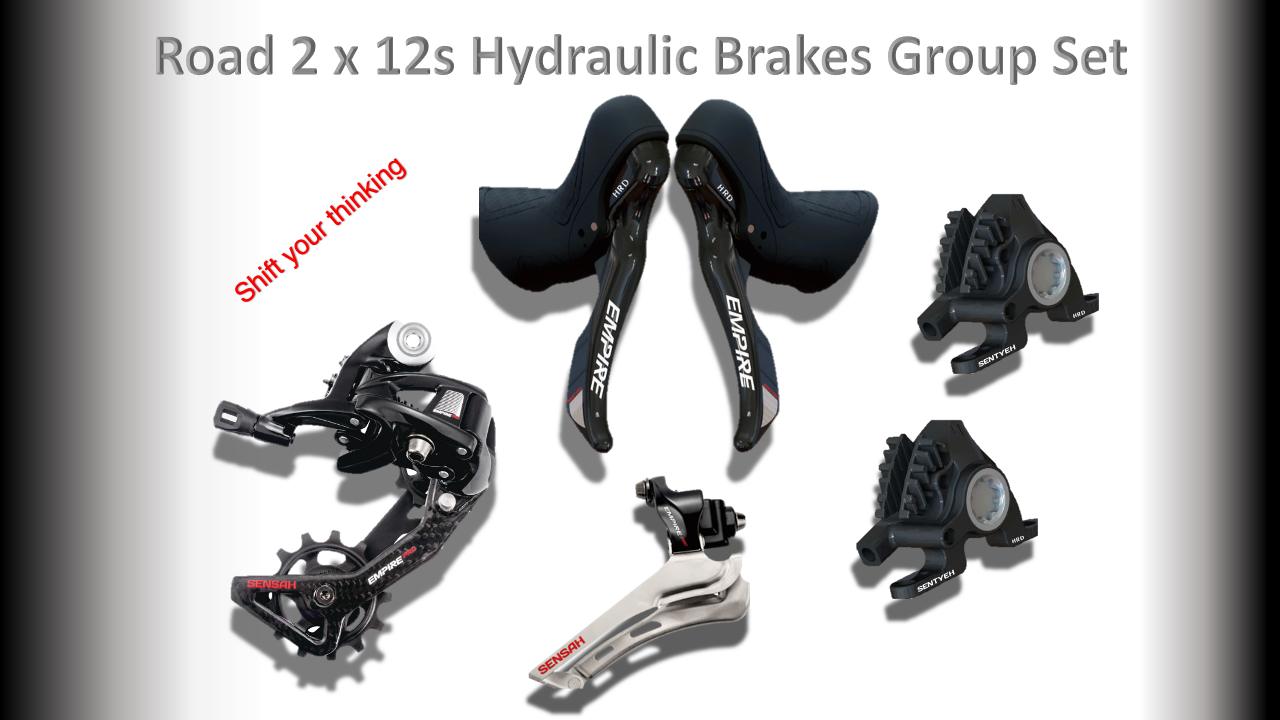

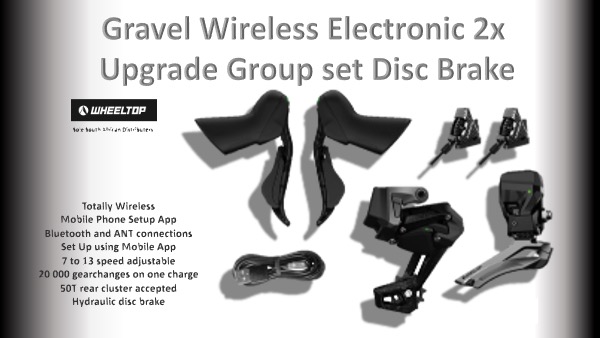

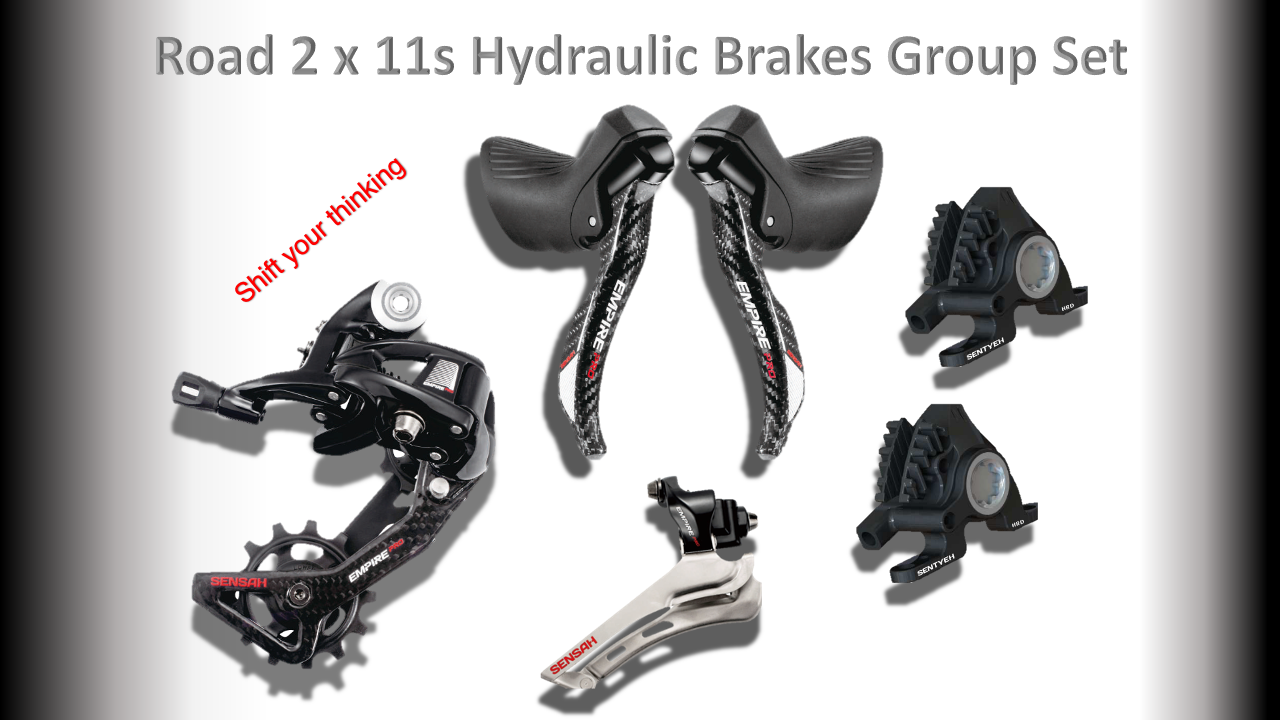

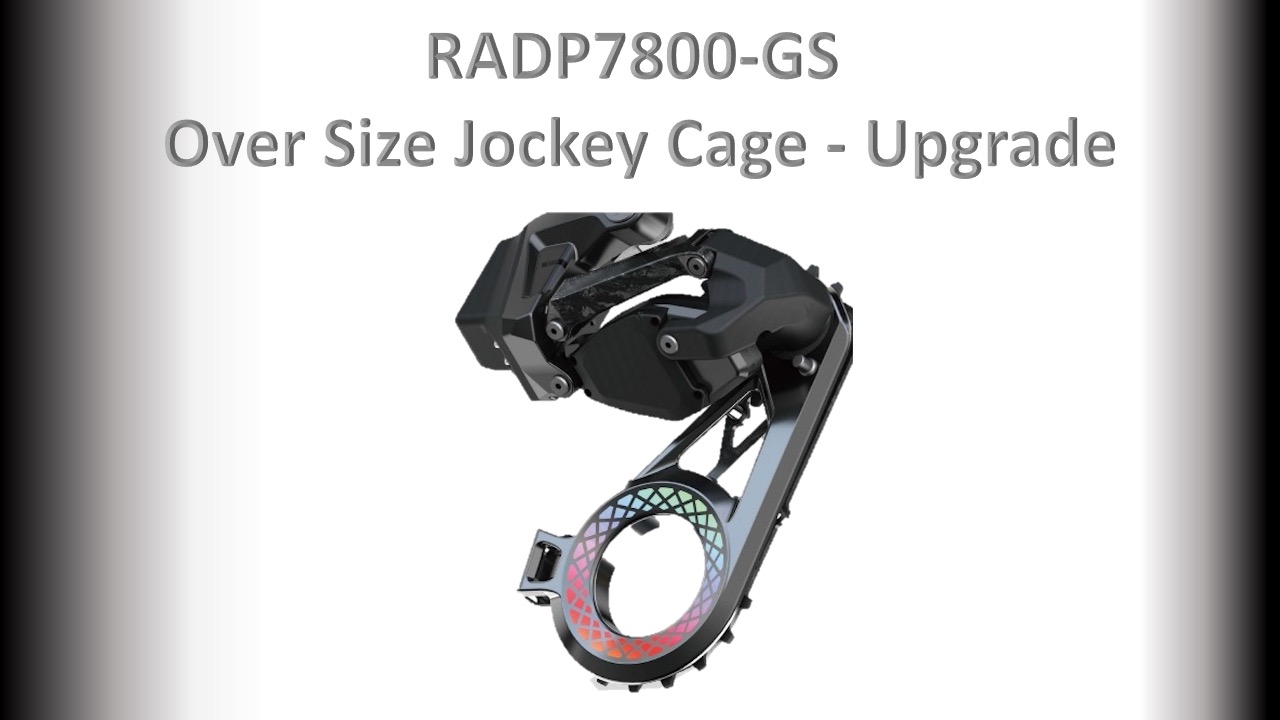

Your electronic group set should be chosen to reflect your style of riding - for road bikes, two options are available - you should for the selected frame choose either disk brake version or cable brake versions - if you have chosen a Gravel frame bike you should choose a gravel 2x or 1x disk brake version groups

Your Mechanical group set should be chosen to reflect your style of riding - for road bikes, two options are available - you should for the selected frame choose either disk brake version or cable brake versions - you can also choose - 10s, 11s, 12s, our frames can accommodate all speeds , you should also choose weather you going to be using hydraulic brakes or cable brakes, all our frames are hydraulic brakes.

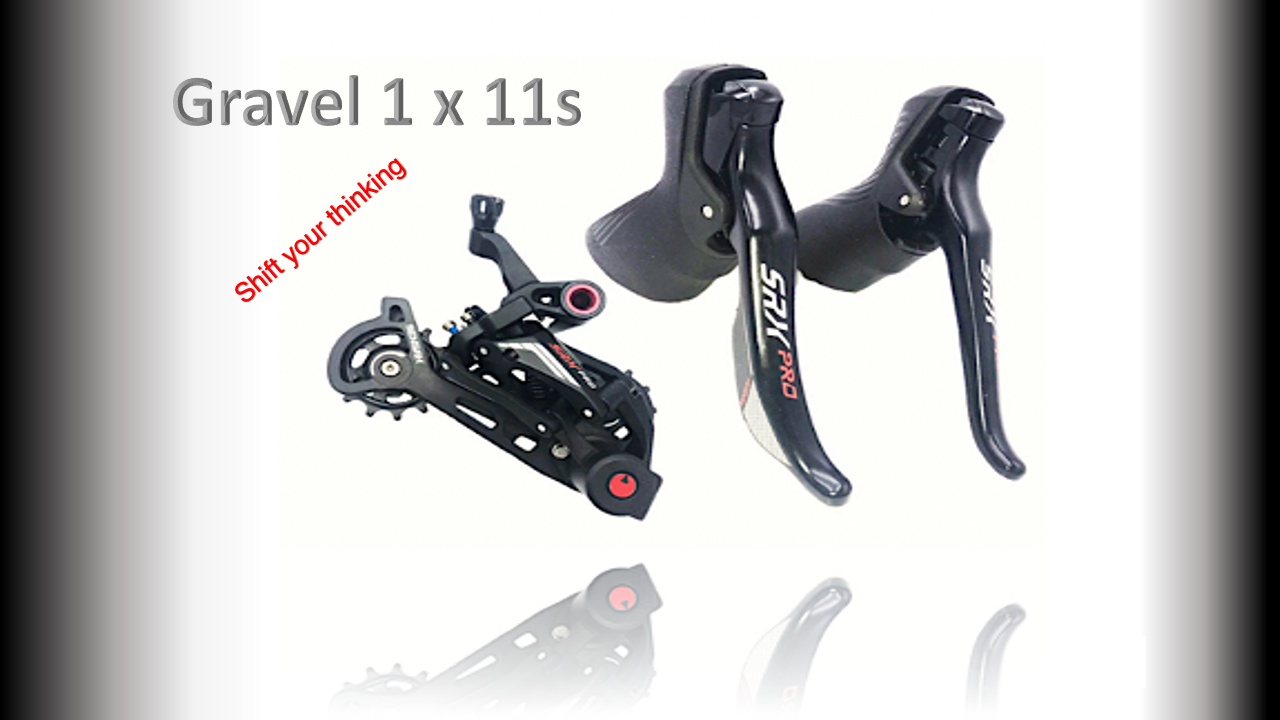

Your Mechanical group set should be chosen to reflect your style of riding - for Gravel bikes, two options are available - you should for the selected frame choose either disk brake version or cable brake versions - you can also choose - 11s, 12s, our frames can accommodate all speeds , you should also choose weather you going to be using hydraulic brakes or cable brakes, all our frames are hydraulic brakes.

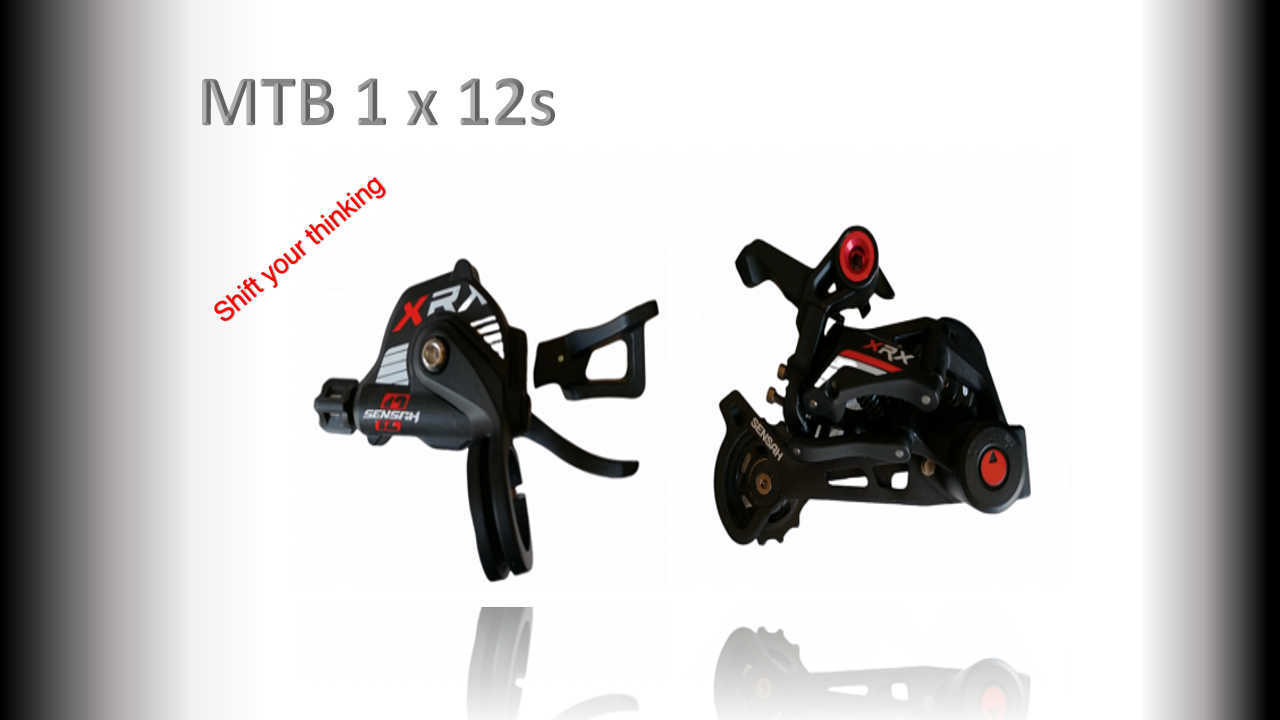

Your Mechanical group set should be chosen to reflect your style of riding - for Mtb bikes, two options are available - you can also choose - 11s, 12s, our frames can accommodate all speeds. The groupsets are either 2x11s, 1x11s, 2x12s, 1x12s. Brakes on MTB groupsets are totally separate parts to be bought separately

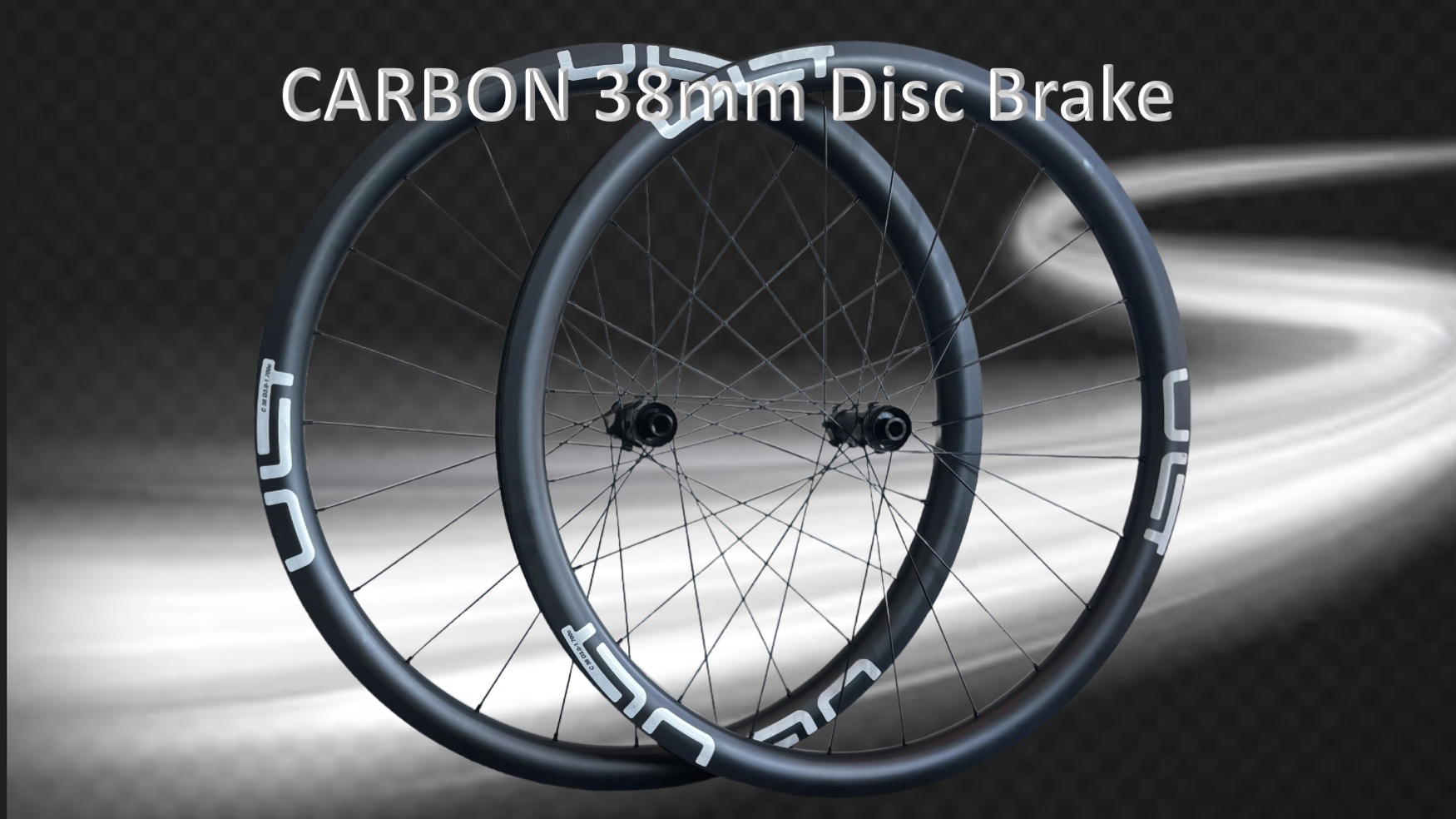

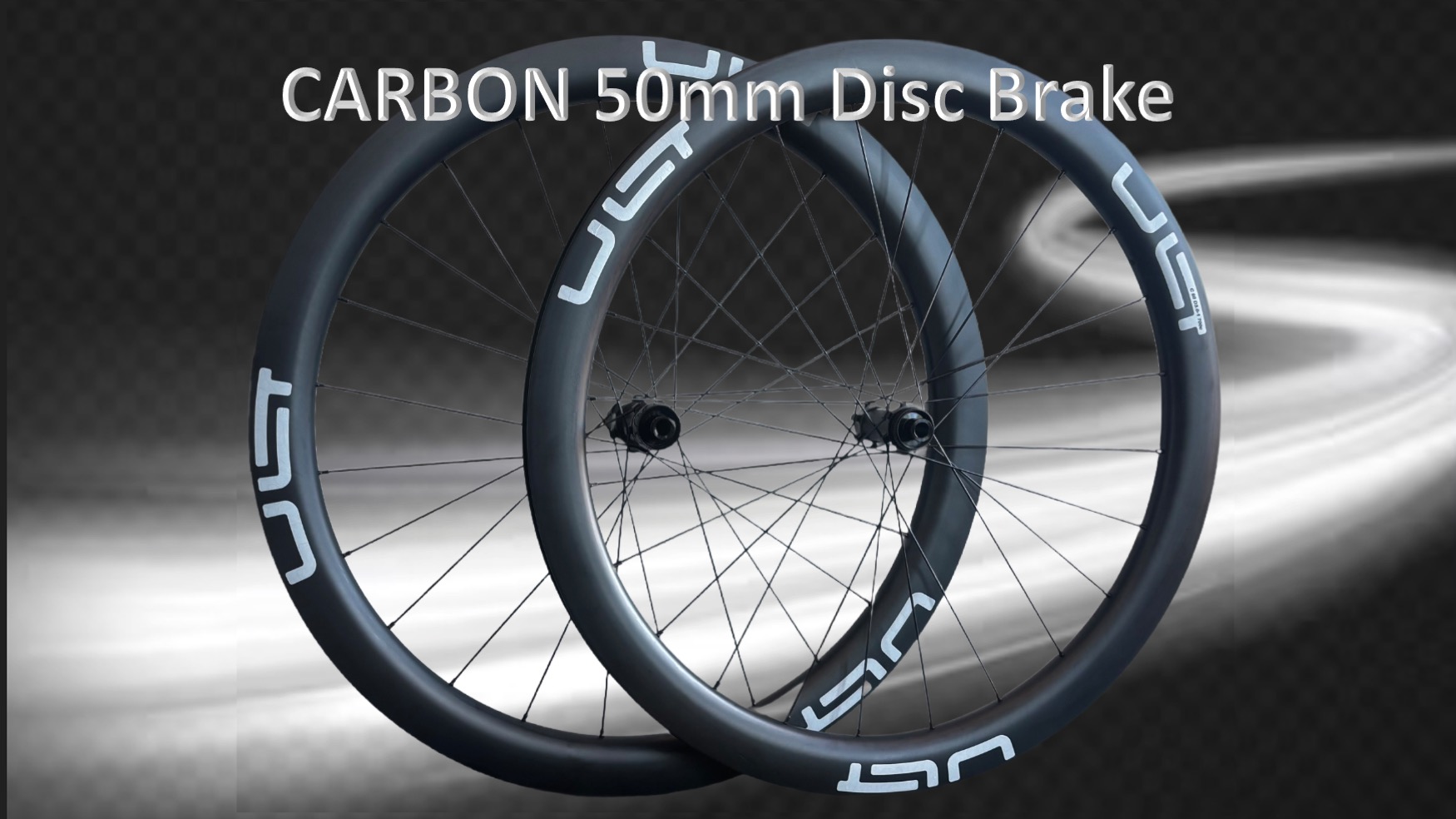

Our wheel sets suit both Road and Gravel. They are all both in through Axel and Quick Release. For Both Road and Gravel Frames from Raceworx our frames use through Axels. Your selection can be either Aluminium (Economical) or full carbon, the carbon and profile depth are your choice, all our wheels can take up to 45c tyres, the wheels are all tubeless ready.

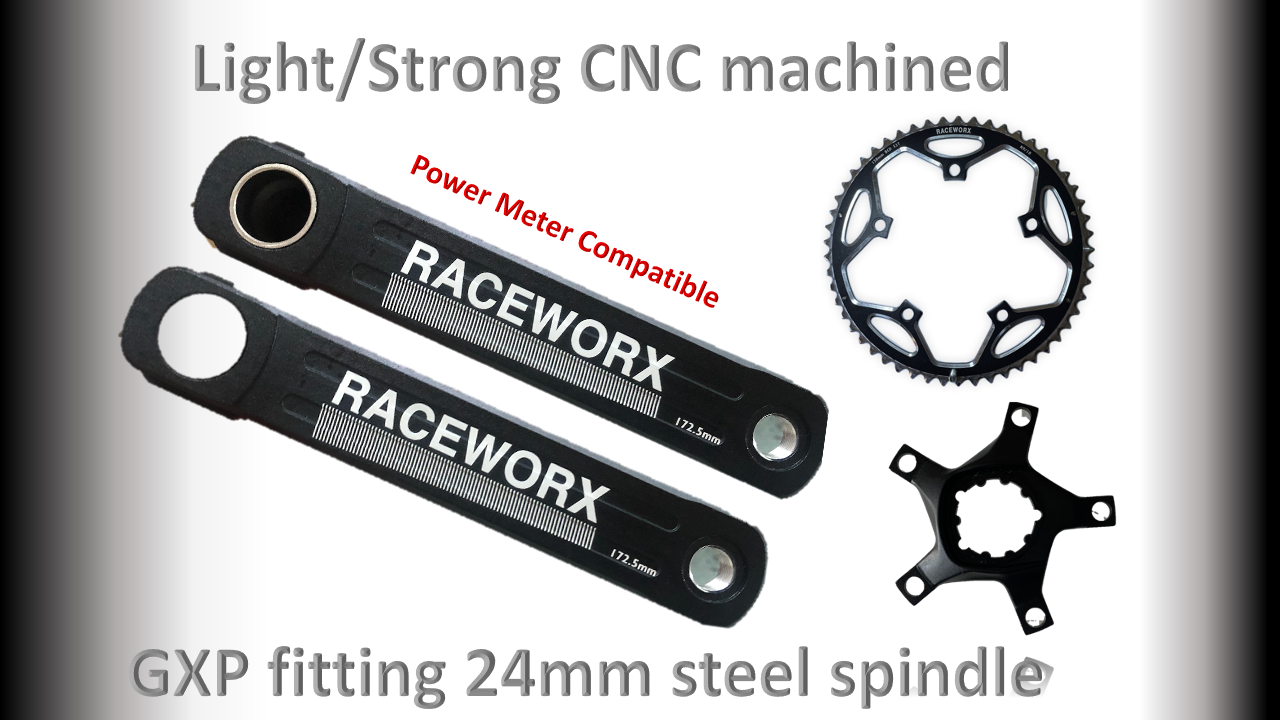

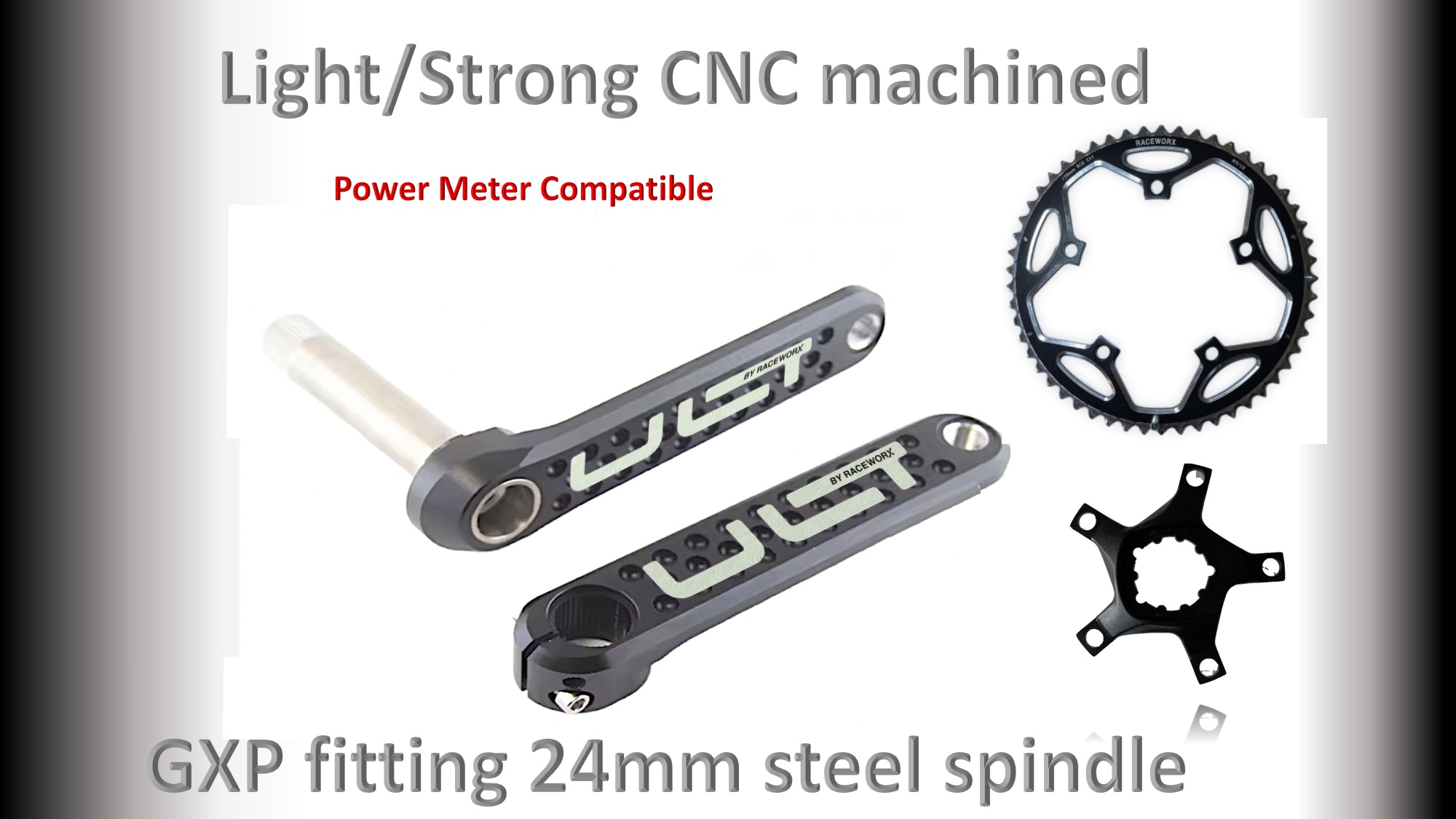

Our cranks come in various levels for road cycling frames, they start with our economical range, ULT range both in Aluminium and are in various lengths. You can also Carbon cranks for excellent stiffness and weight advantage and also comes in various crank lengths. The cranksets are both compatible for Gravel and Road bikes. The crank sets are all 3 bolt GXP fitting for easy power meter fitting or convertor spyder in 100bcd and 130bcd. You can also fit a direct chainring onto the GXP fitting

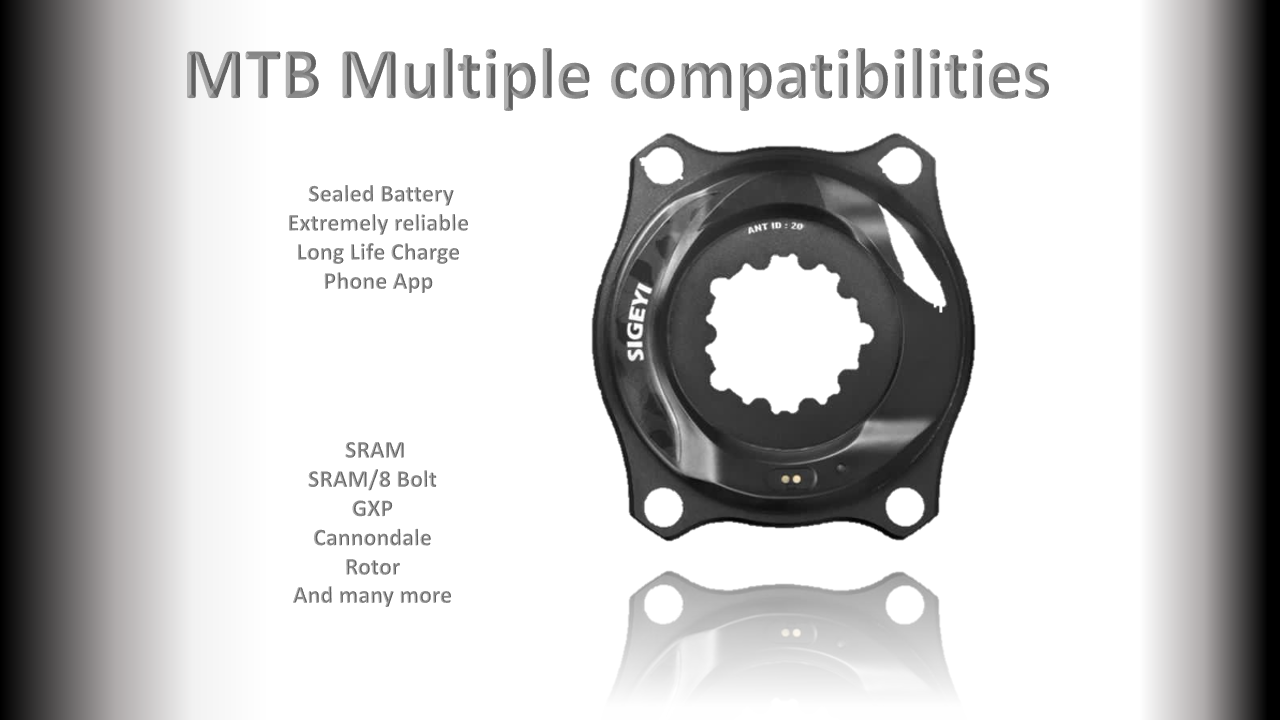

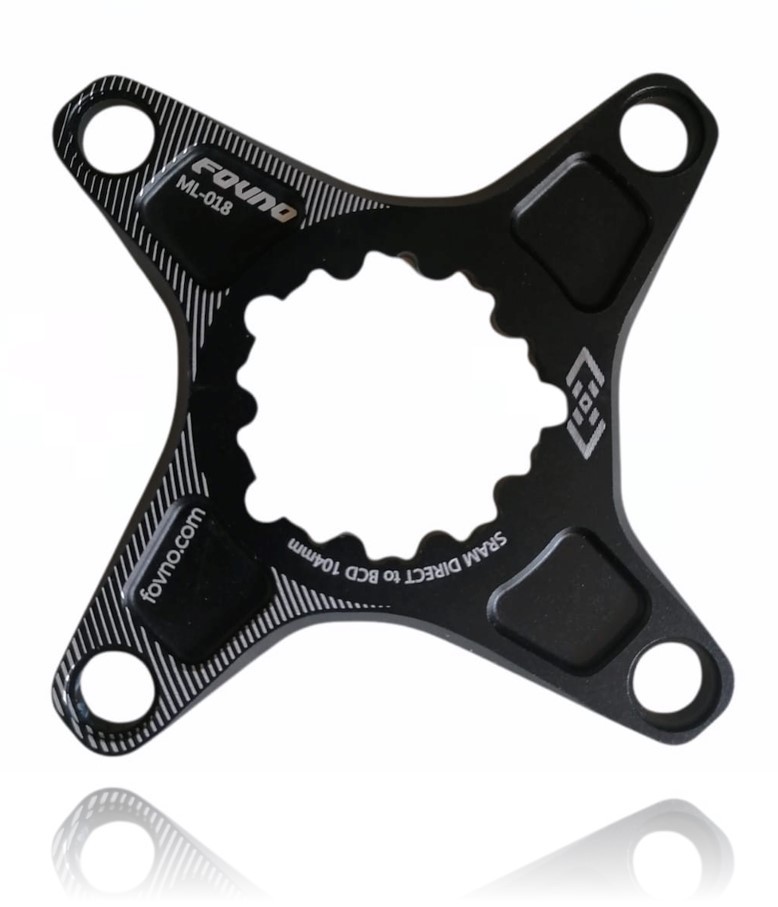

Our cranks come in various levels for MTB cycling frames, they are in various lengths. The cranksets are both compatible for Gravel and Road bikes. The crank sets are all 3 bolt GXP fitting for easy power meter fitting or convertor spyder in 96bcd and 104bcd 4 bolt. You can also fit a direct chainring onto the GXP fitting

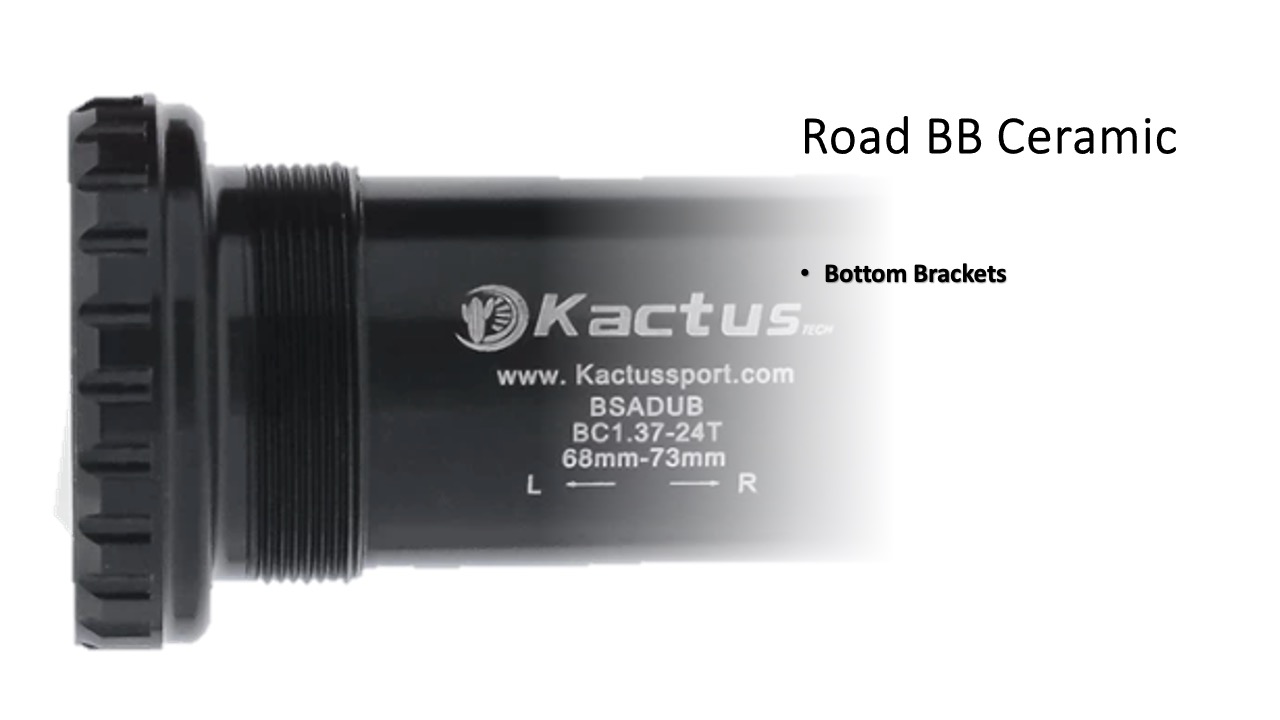

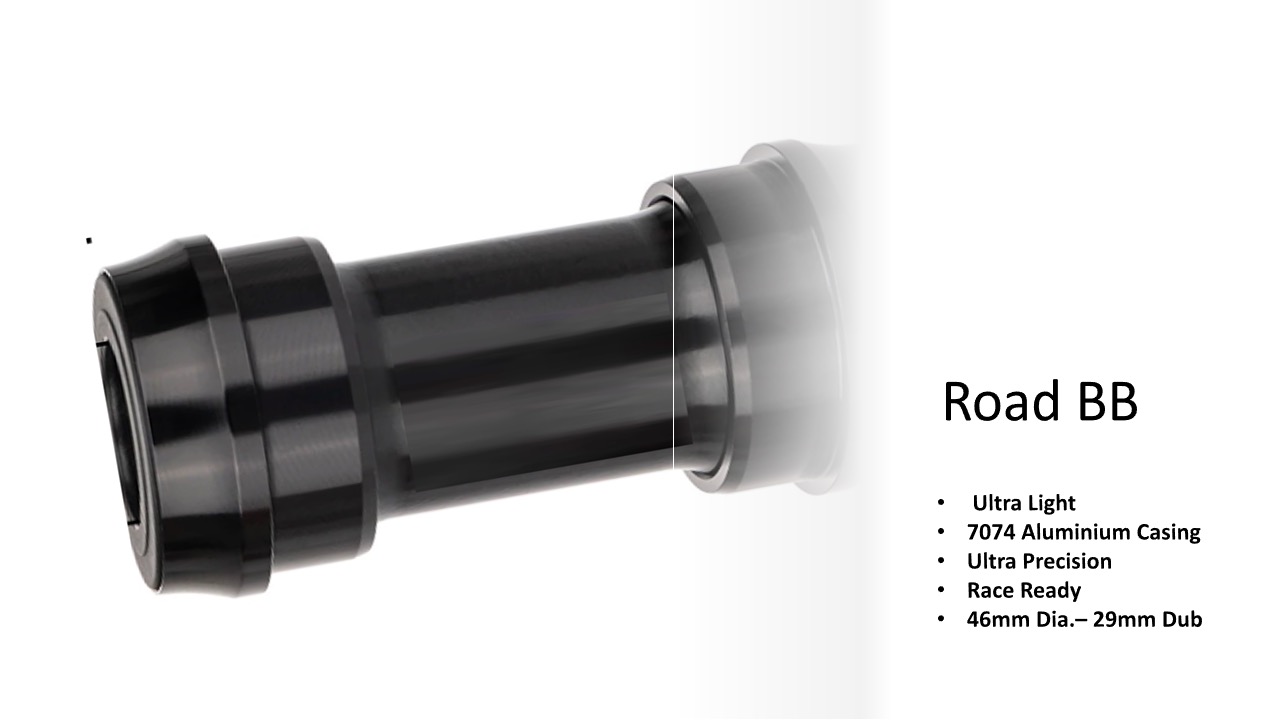

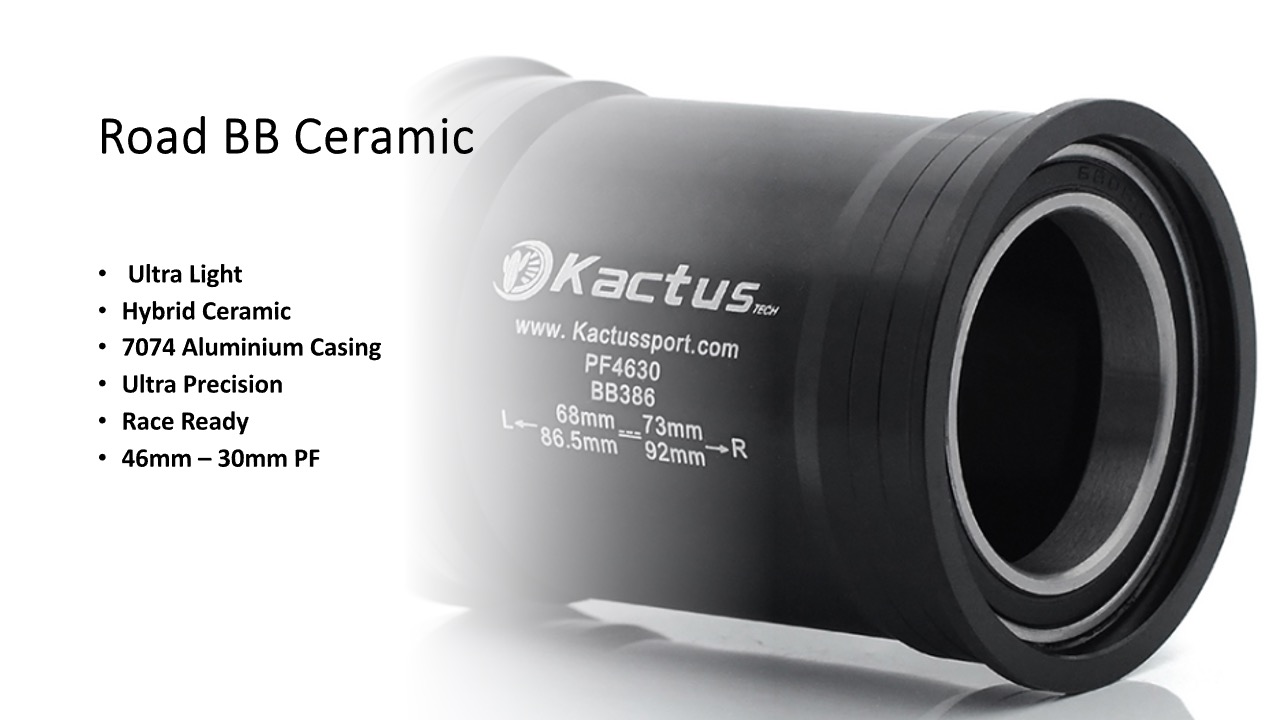

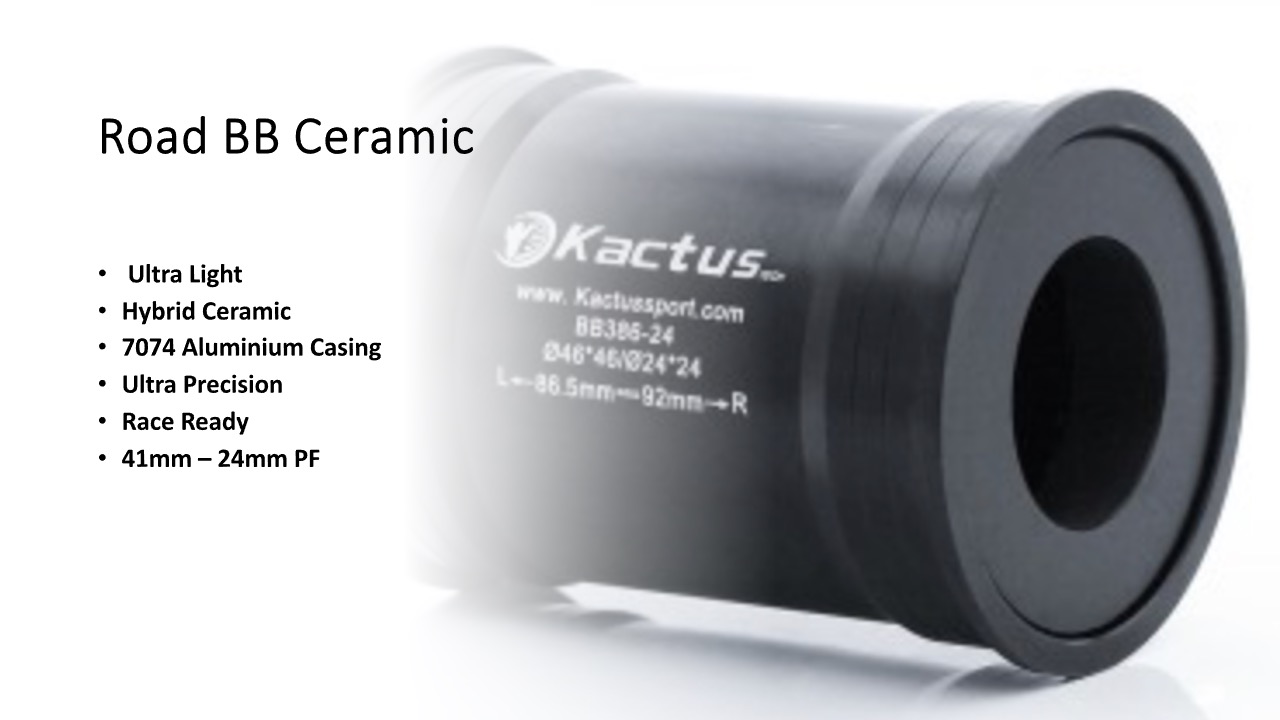

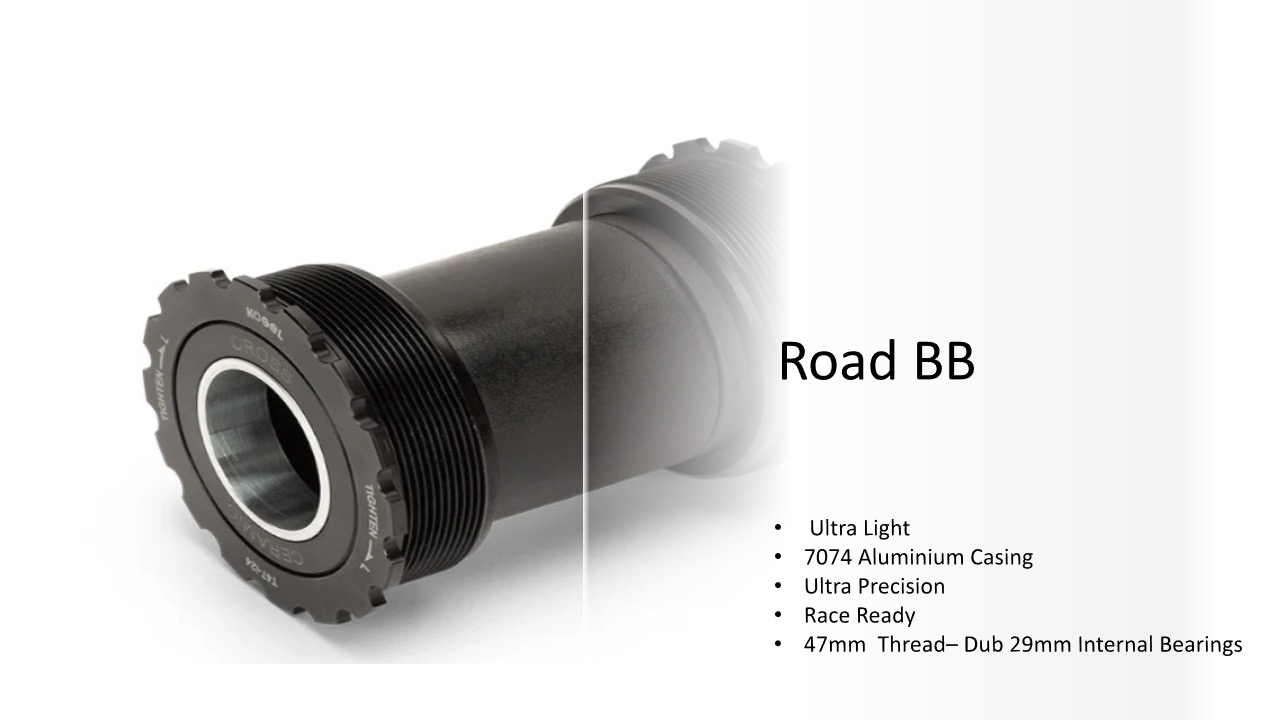

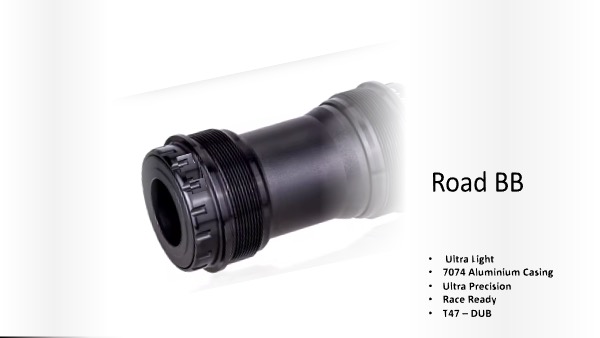

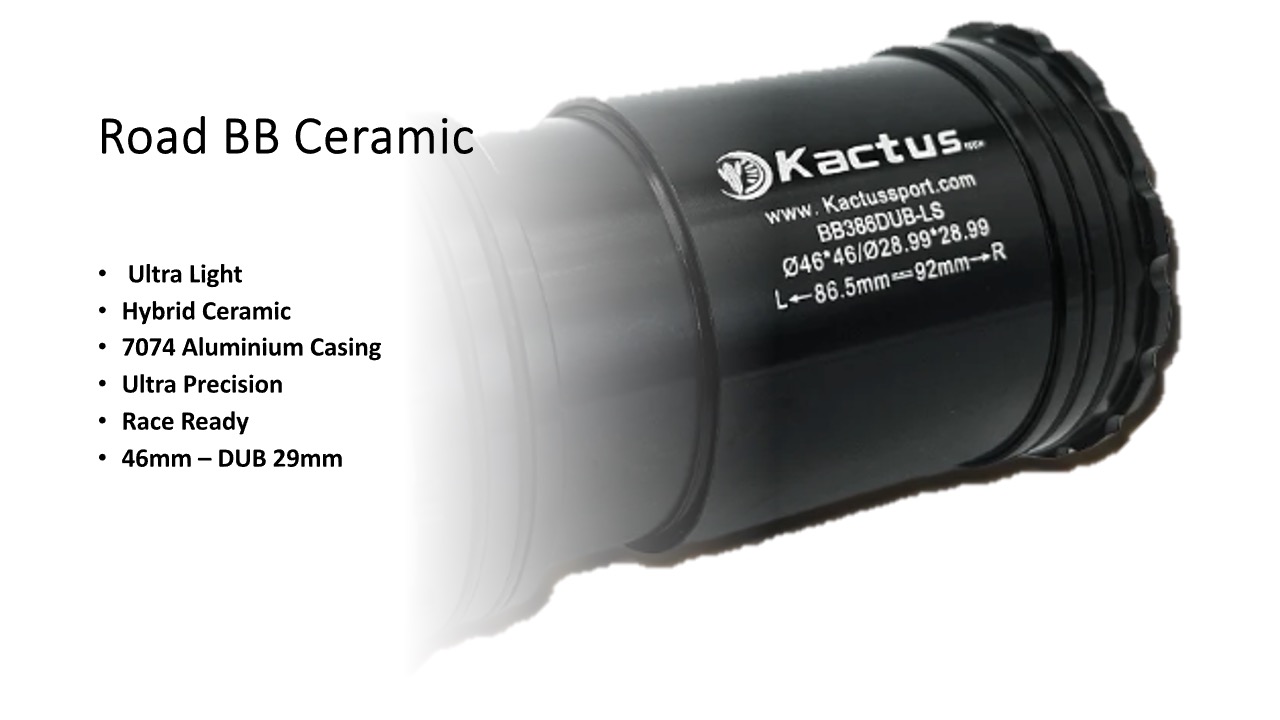

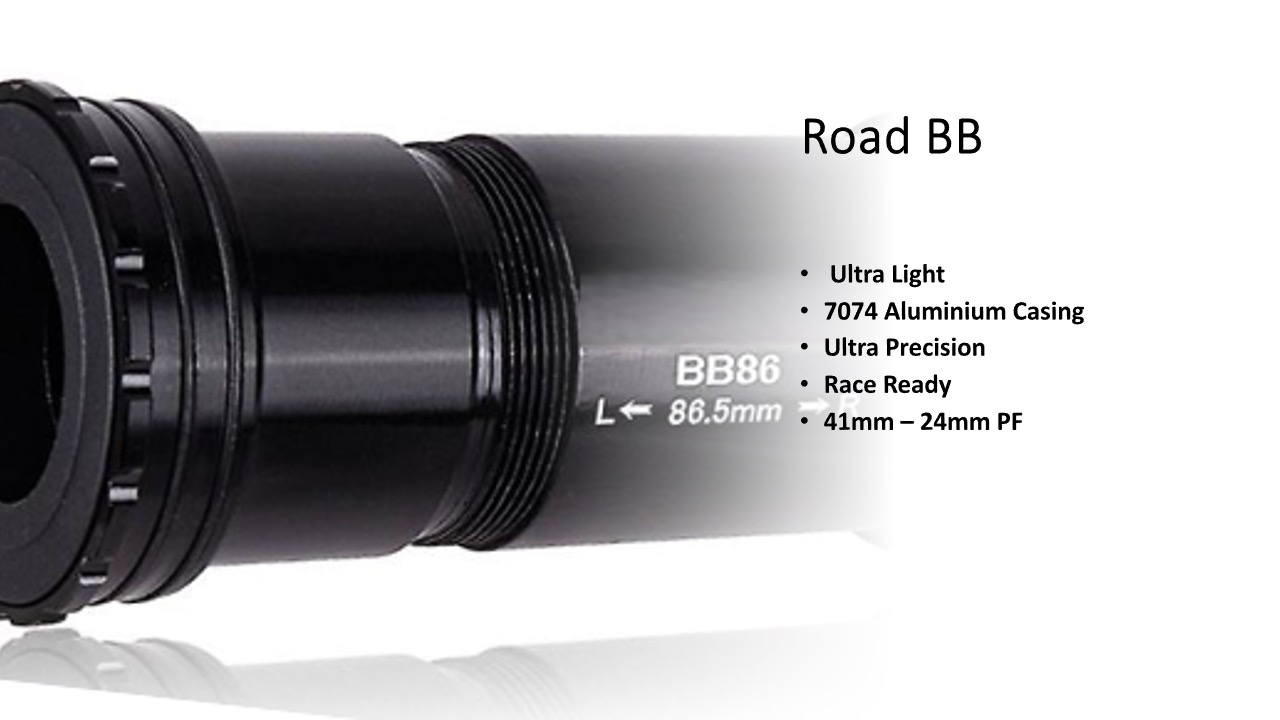

When choosing the bottom bracket, be aware to choose the BB that will fit the chosen frame. Some of our frames are T47 and some BSA. The internal diameter should also be selected with the crank spindle diameter, our cranks are both 24mm and 29mm DUB.

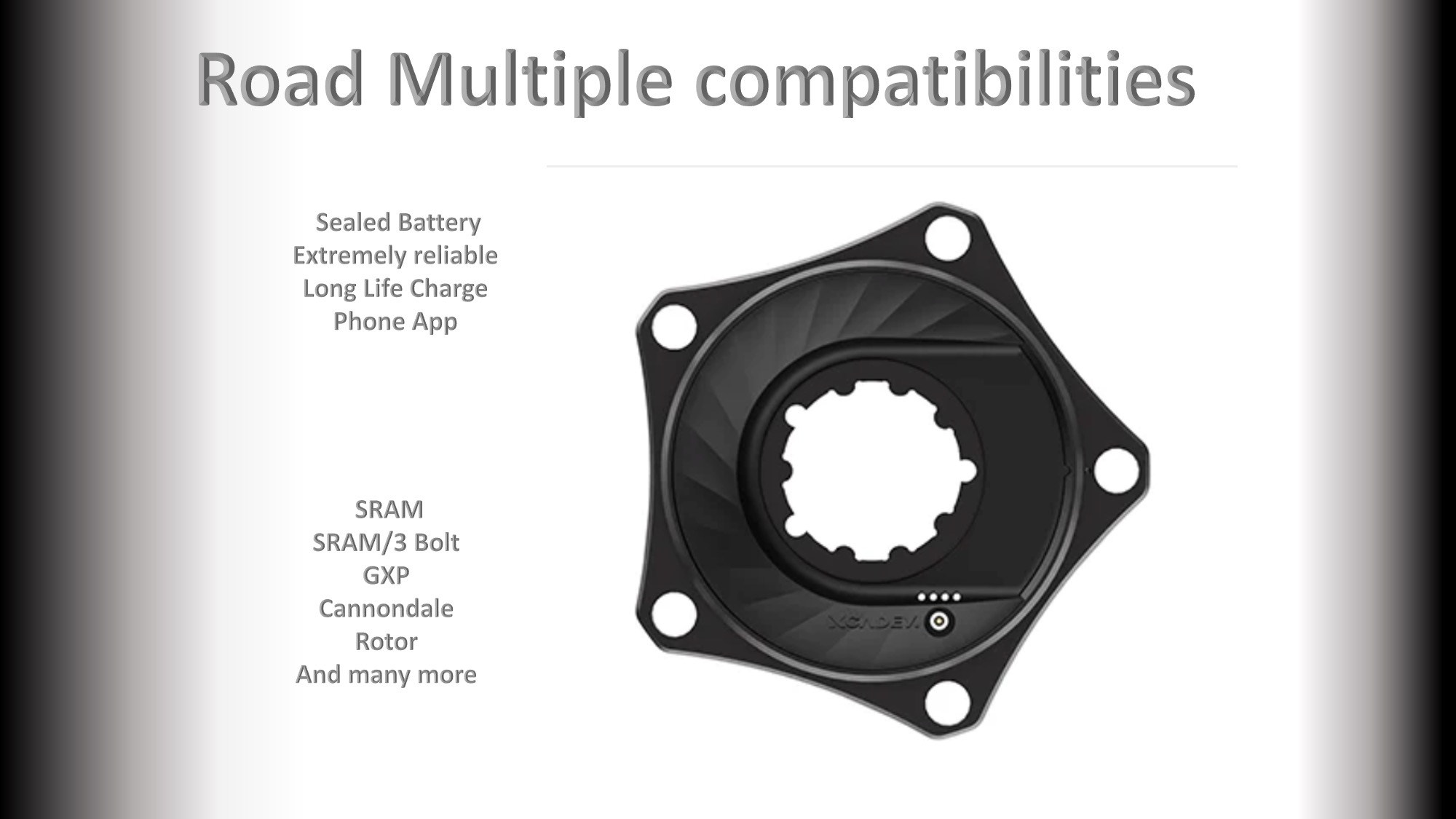

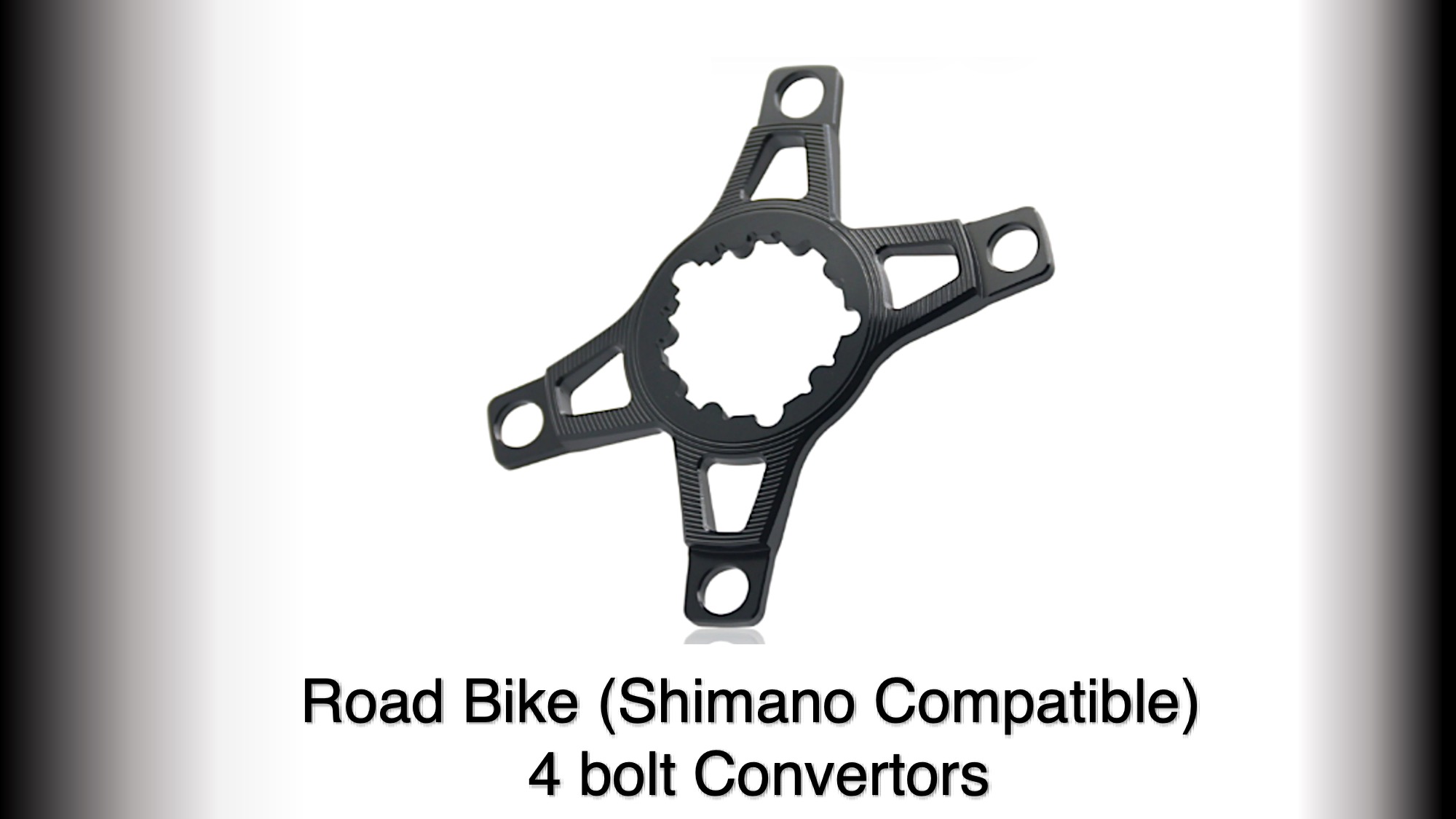

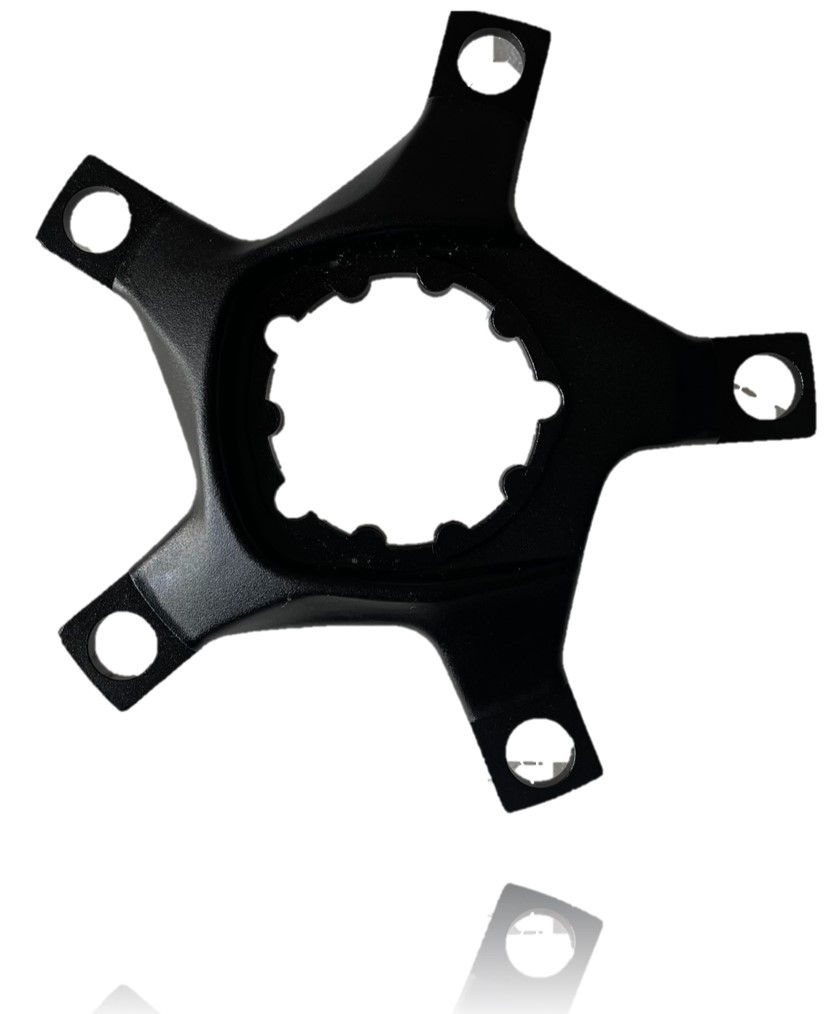

For road frames choose a convertor or power meter, for Road frames choose 110bcd 5 bolt or 130bcd 5 bolt. You only need a power meter or convertor if you are not using direct GXP chainrings

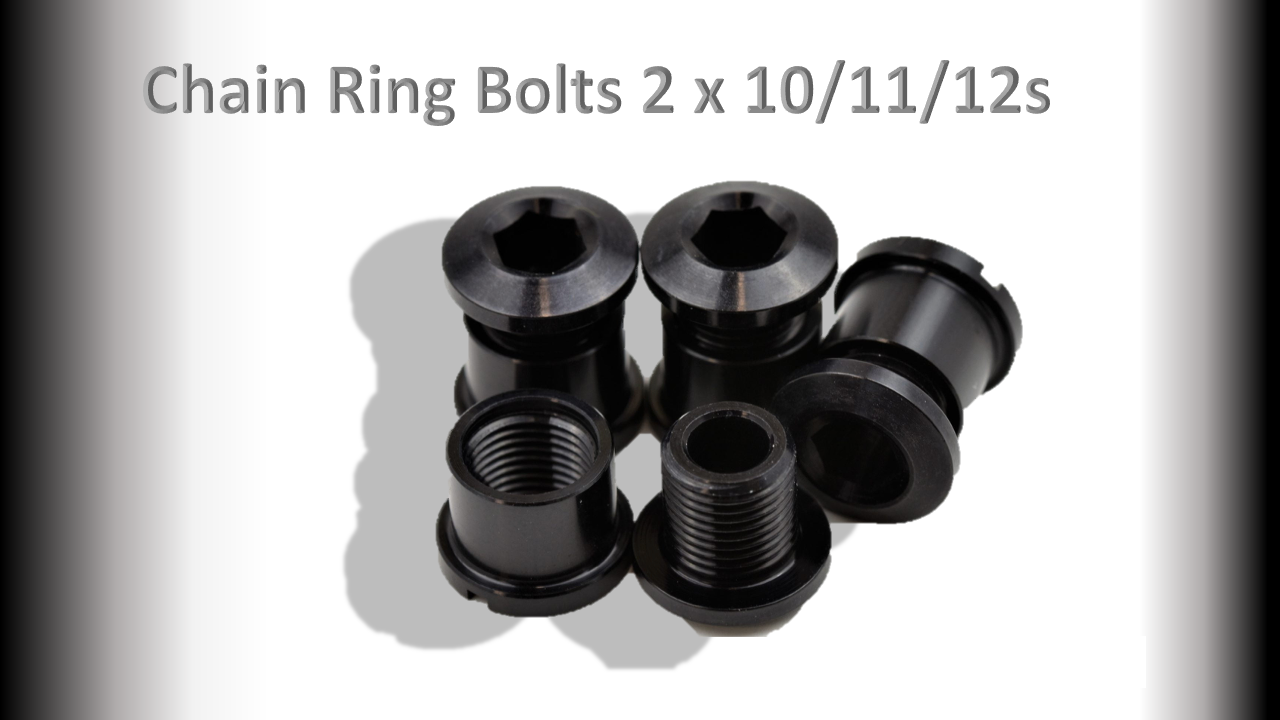

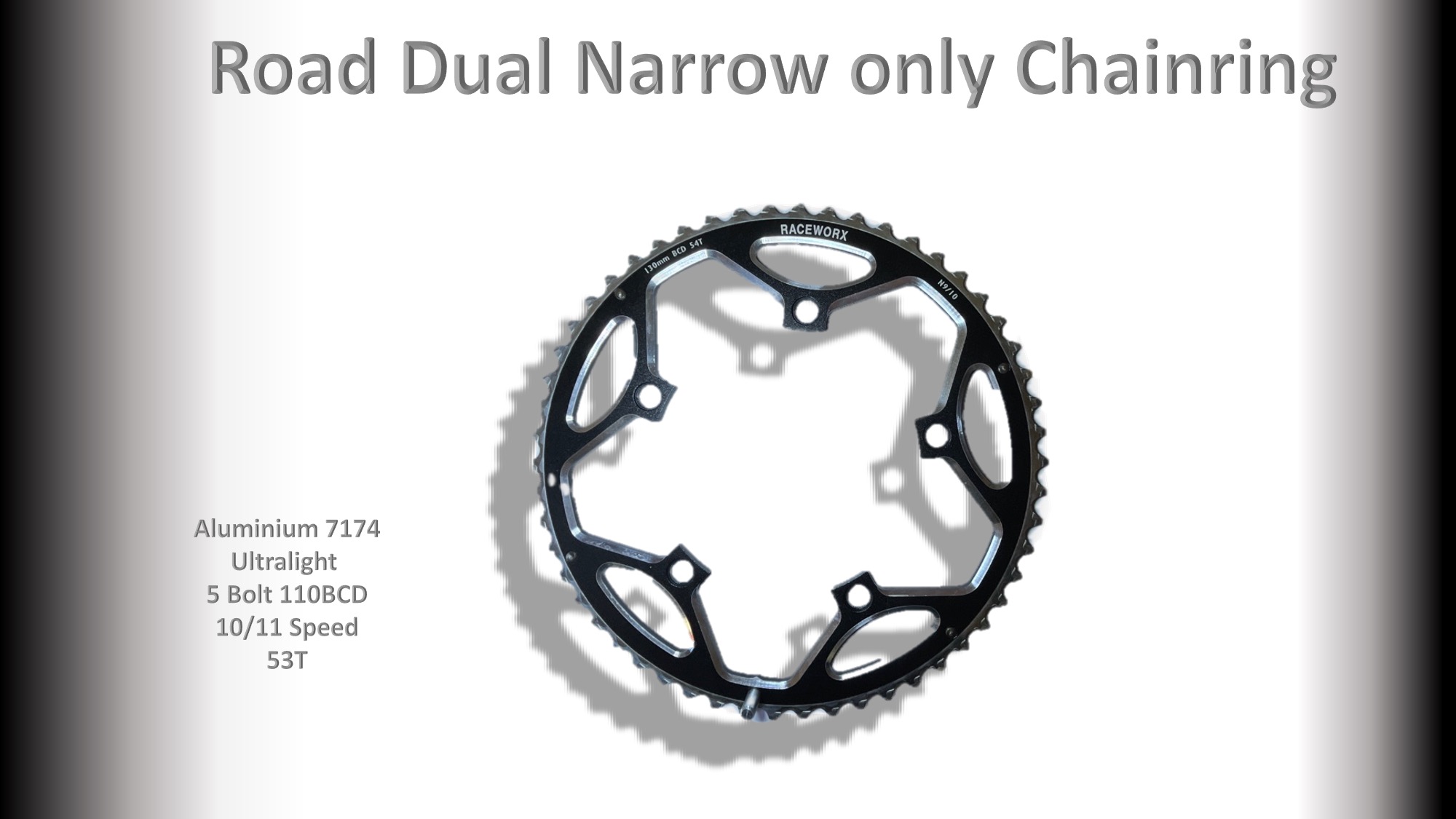

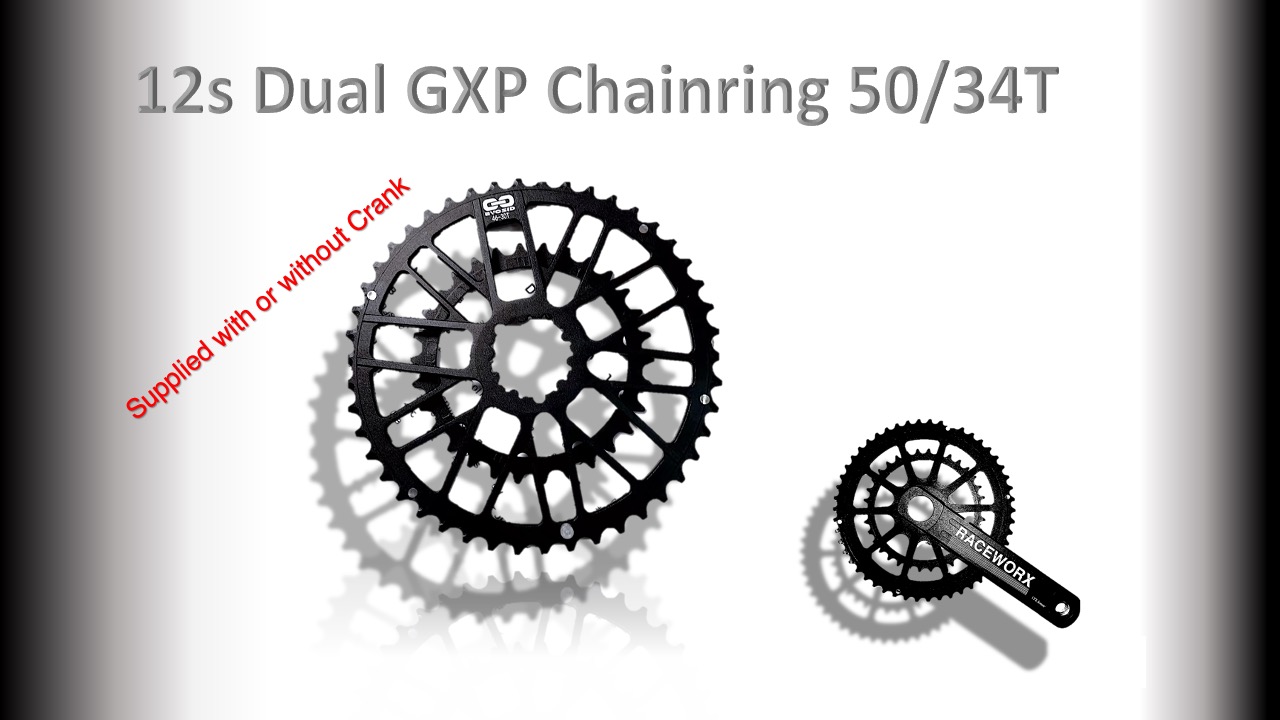

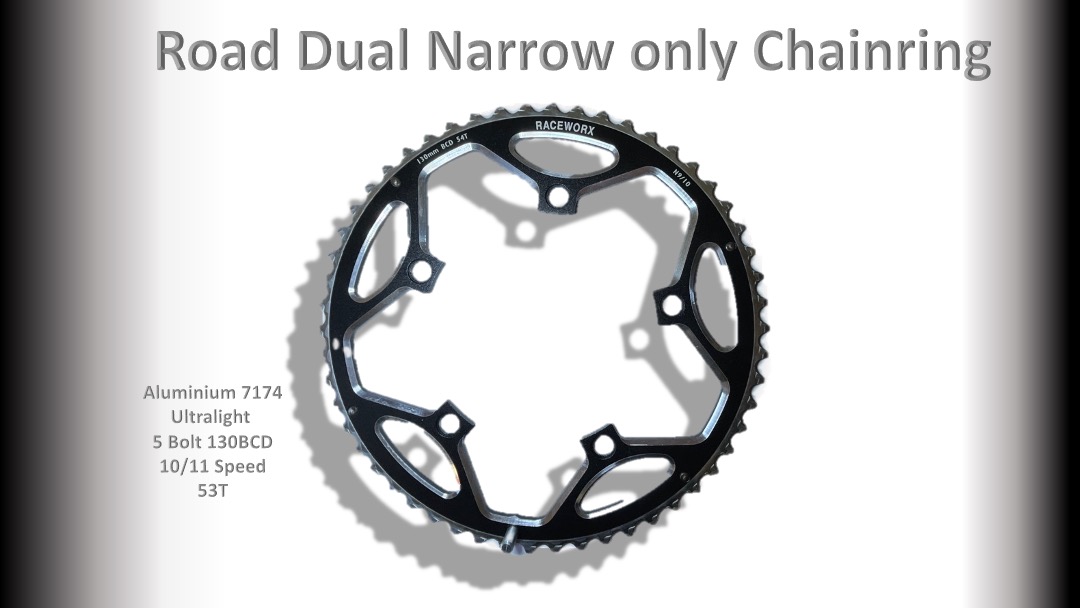

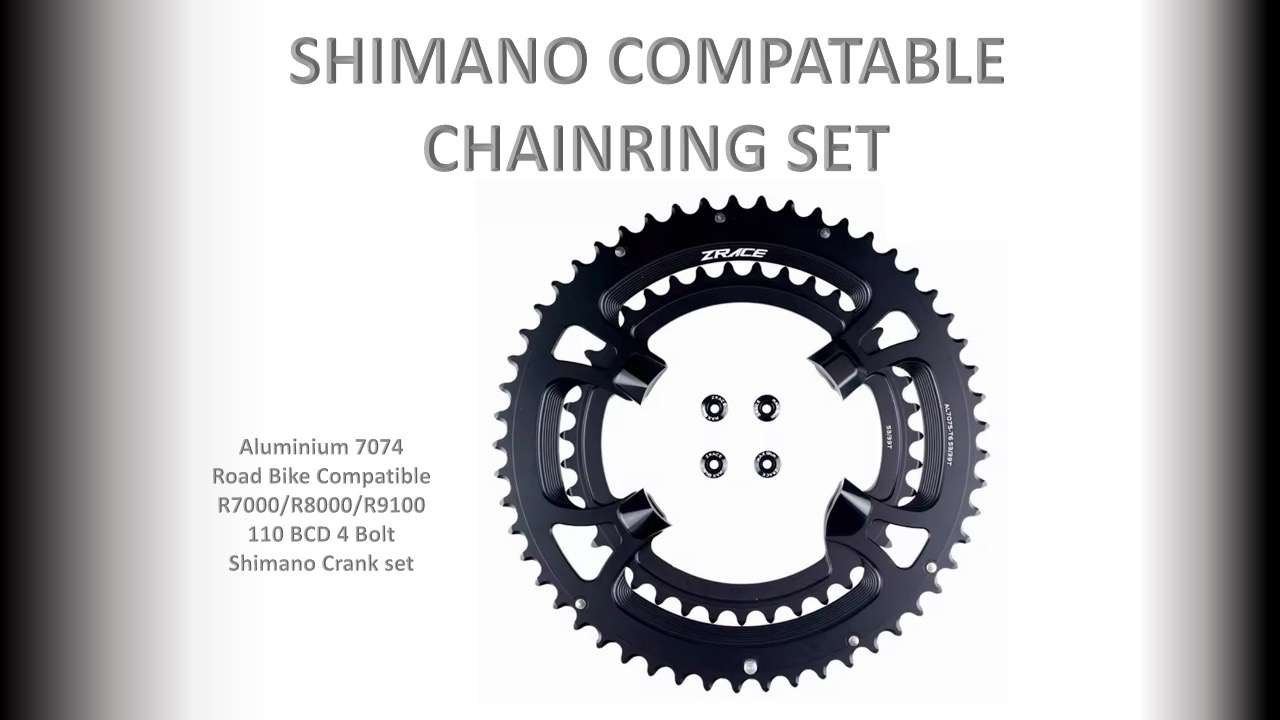

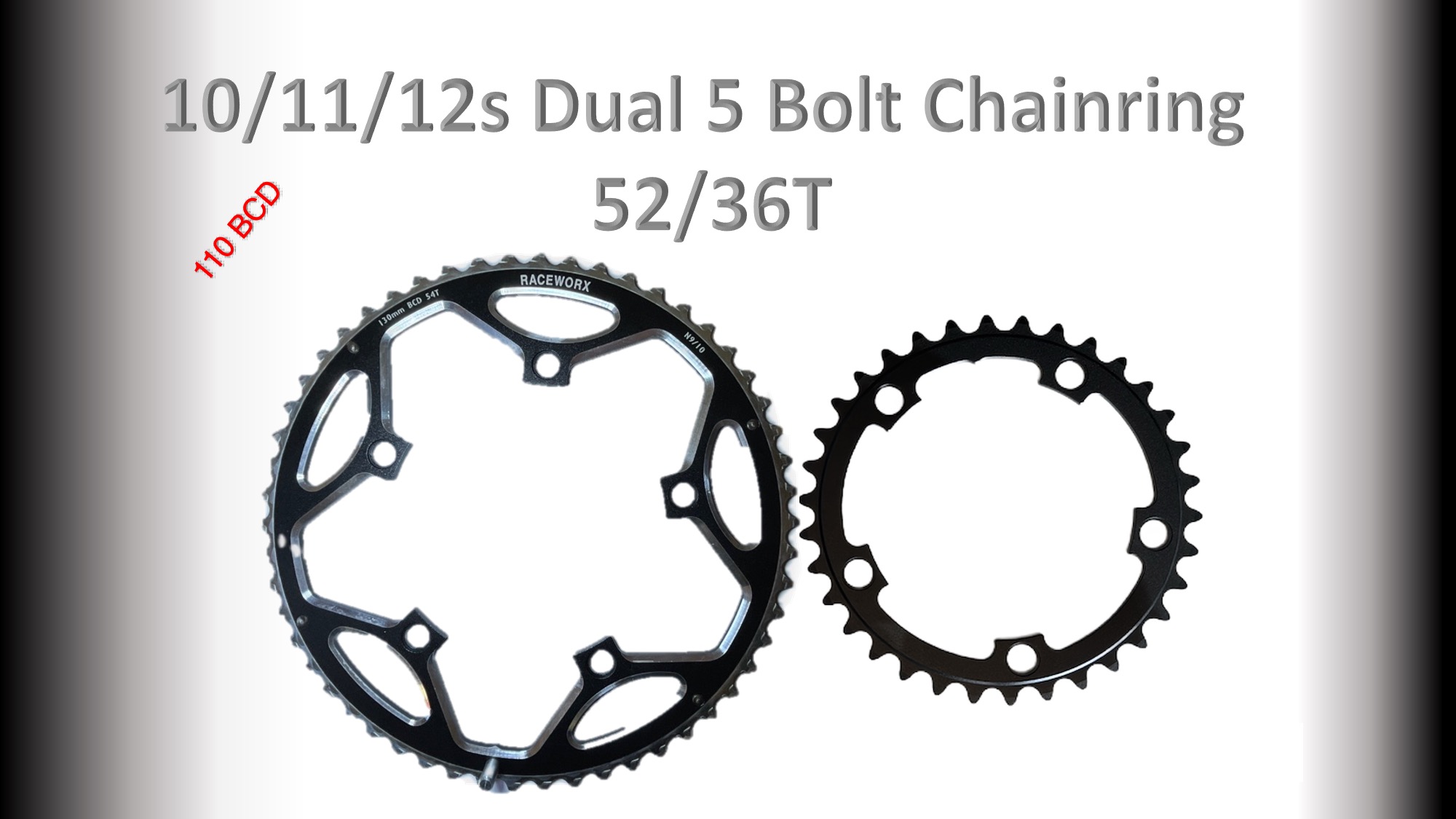

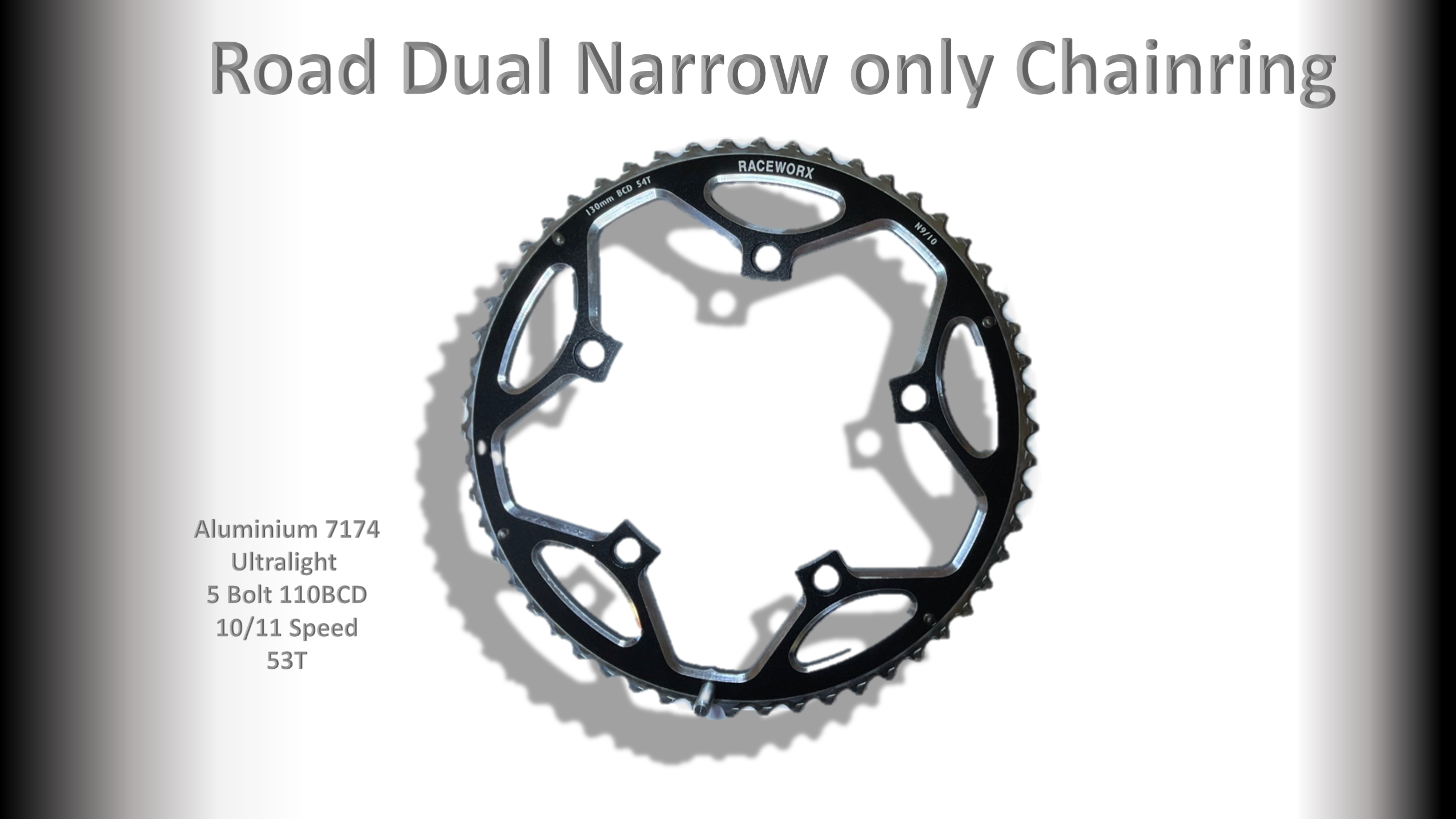

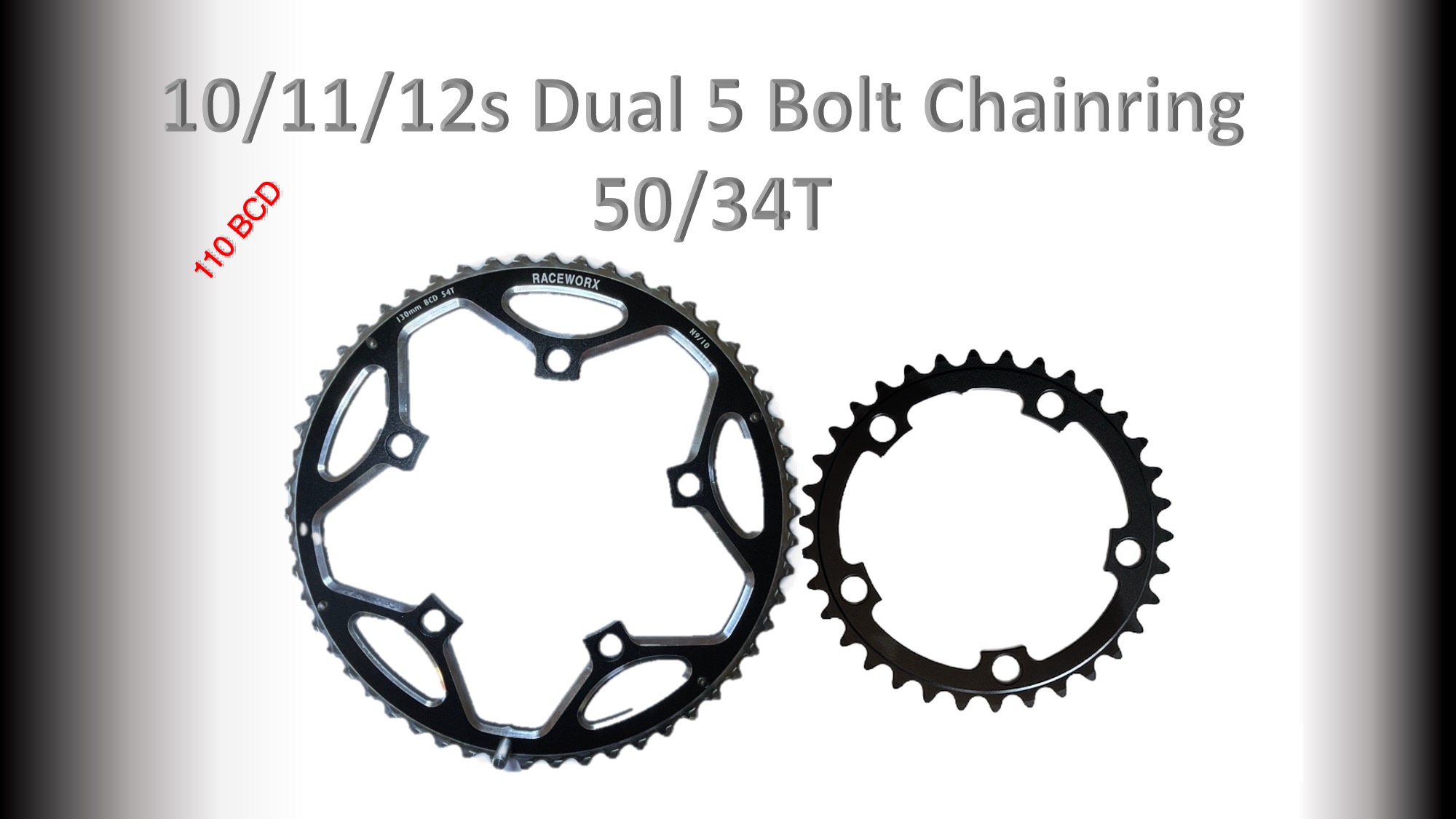

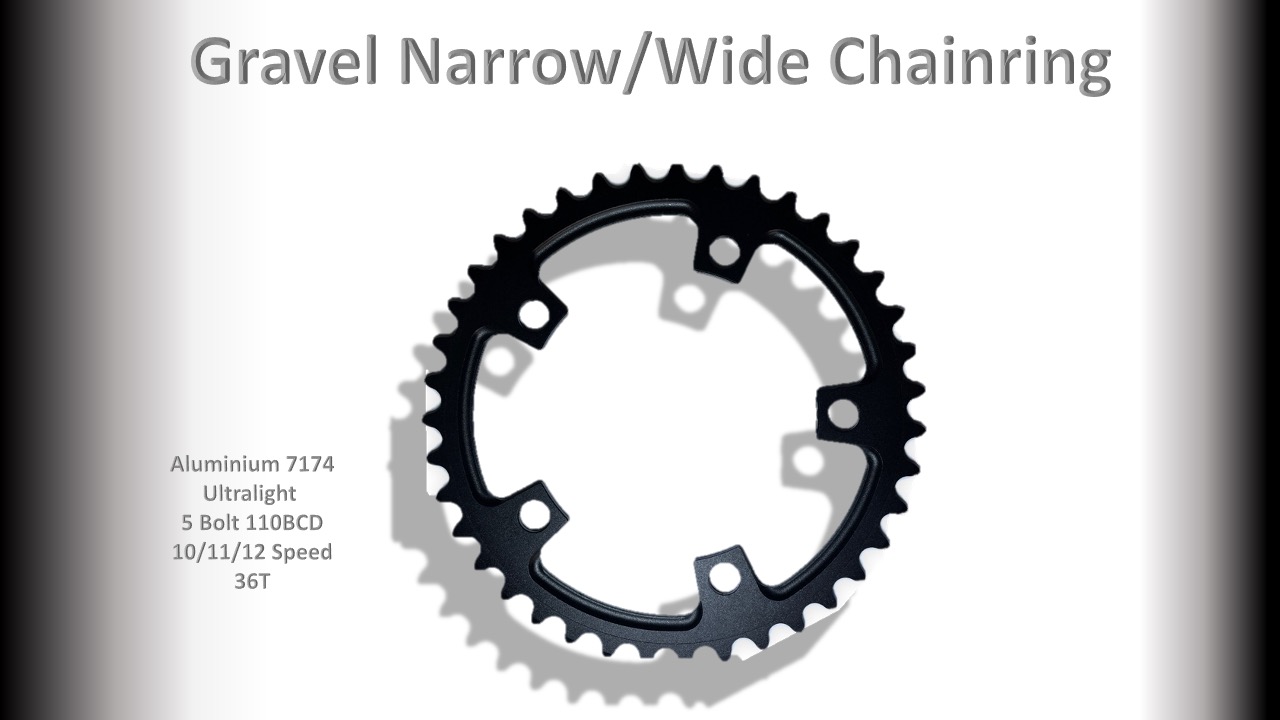

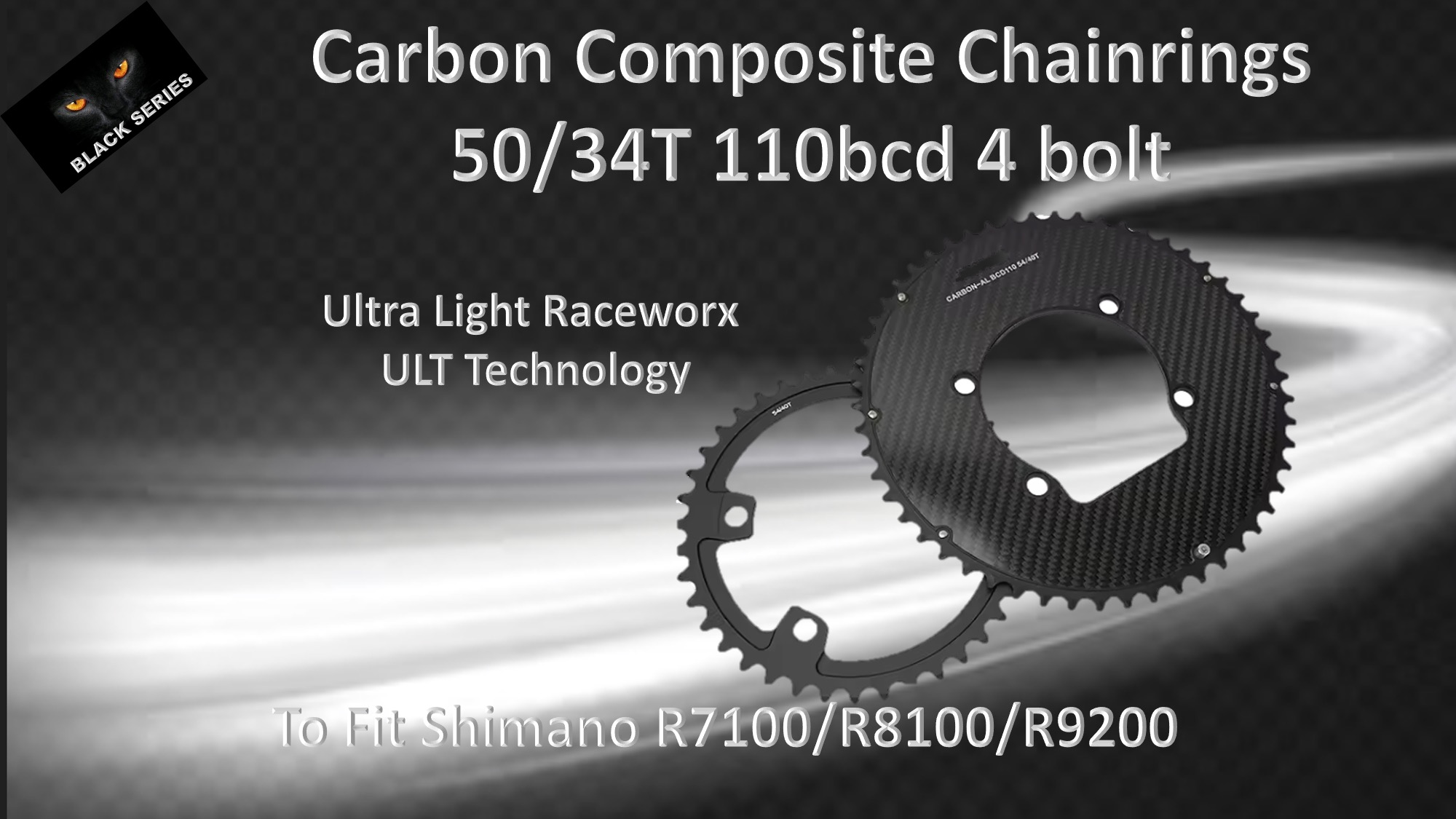

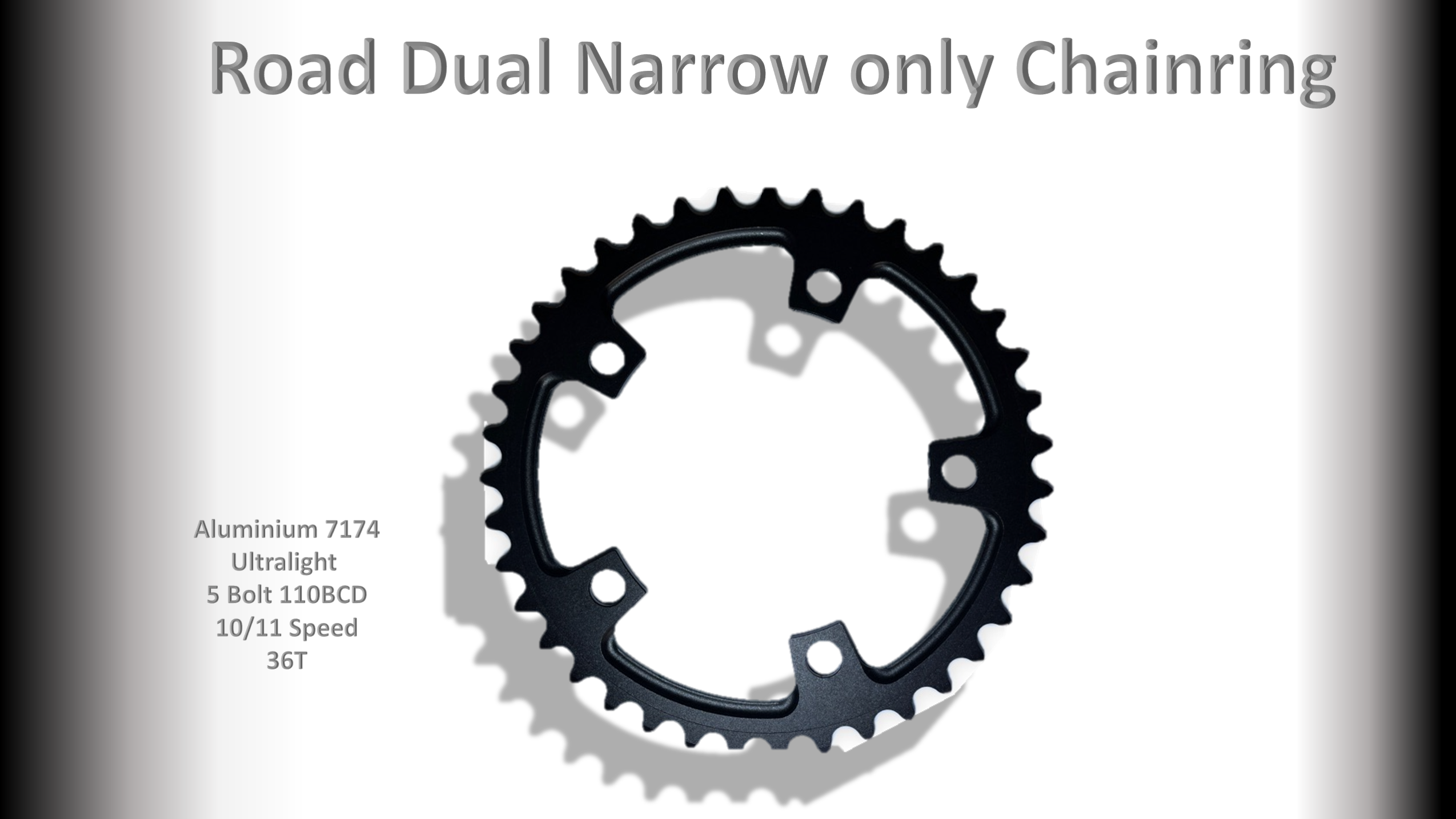

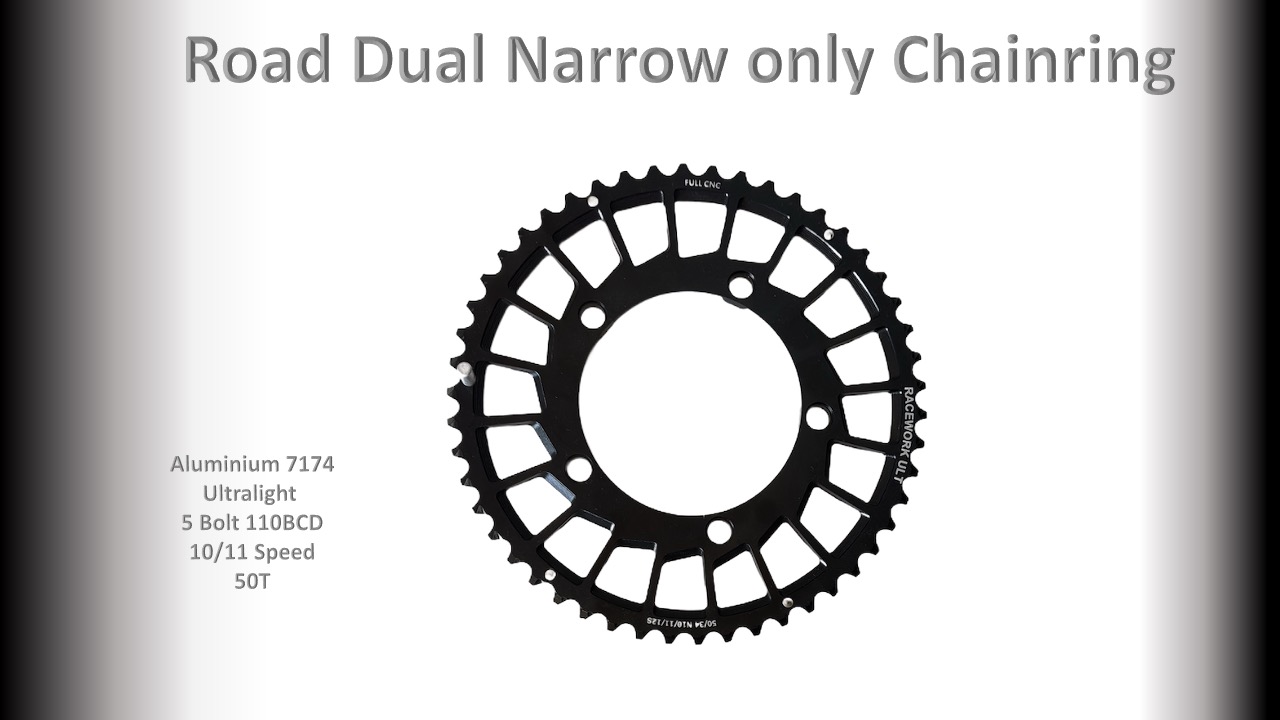

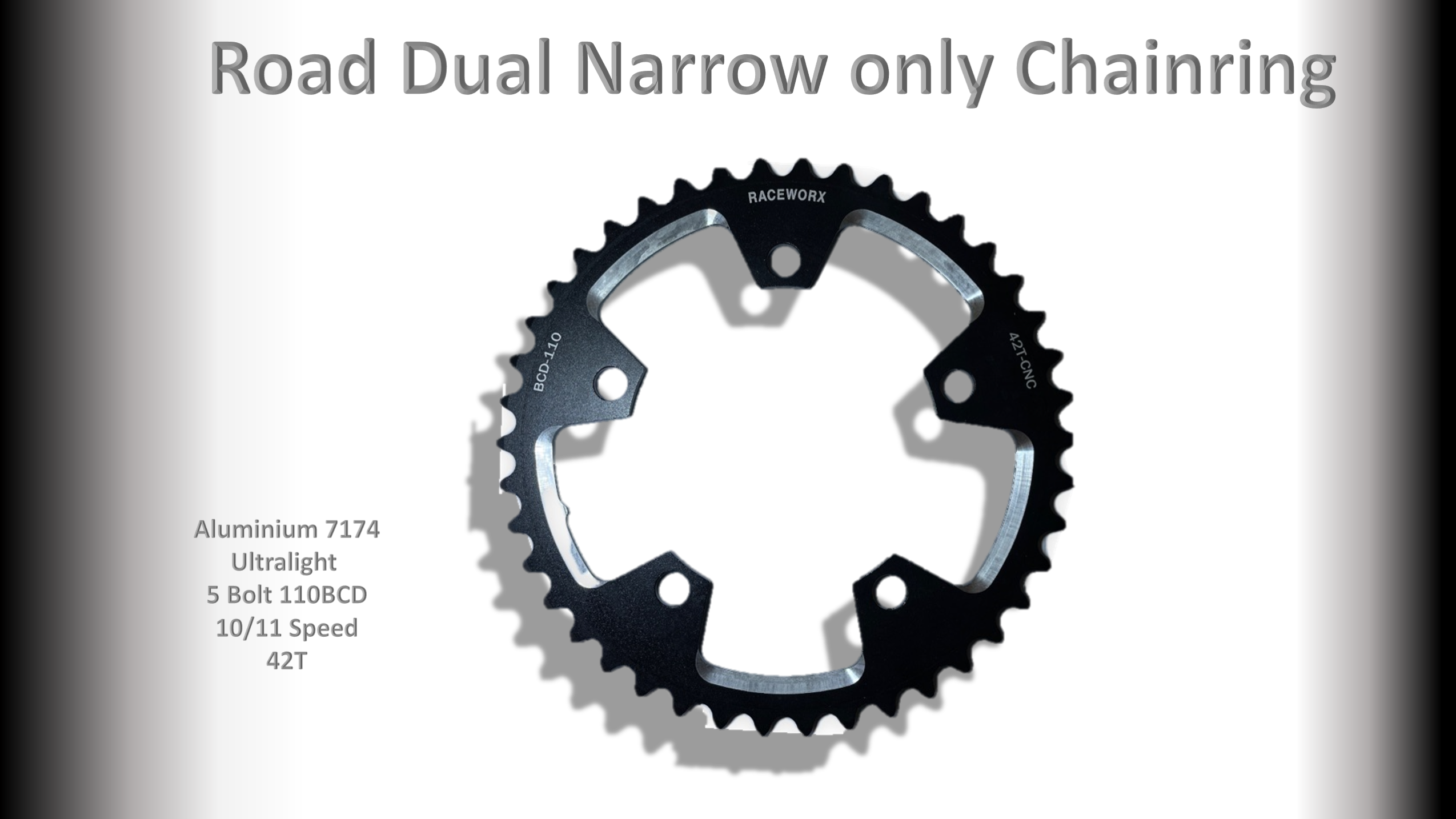

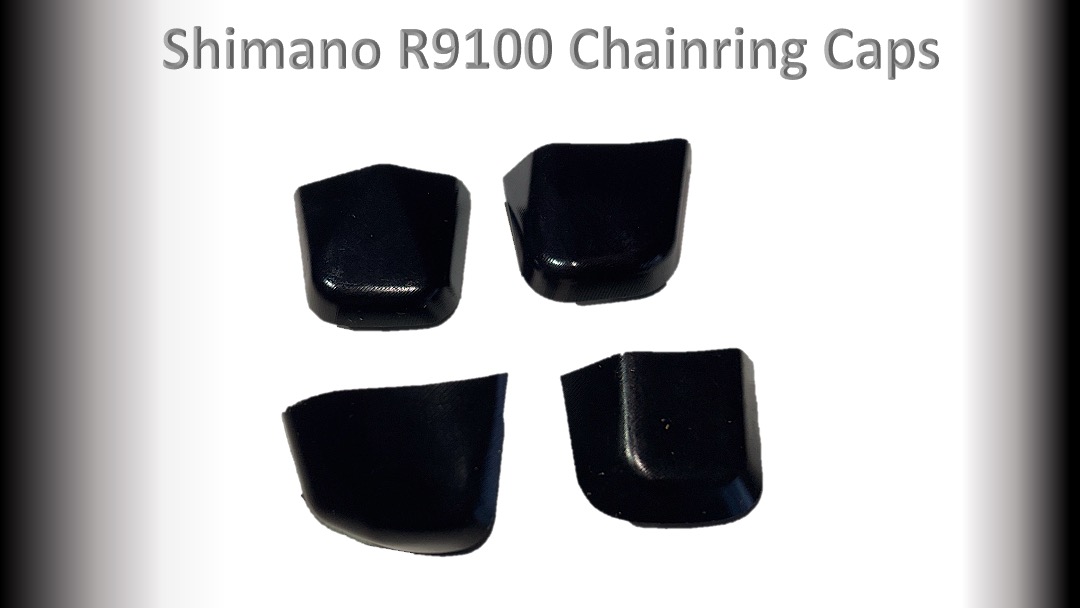

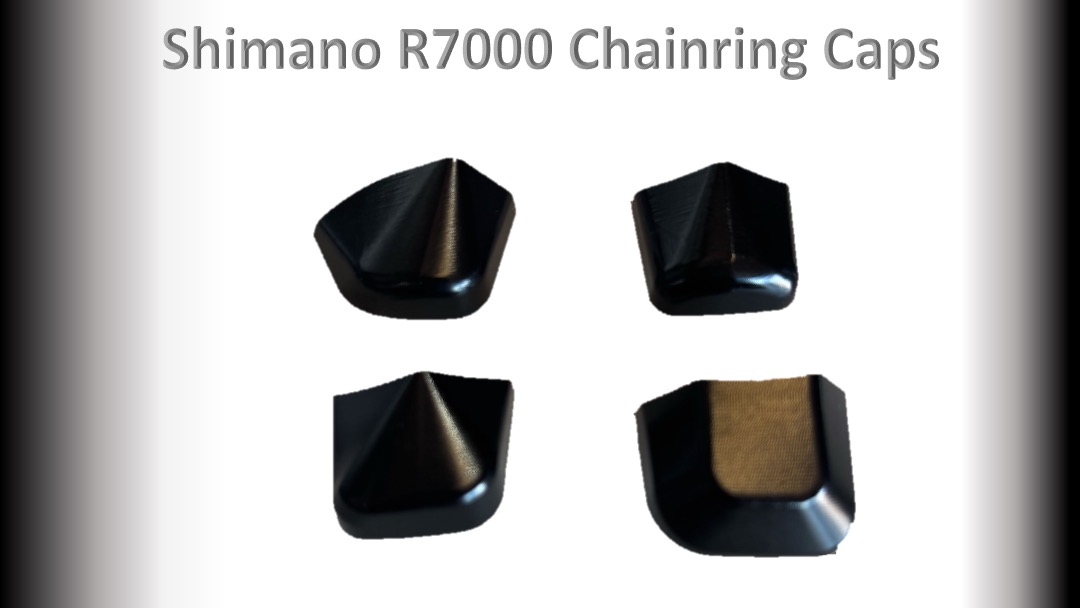

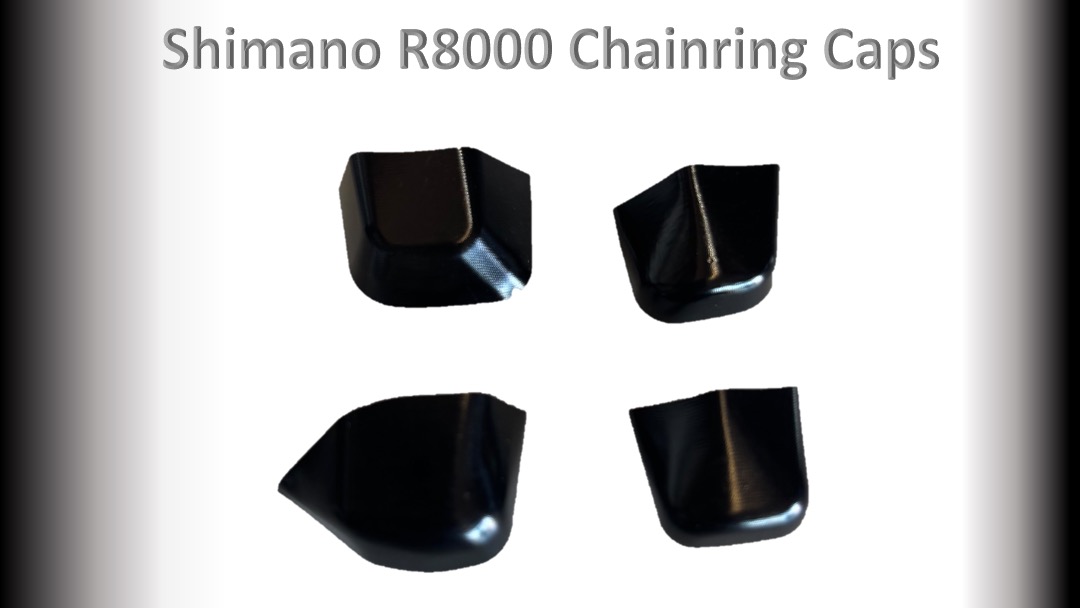

Chainrings have a wide selection - when choosing your desired chainrings - match them to your choices that you have made on the power meters and or convertors. You have options based on individual chainring selection - mix and match - you also have direct mount GXP sets. the BCD of the chairing should be matched to the convertors and or power meter. Most road chainrings are 110bcd/130bcd 5 bolt, however we also have 4 bolt 110bcd Shimano standard available in full carbon chainrings. Be aware to choose either 10/11s or 12s chainrings to suit your choice you have made in groupsets.

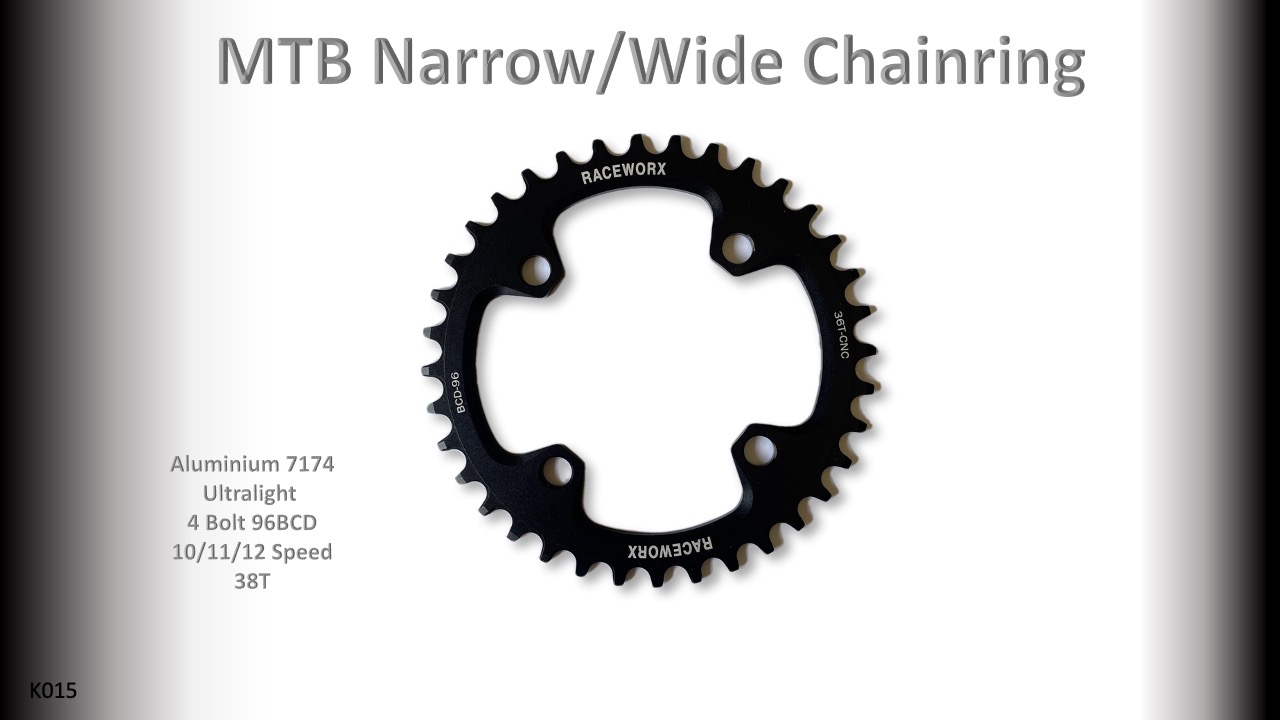

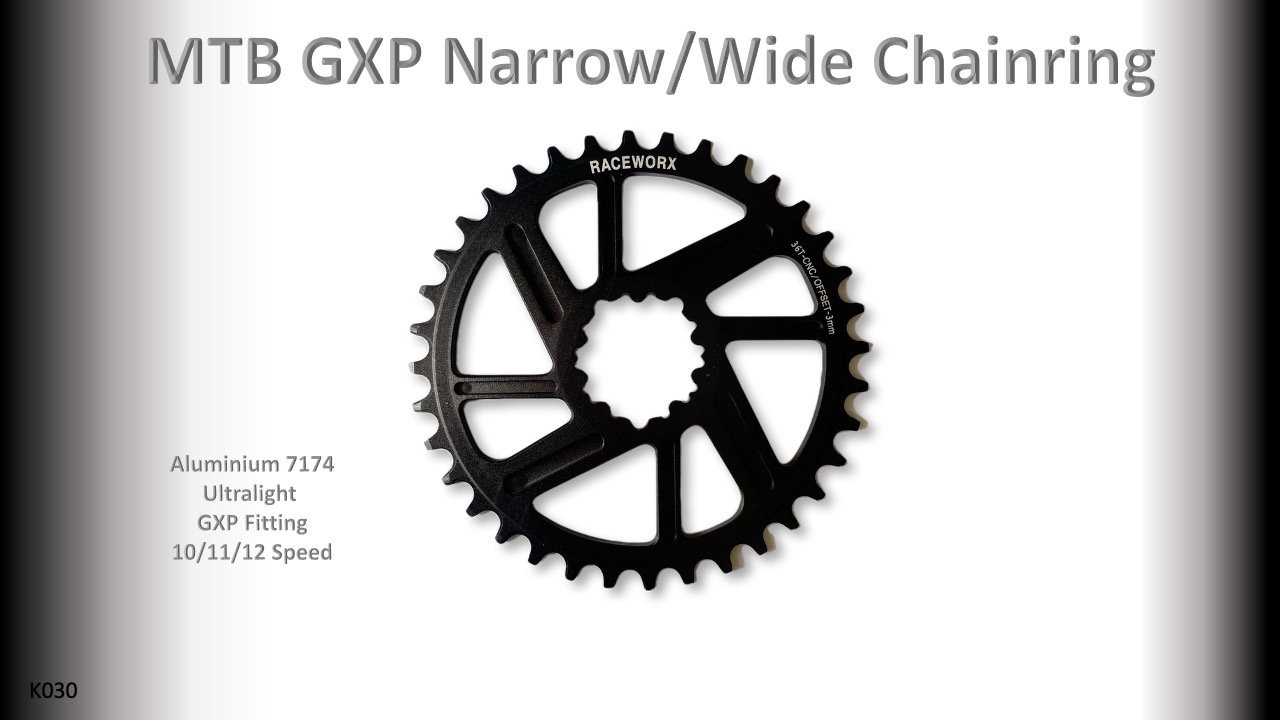

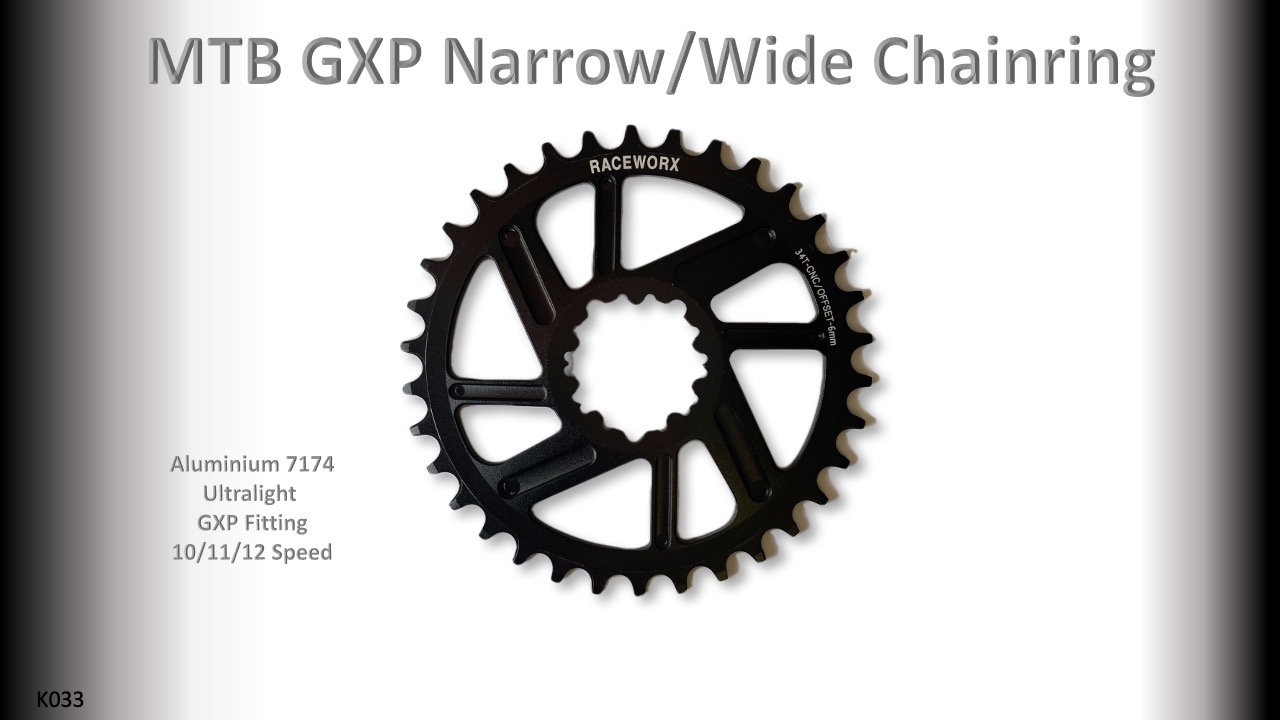

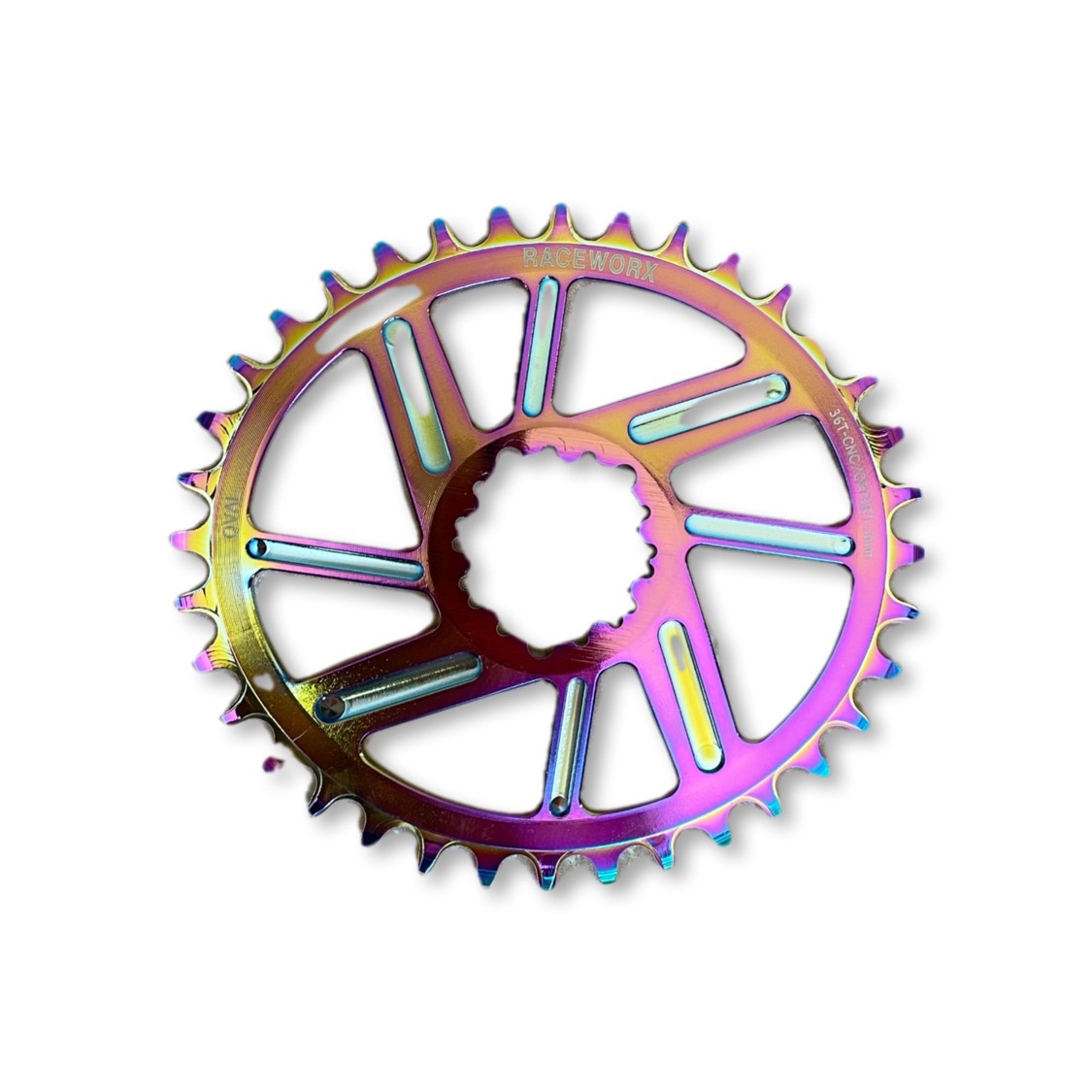

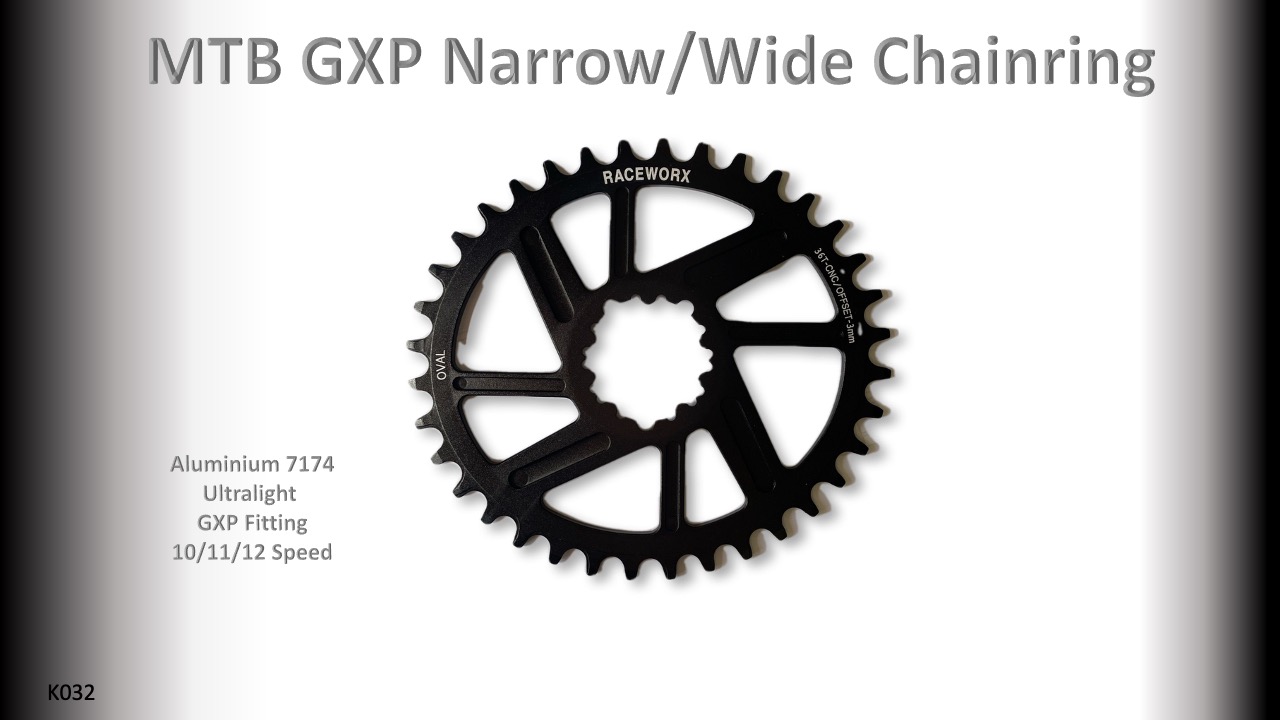

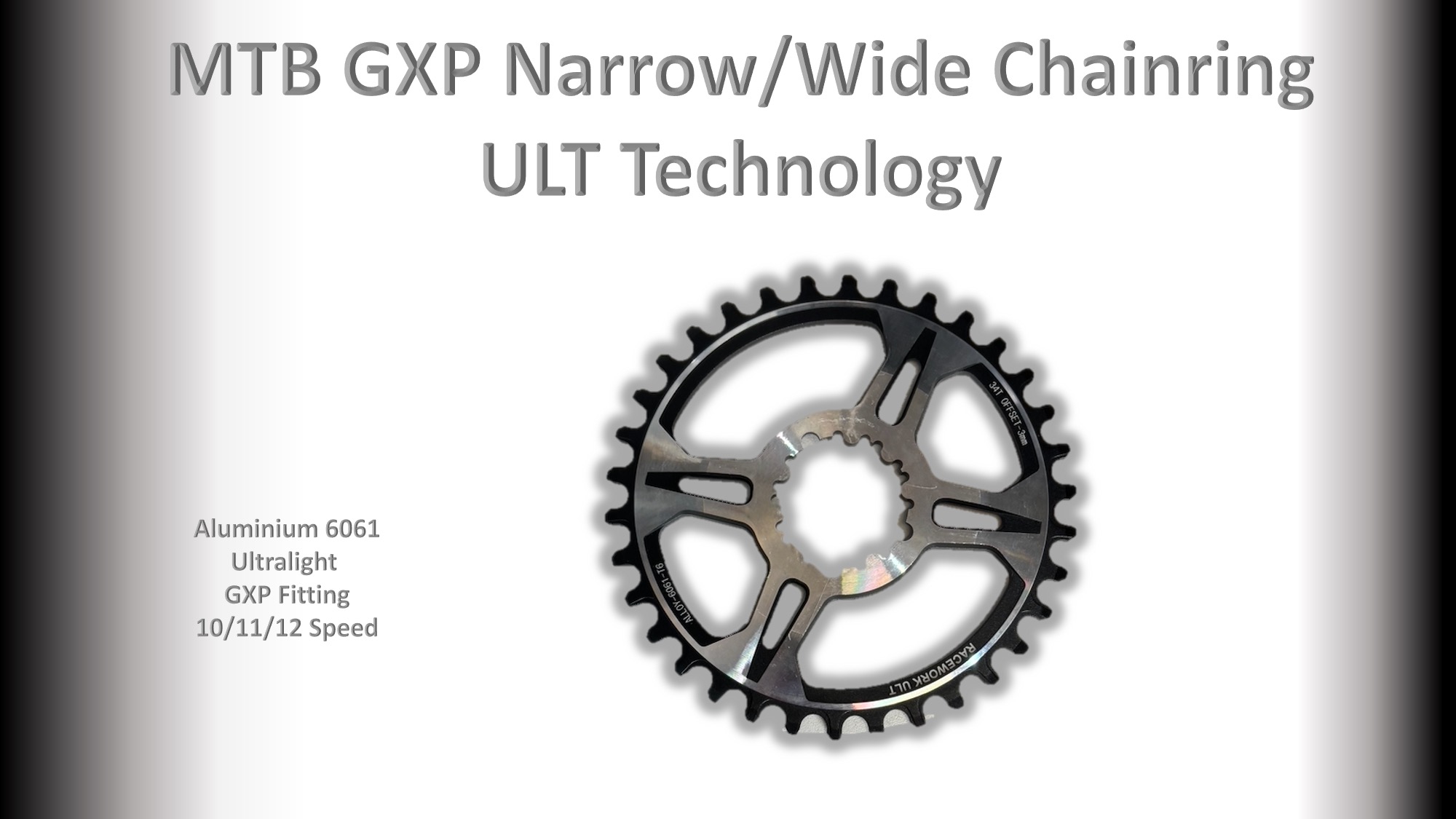

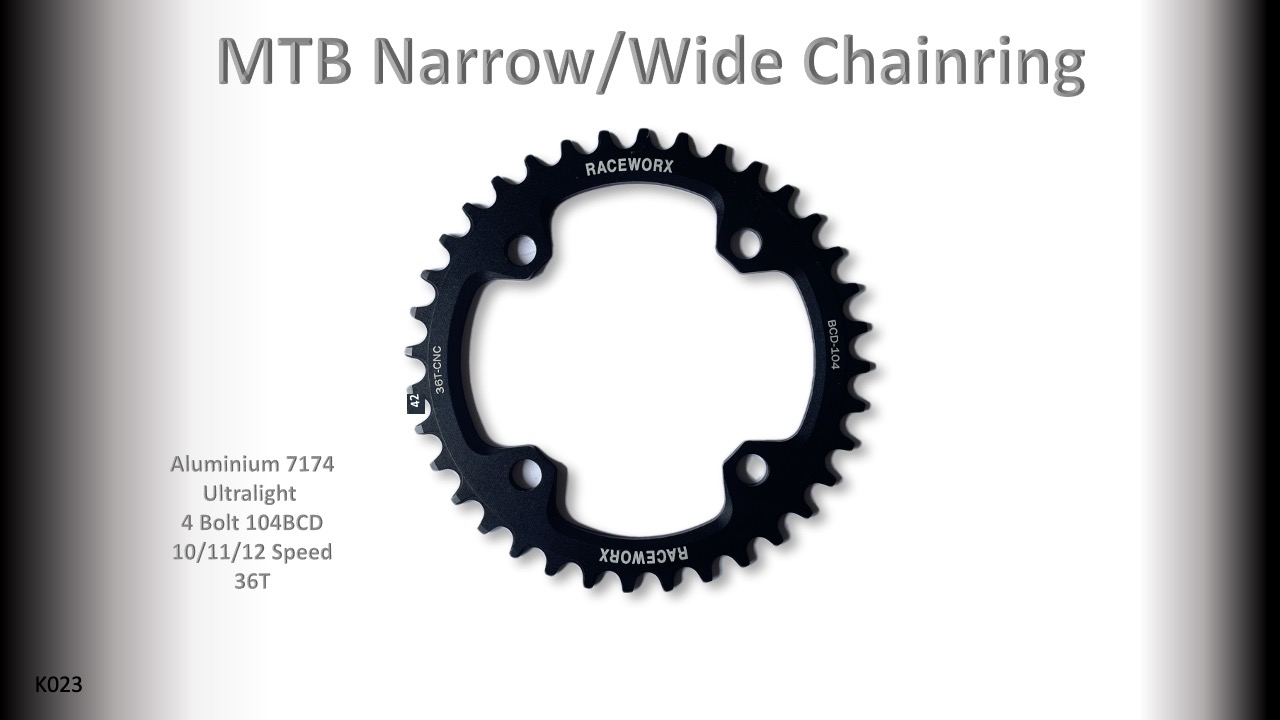

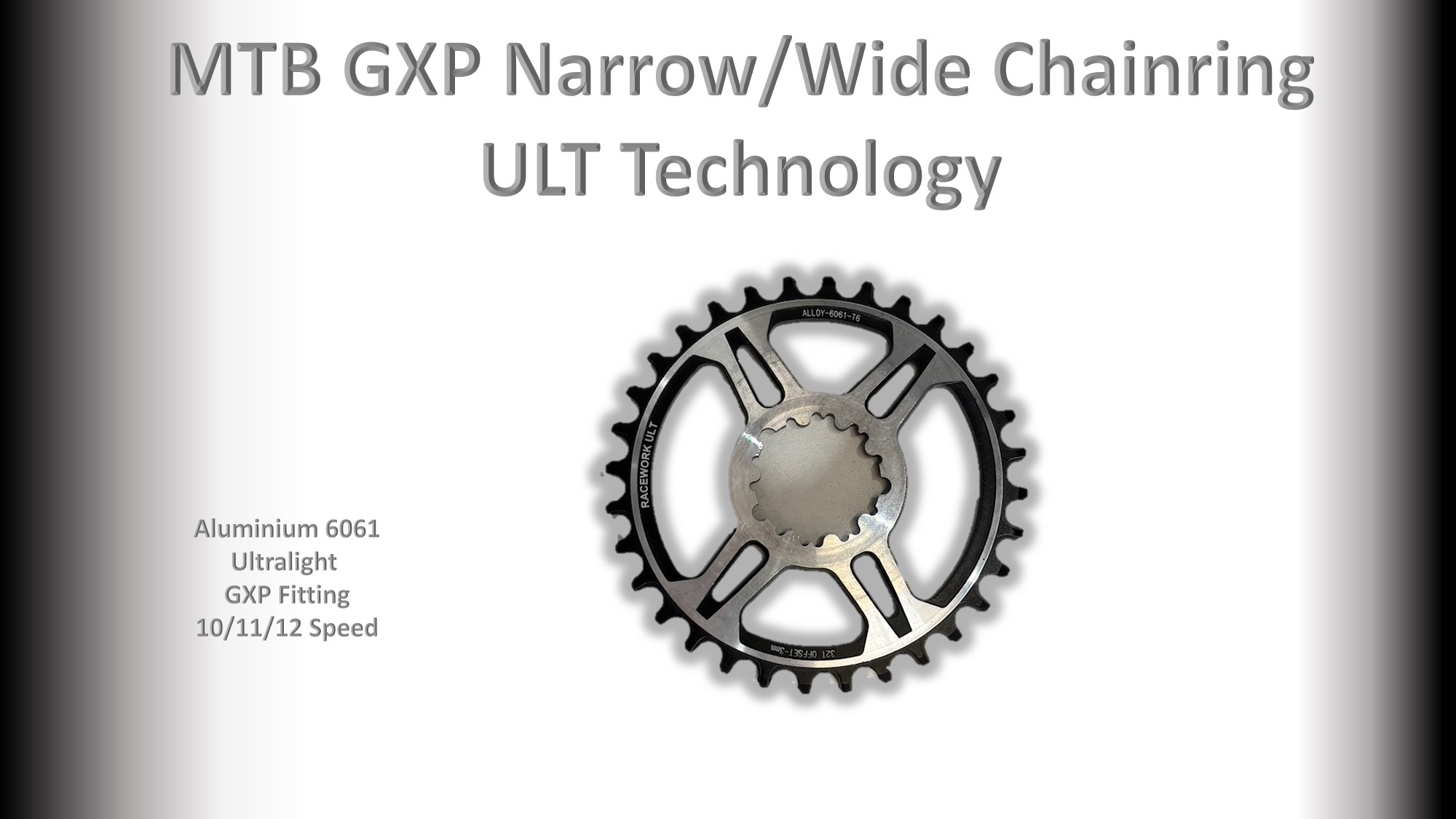

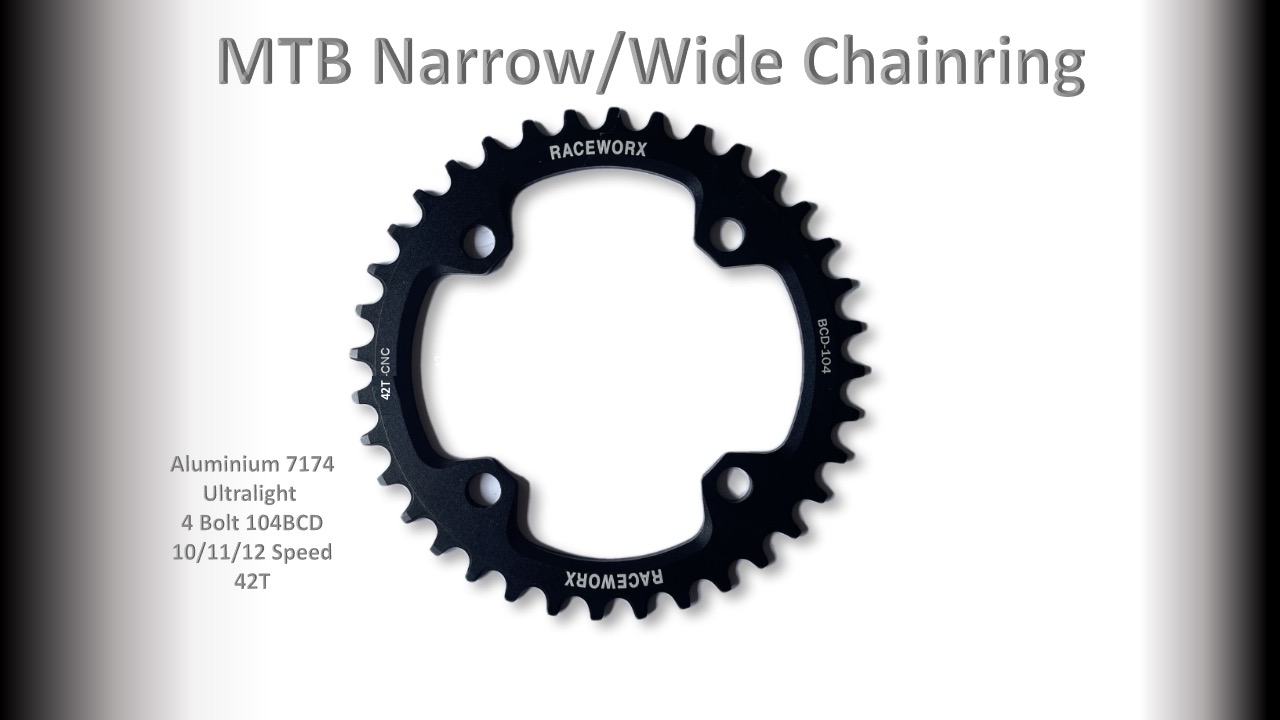

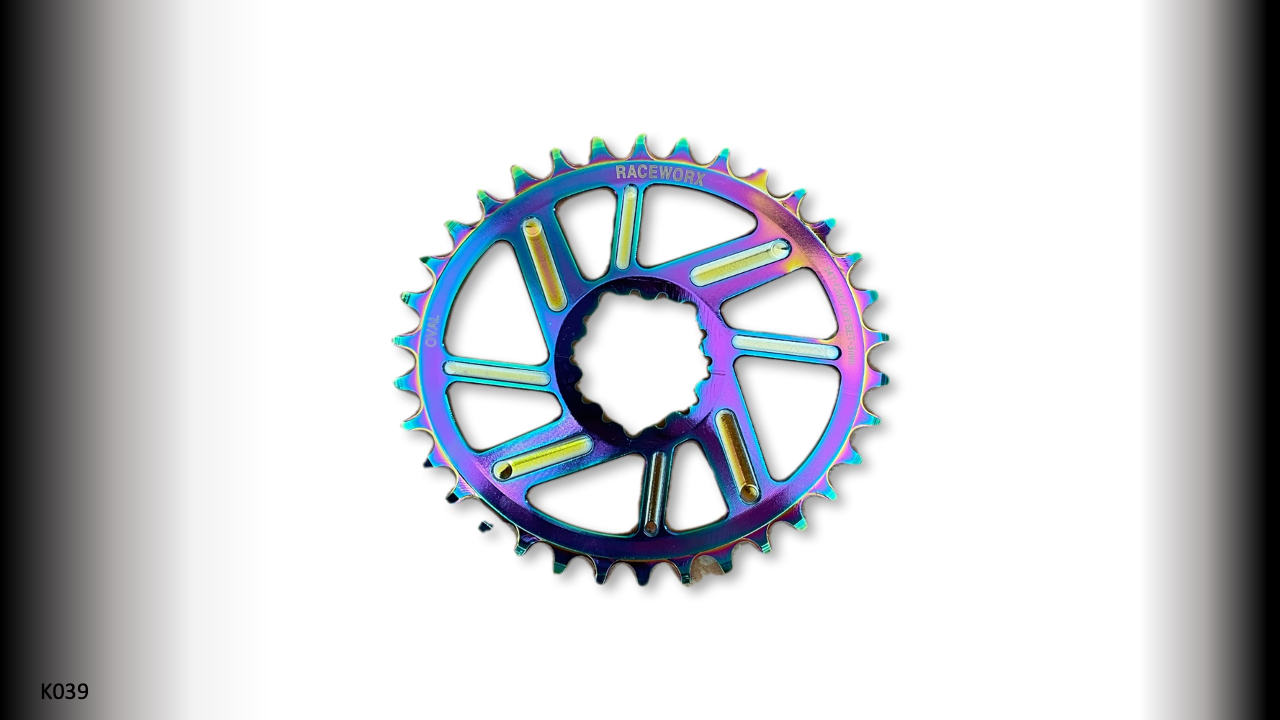

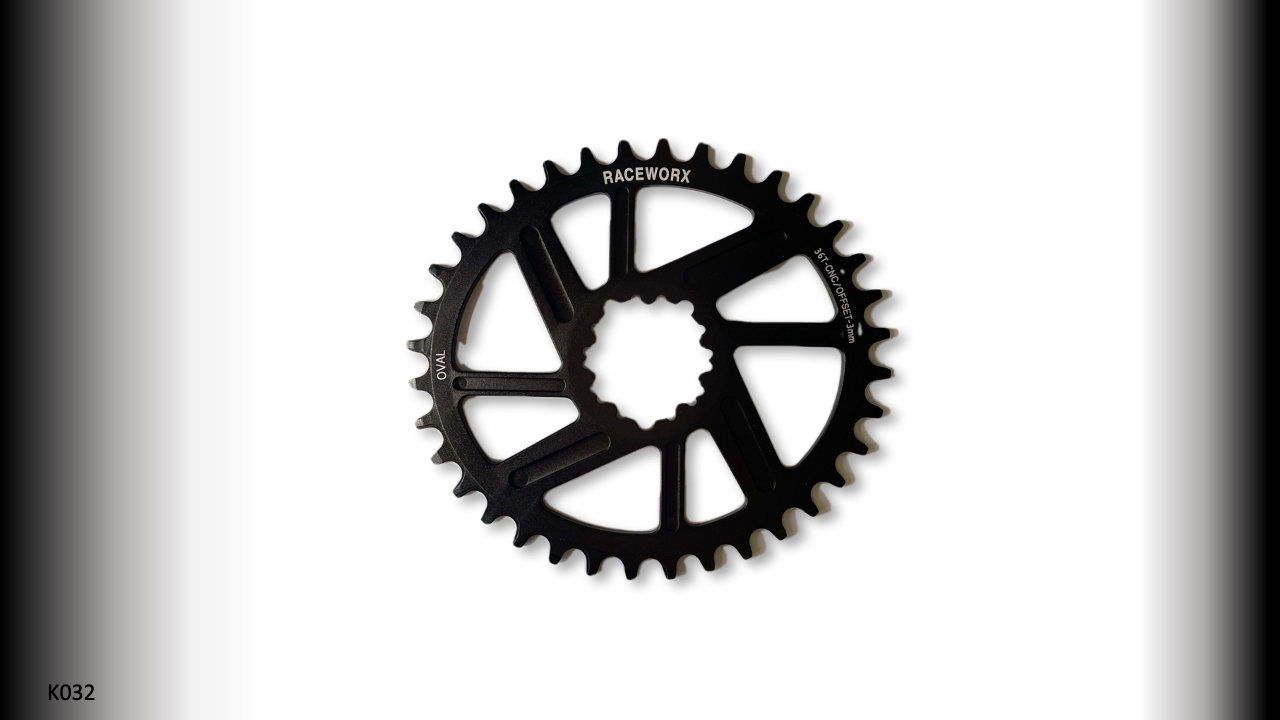

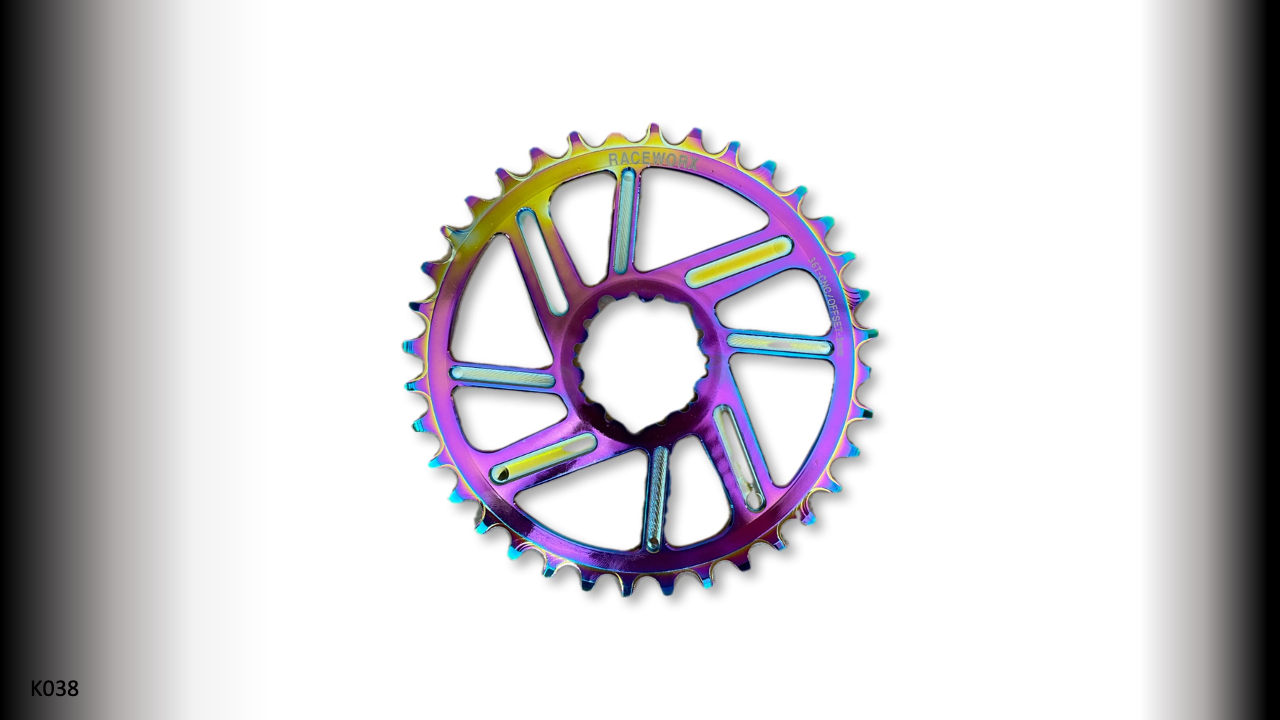

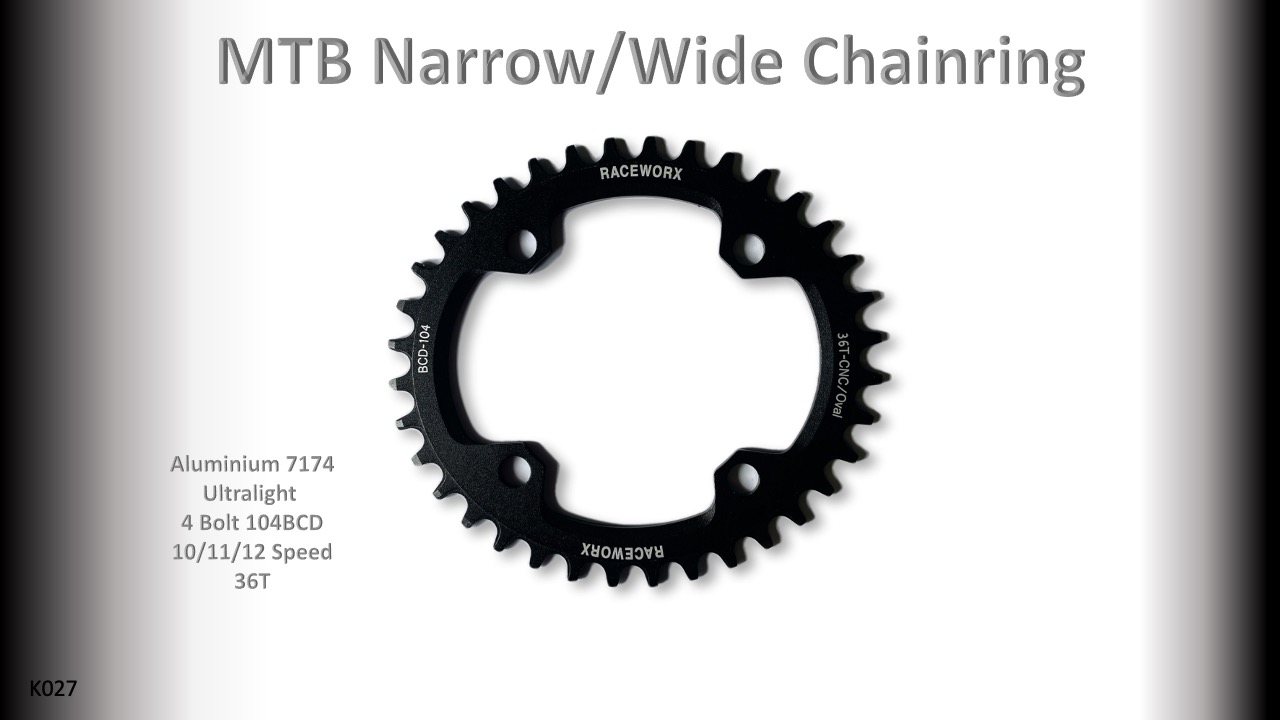

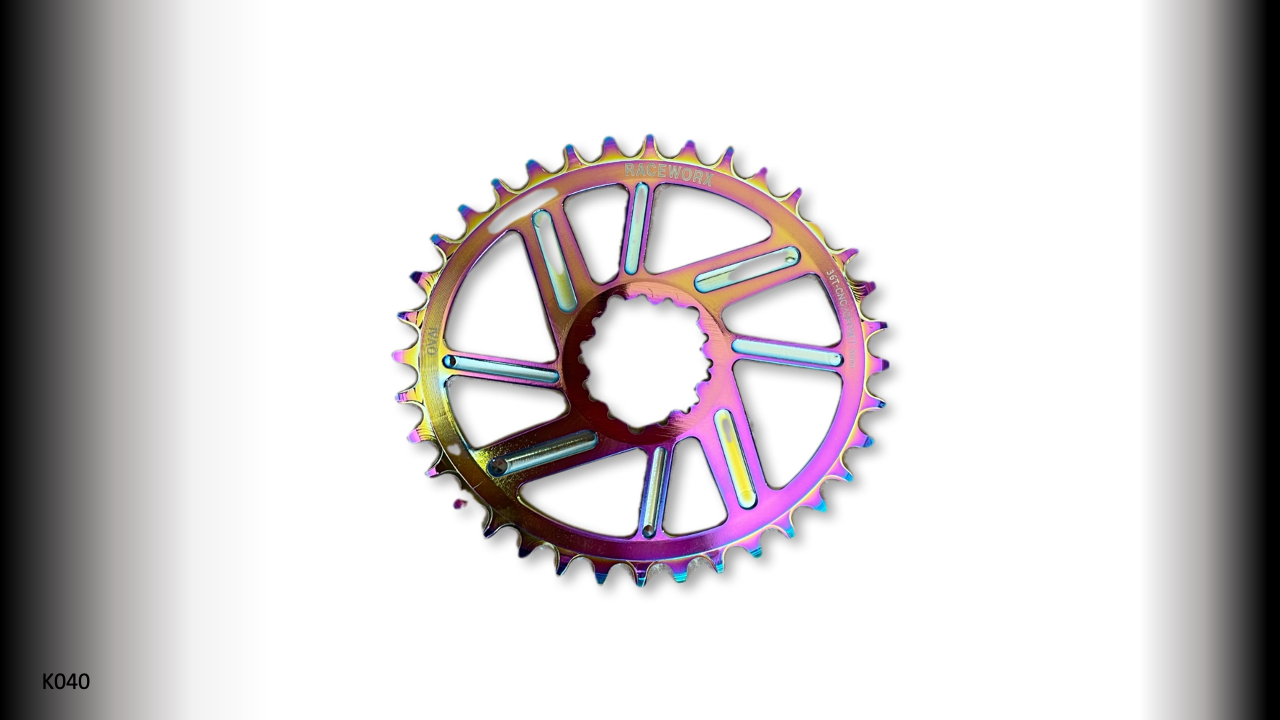

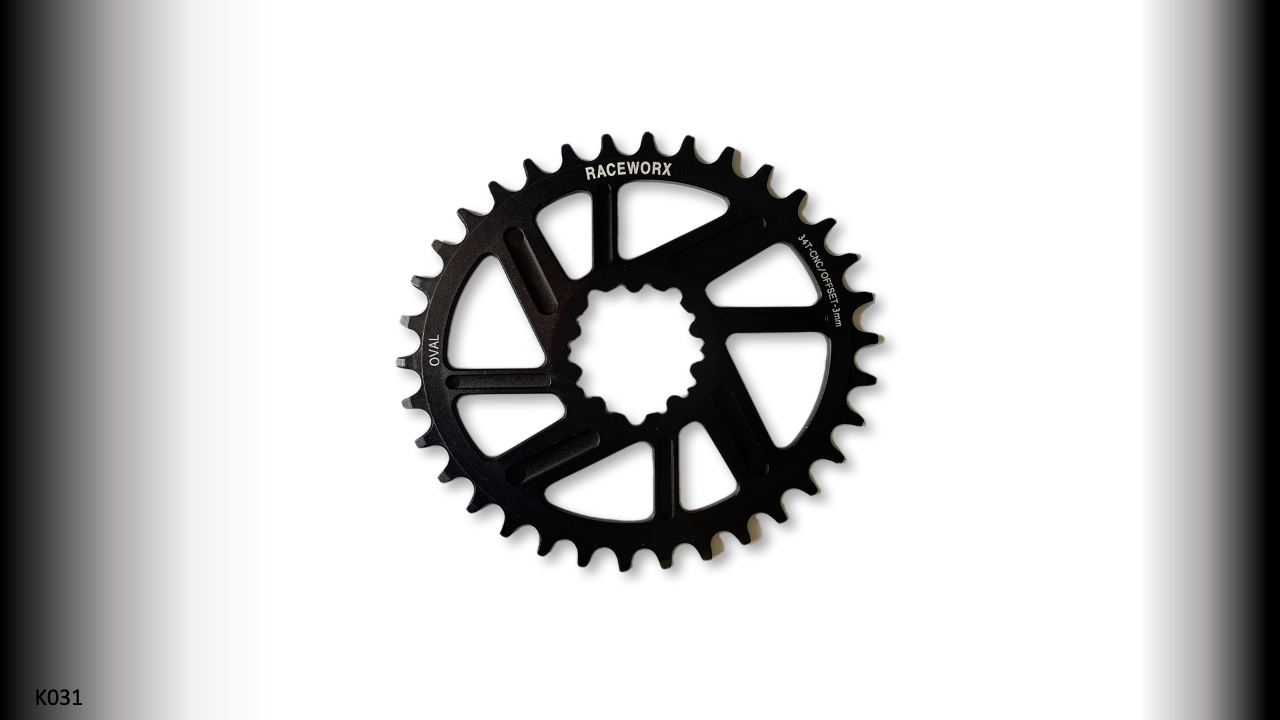

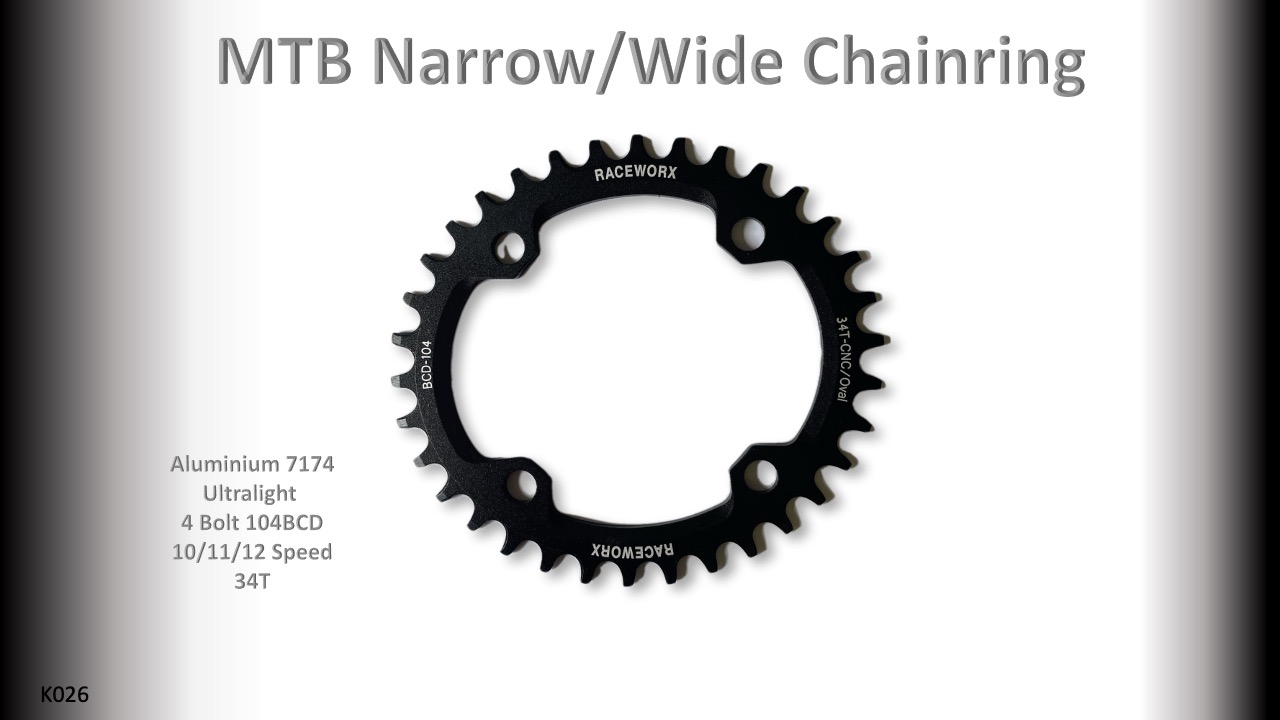

Chainrings have a wide selection - when choosing your desired chainrings - match them to your choices that you have made on the power meters and or convertors. You have options based on individual chainring selection - mix and match - you also have direct mount GXP sets. the BCD of the chairing should be matched to the convertors and or power meter. Most Mtb chainrings are 104bcd/96bcd 4 bolt, Be aware to choose either 10/11s or 12s chainrings to suit your choice you have made in groupsets.

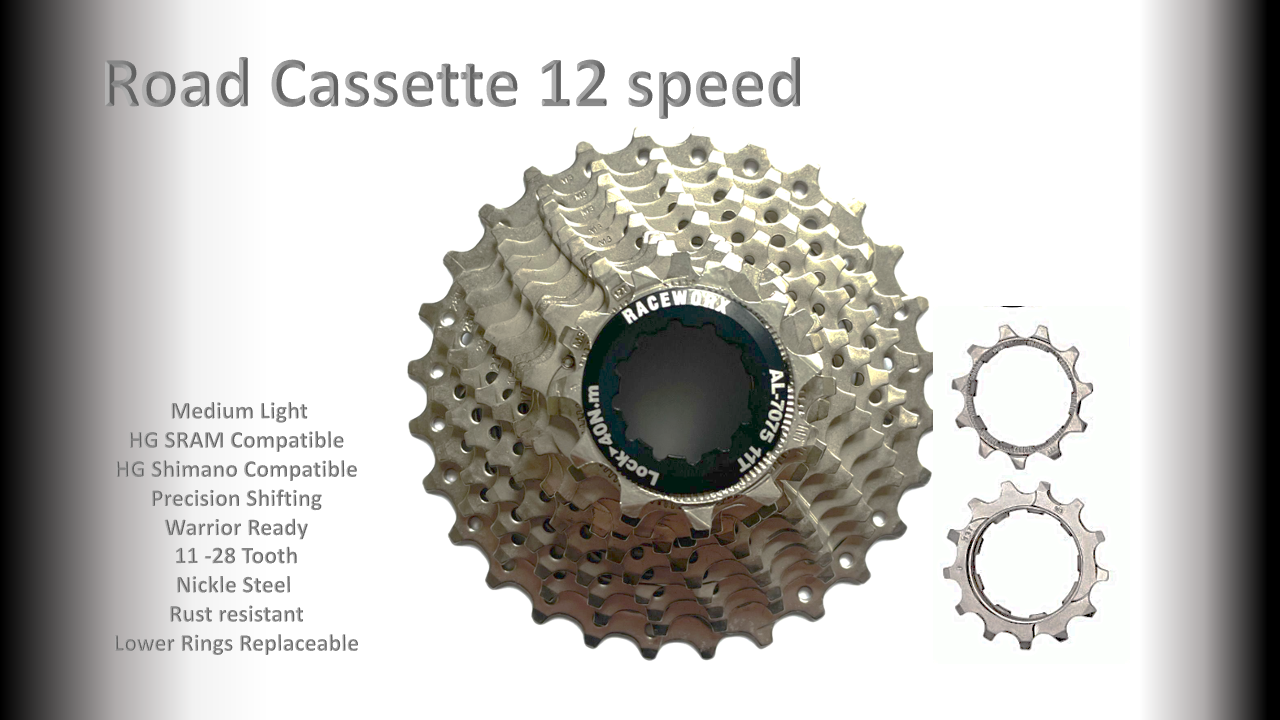

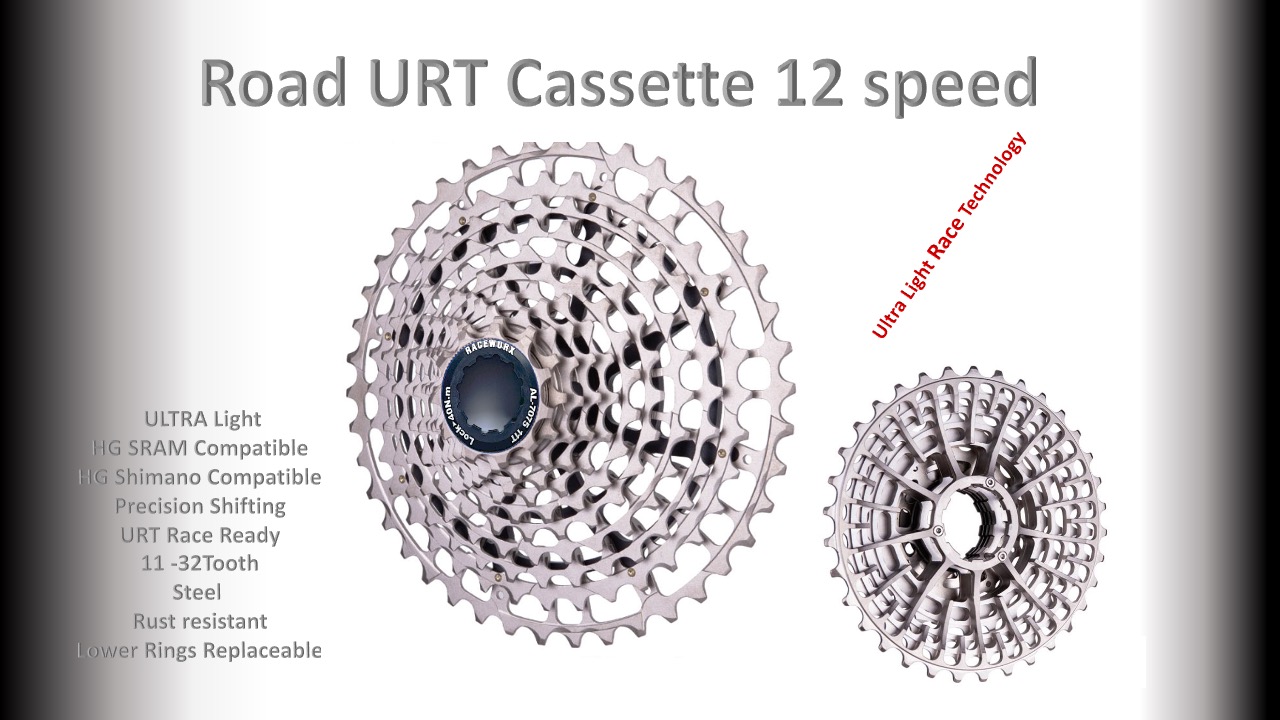

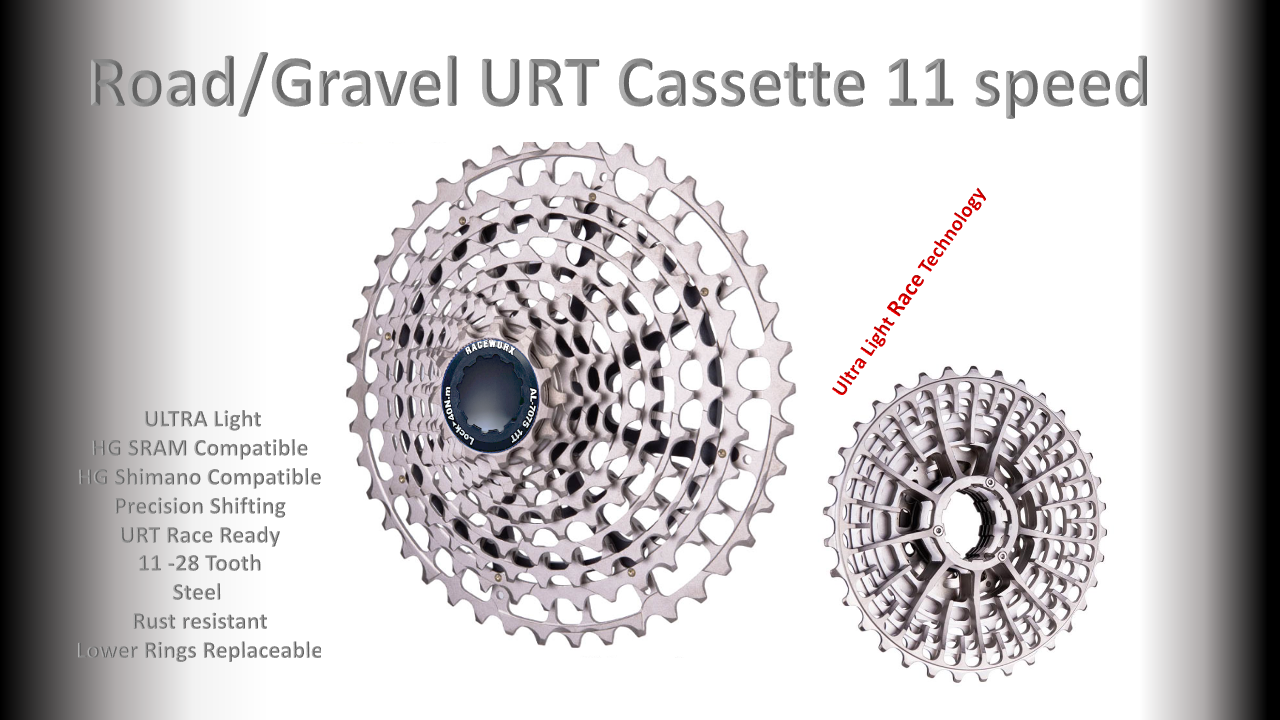

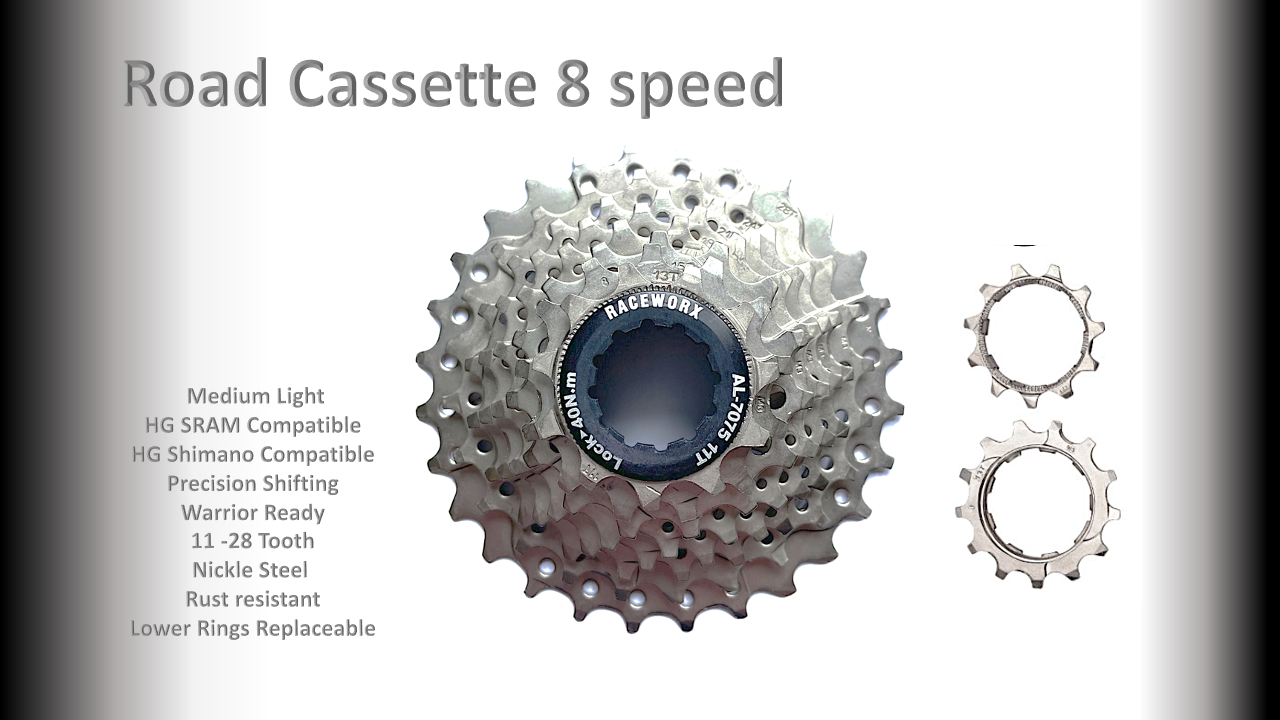

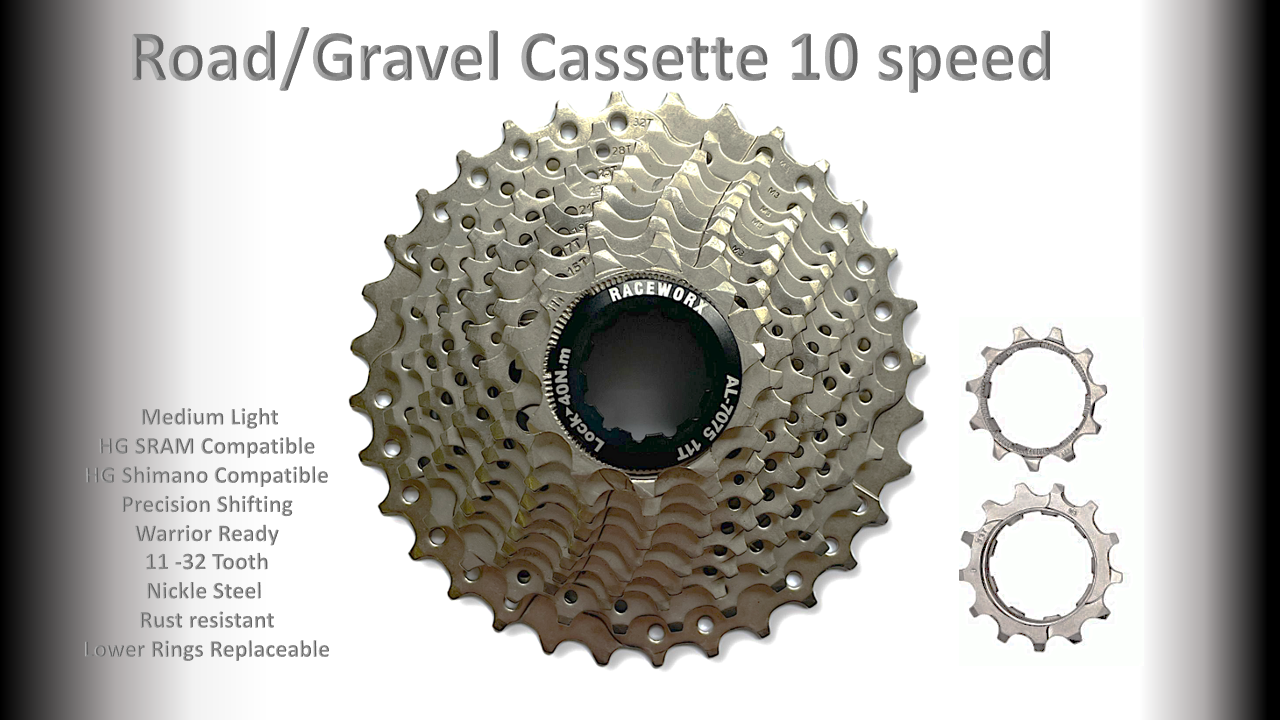

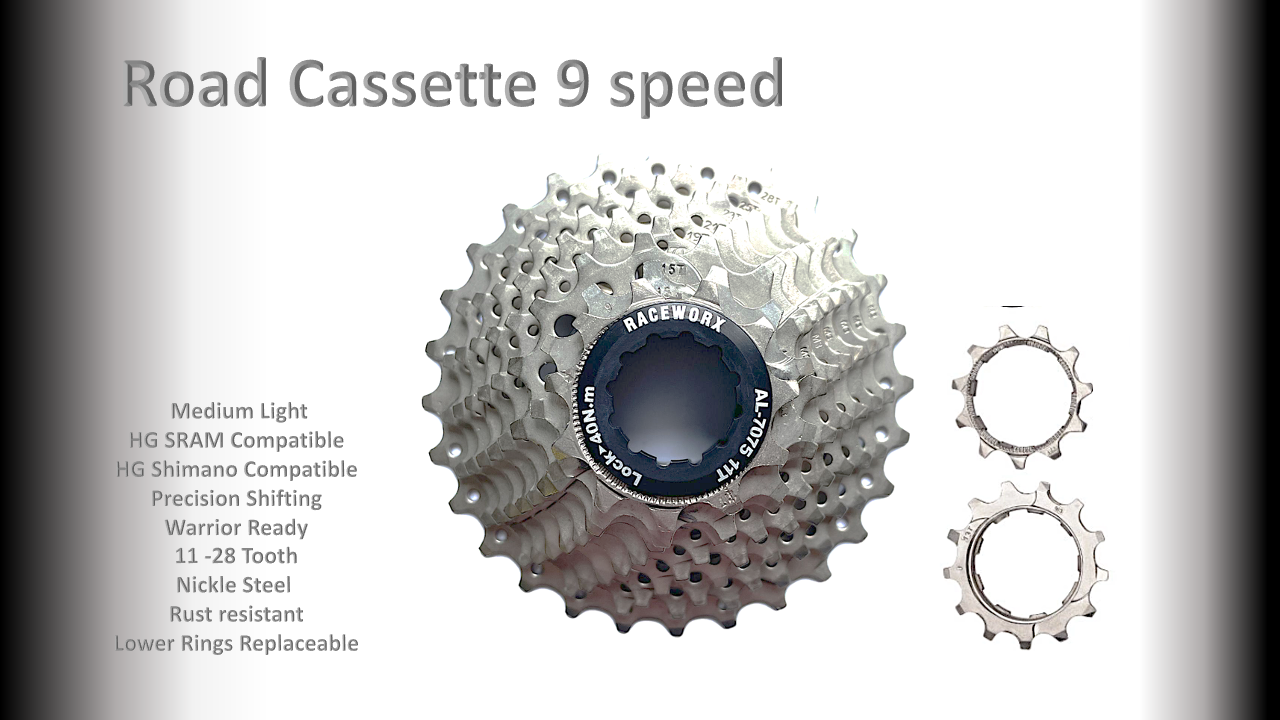

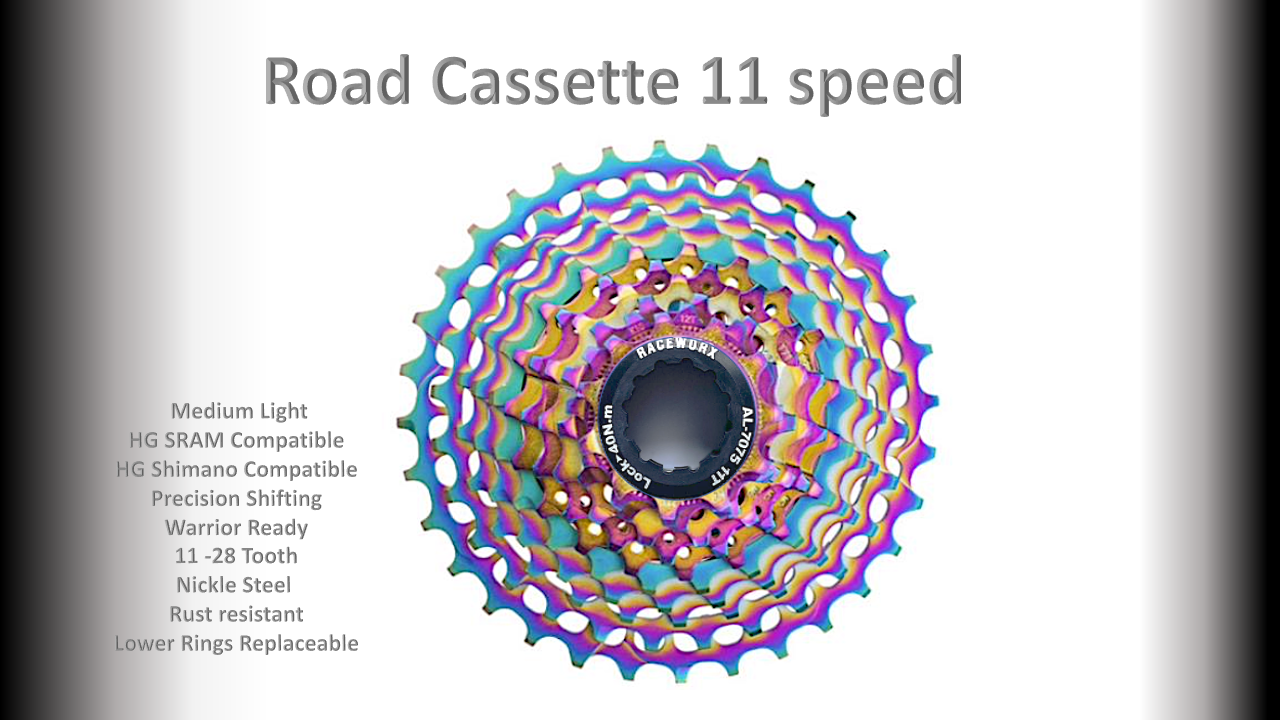

We have three levels of cassettes suited for your budget and needs.

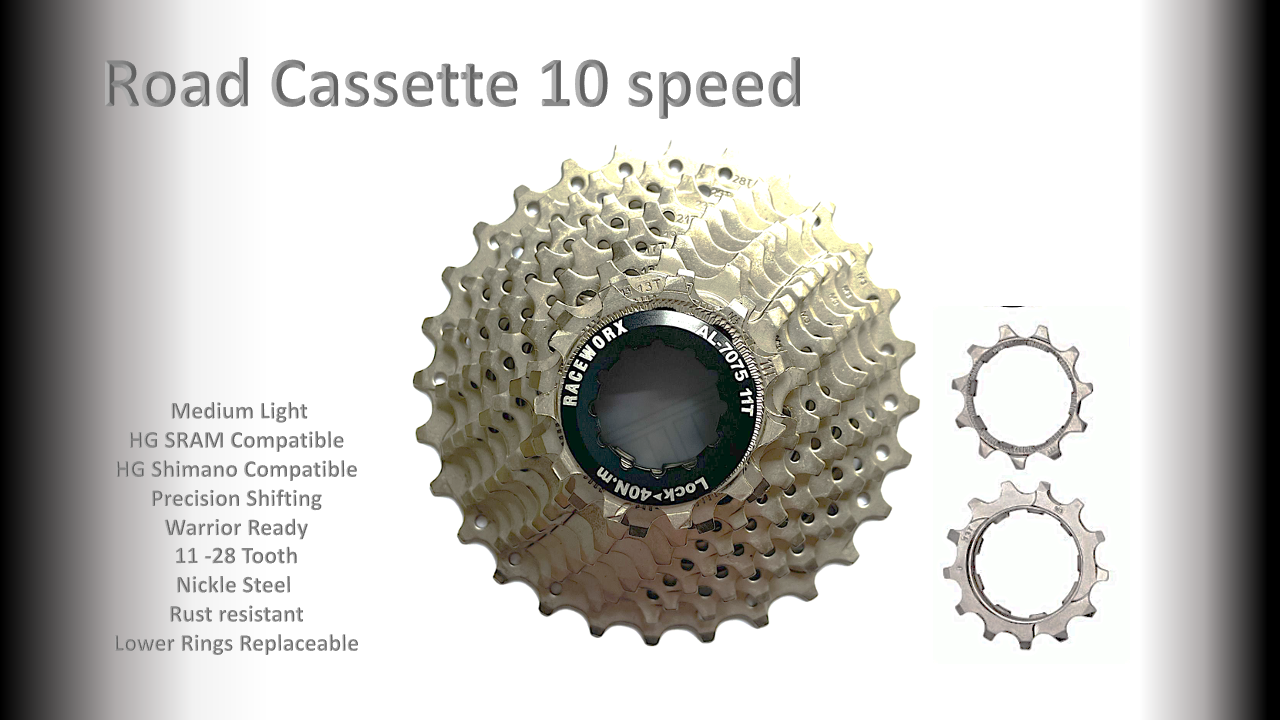

• A: Recreational Level
• B: URT - Racing ready - extremely light

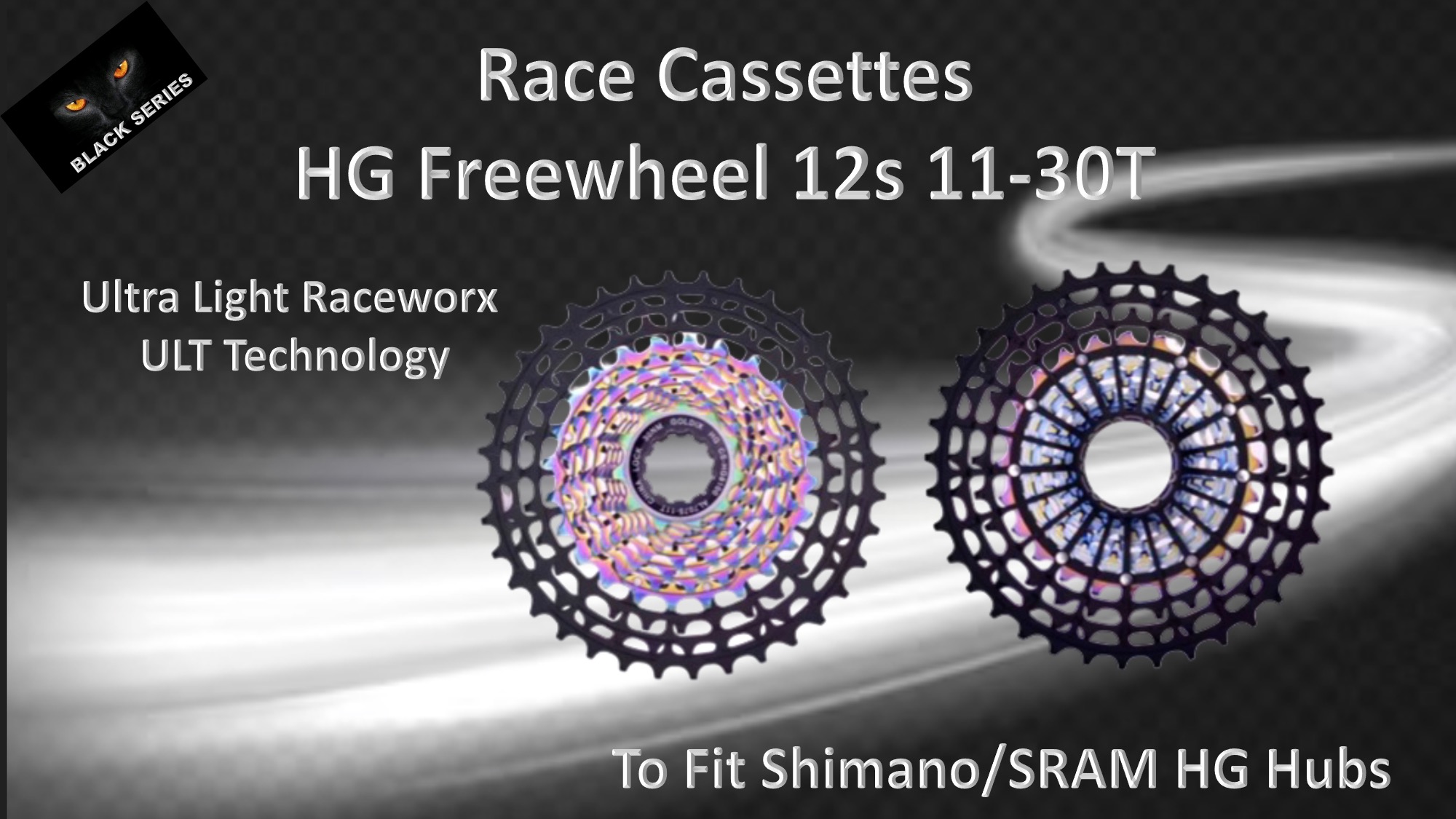

• C: ULT Black series - lightest and strongest full steel cassette - racing recommended

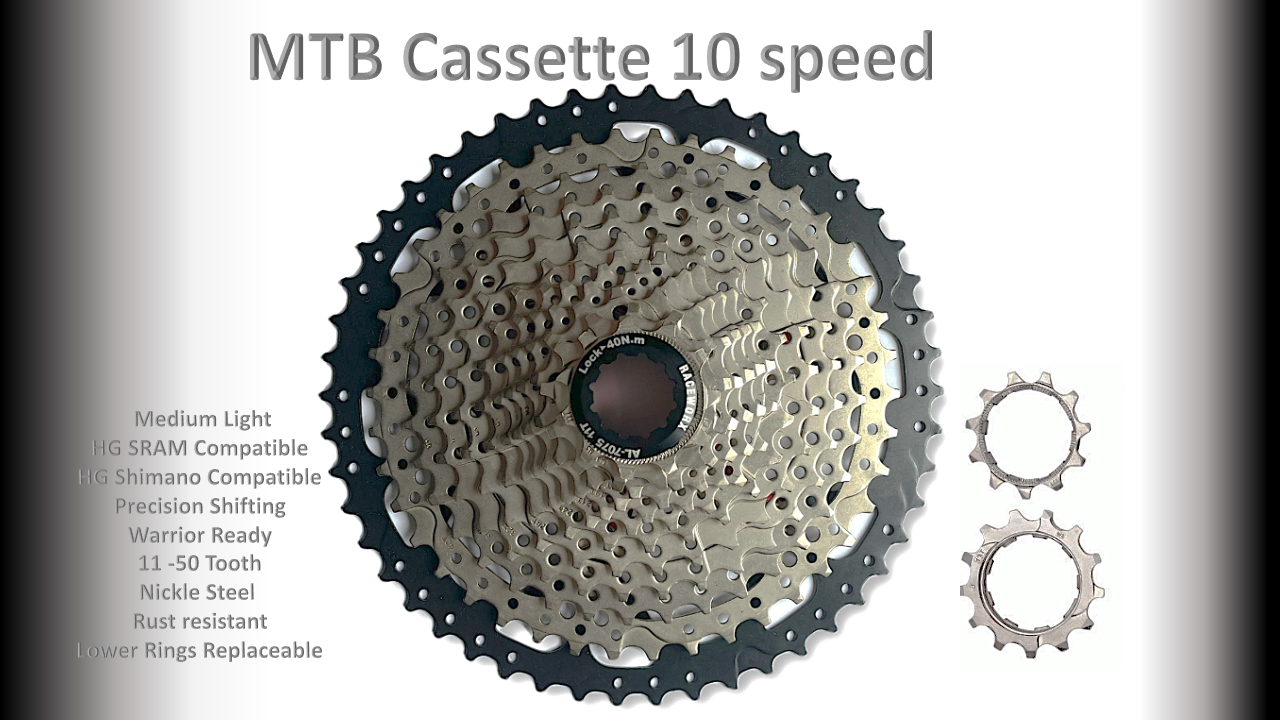

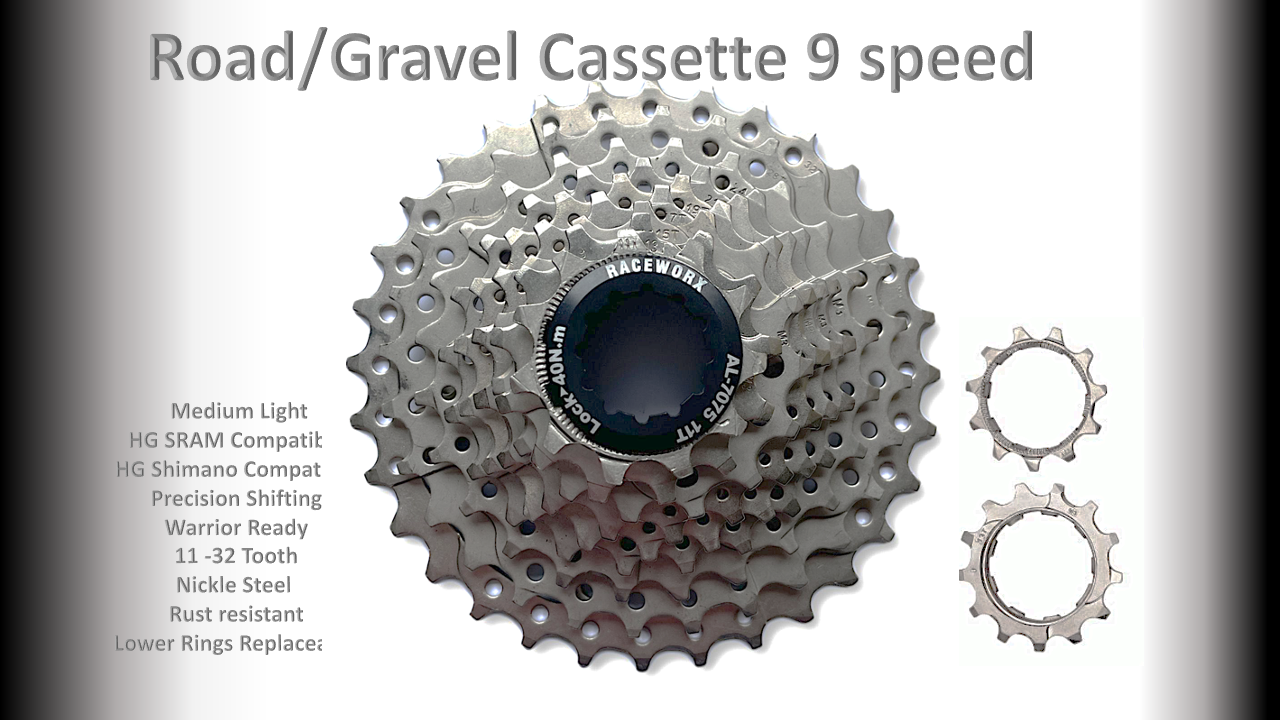

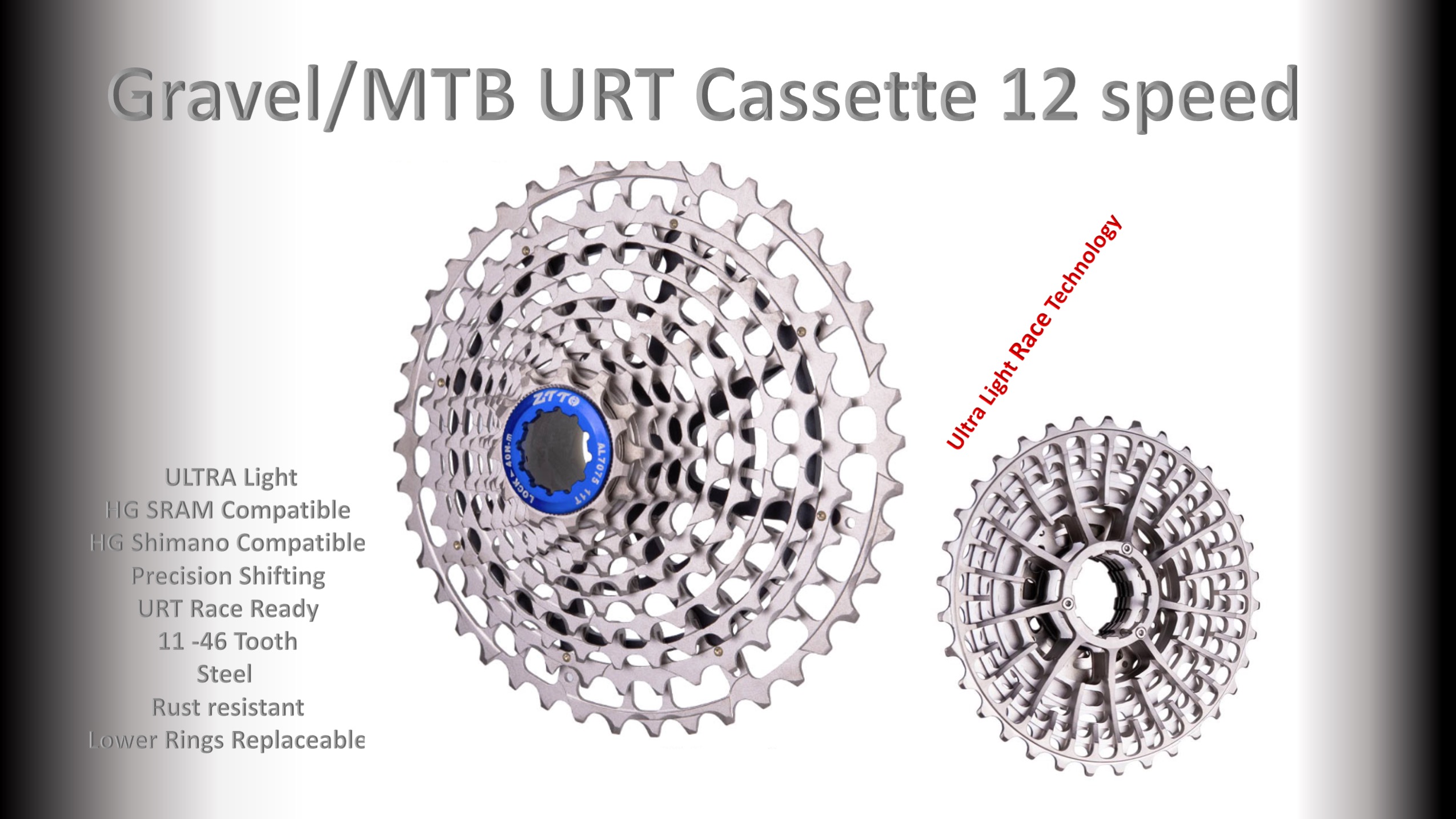

The cassettes also come in both XDR or HG compatible, Cassette selection is also based on 8/9/10/11 or 12s, they also come in ranges of cassette sizes in smallest ring to largest ring - larger rings suited to climbing and smaller to ultra speed.

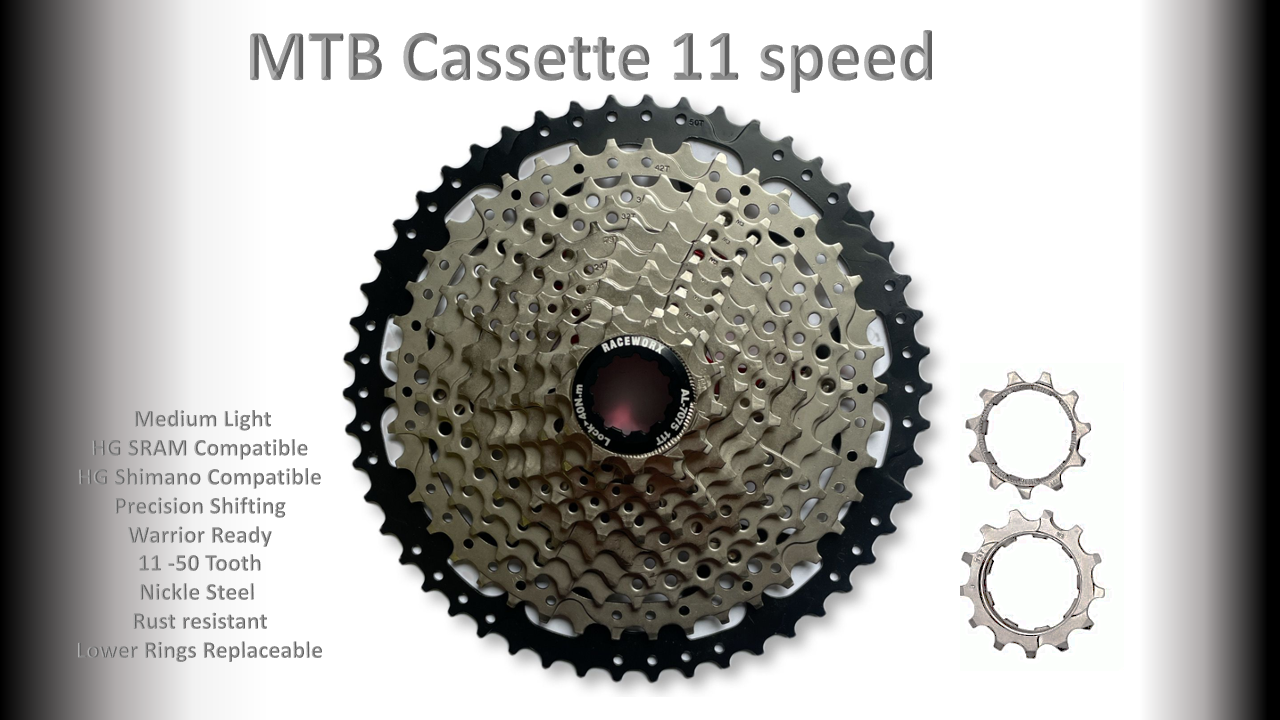

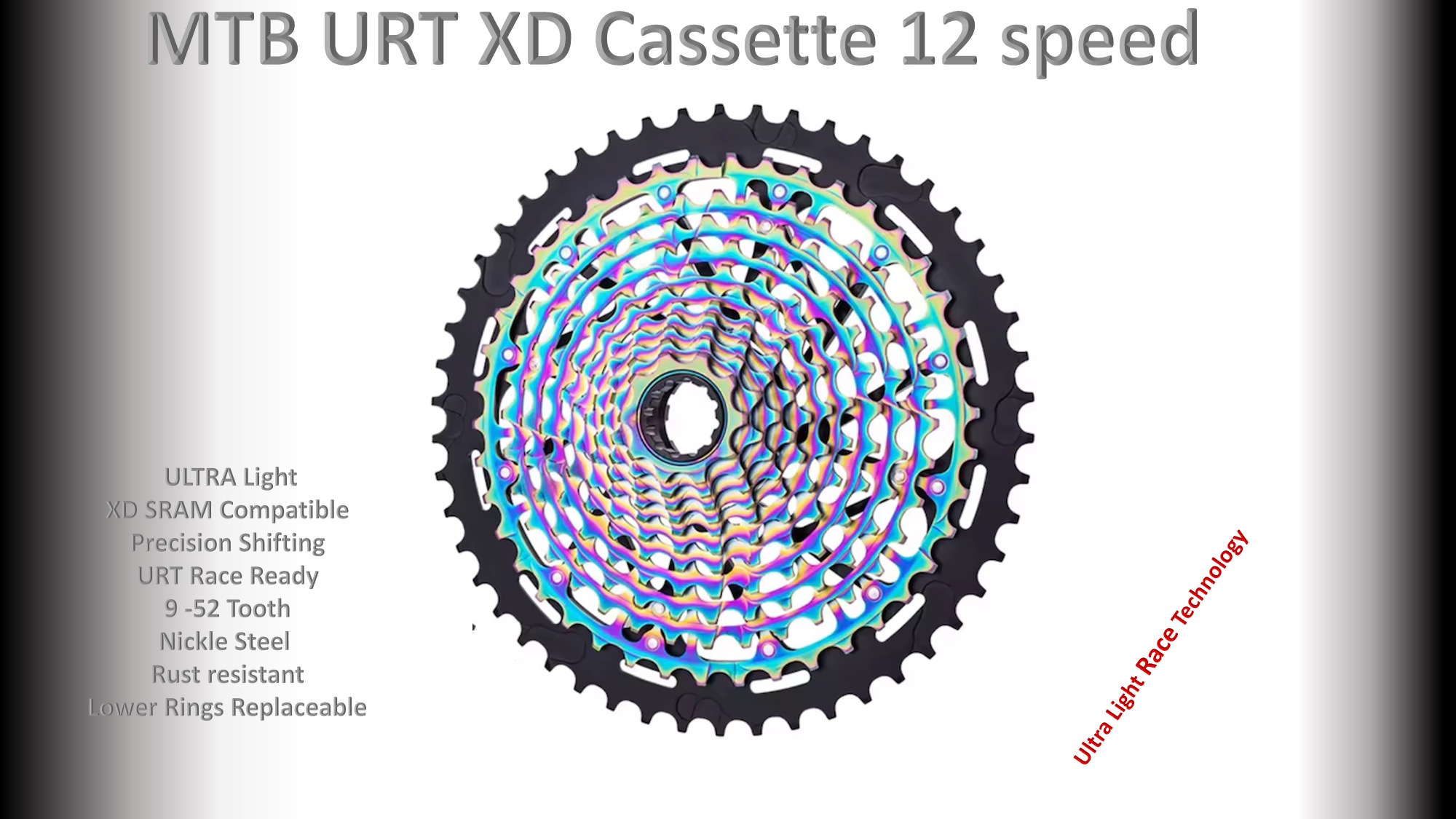

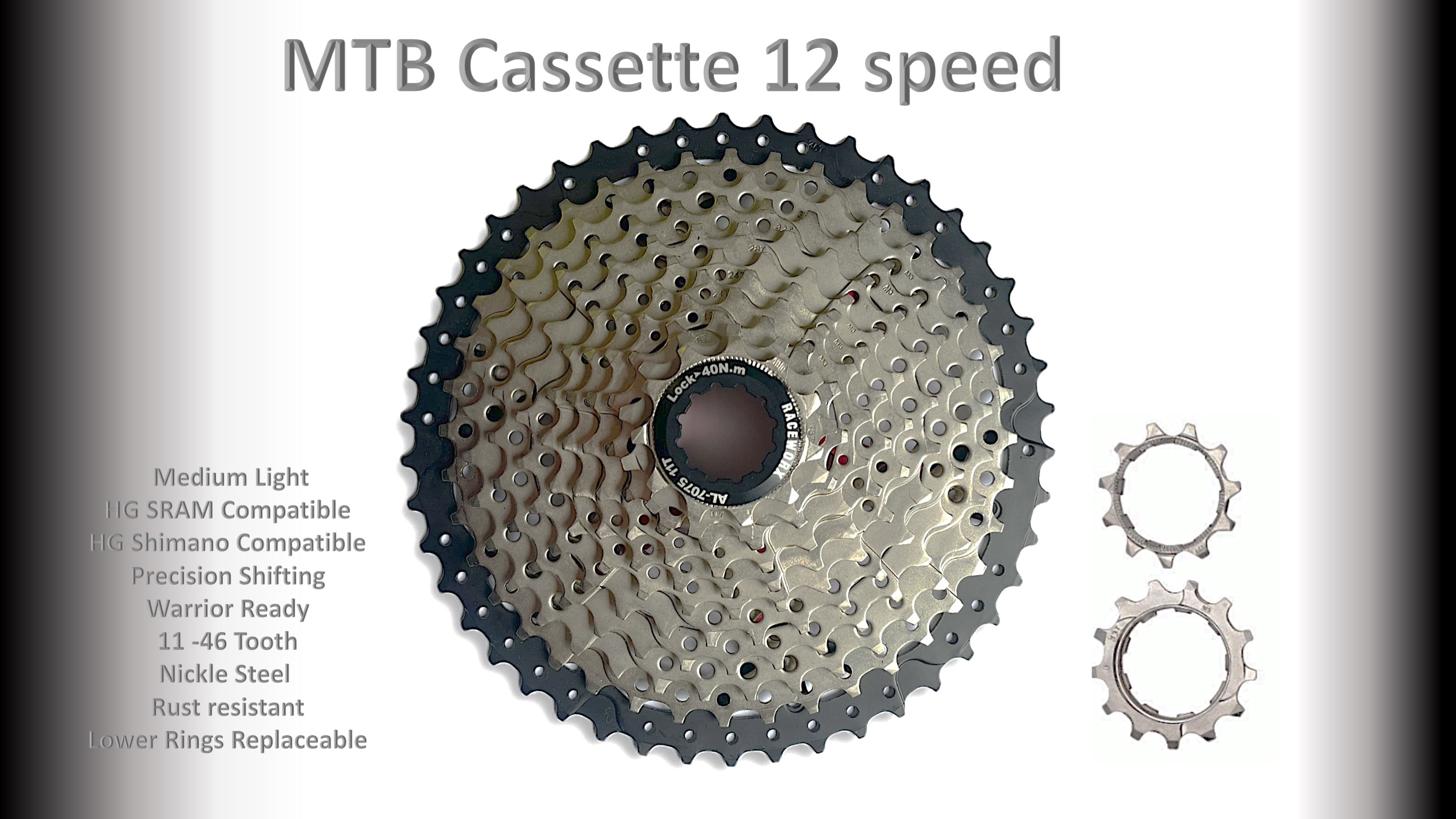

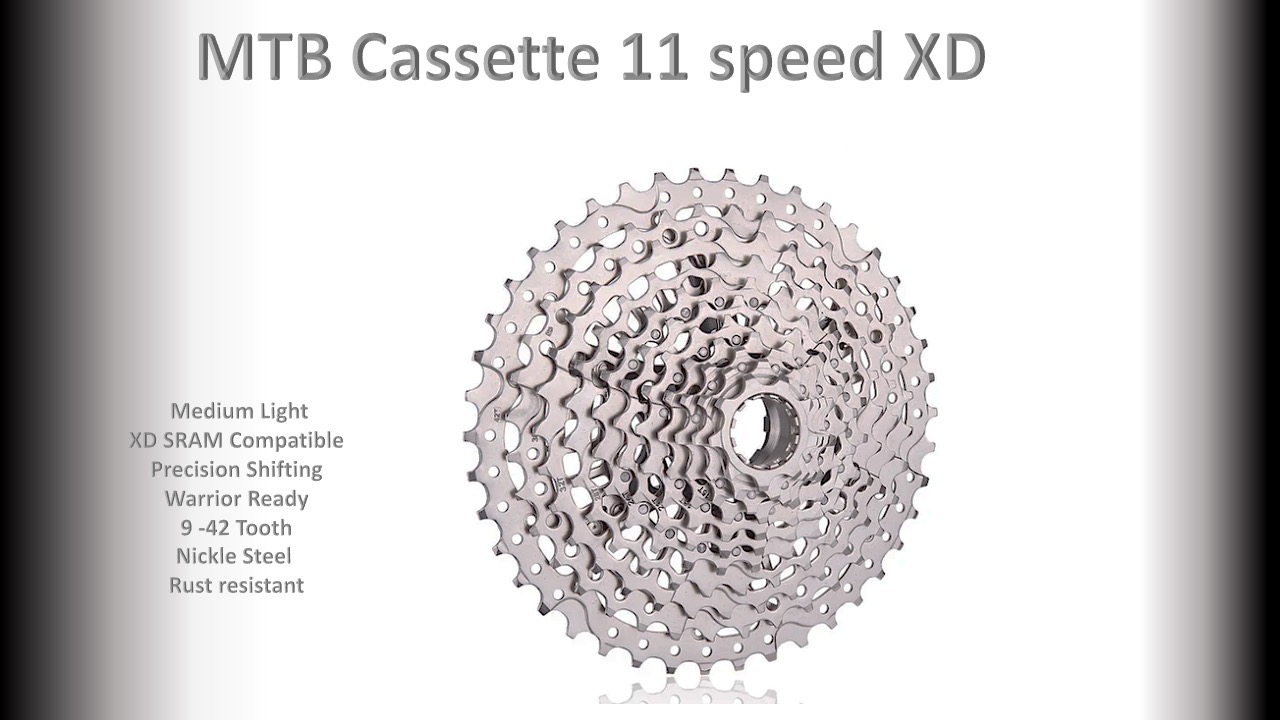

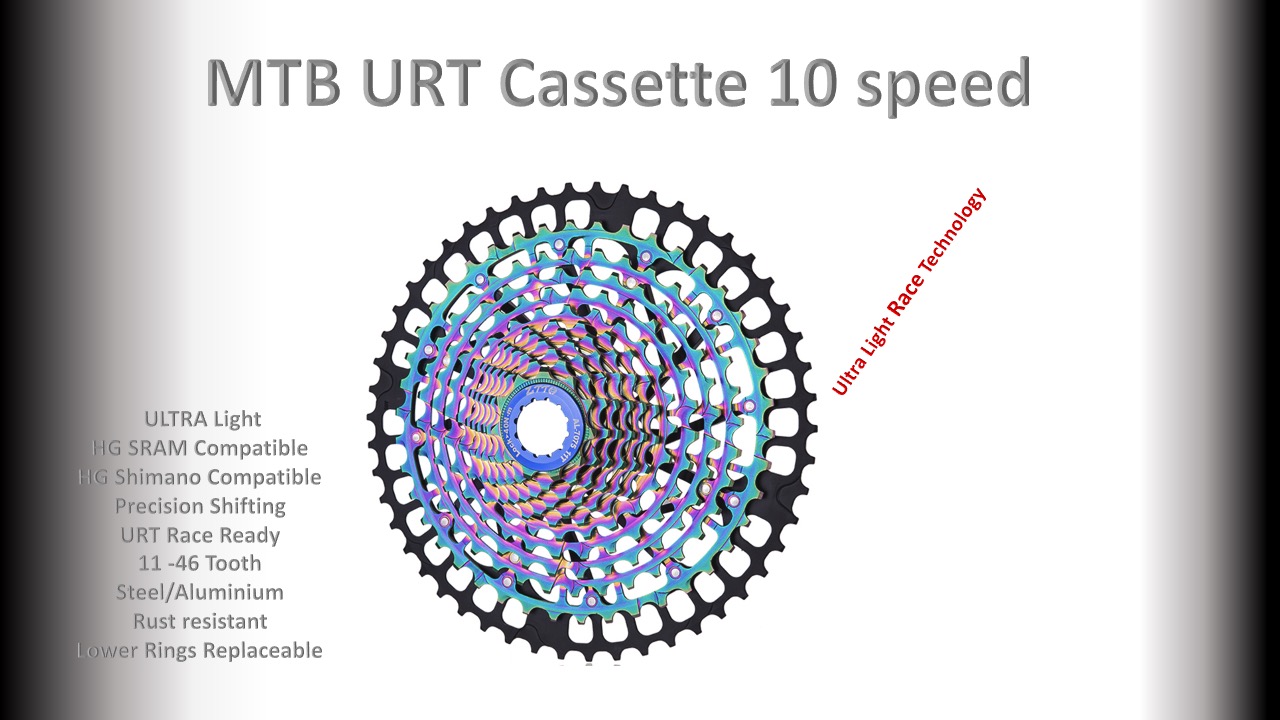

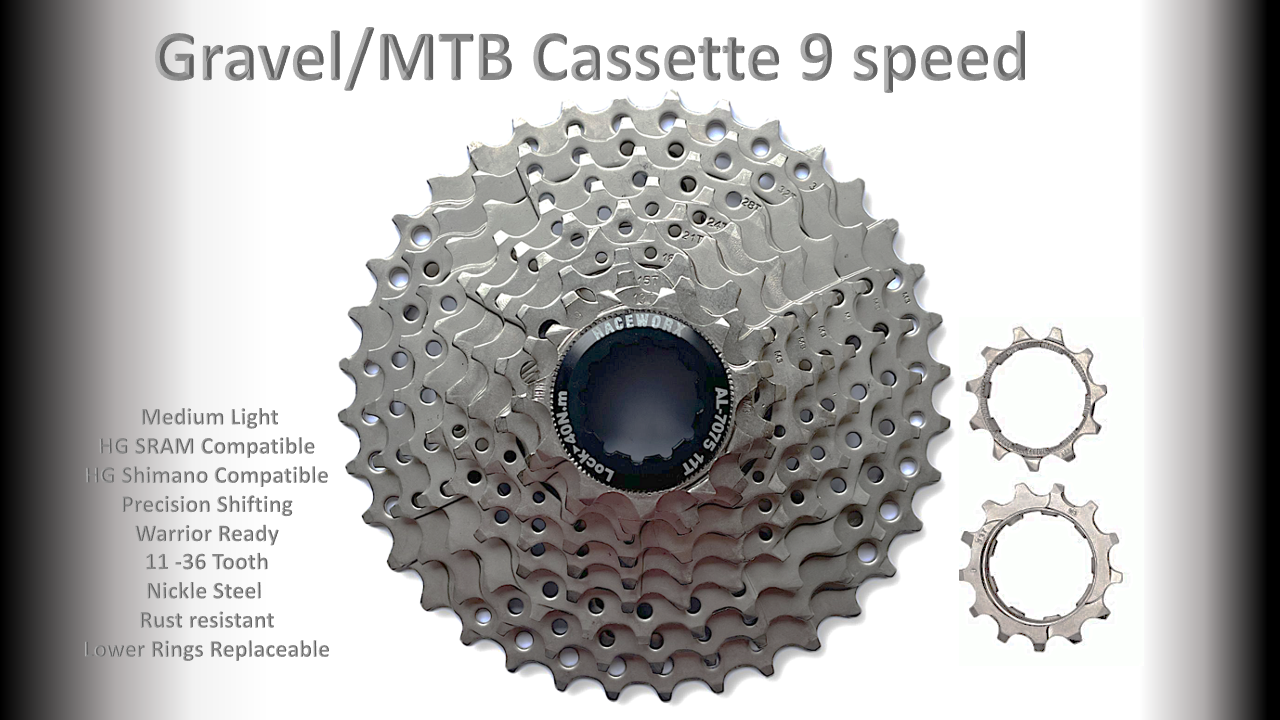

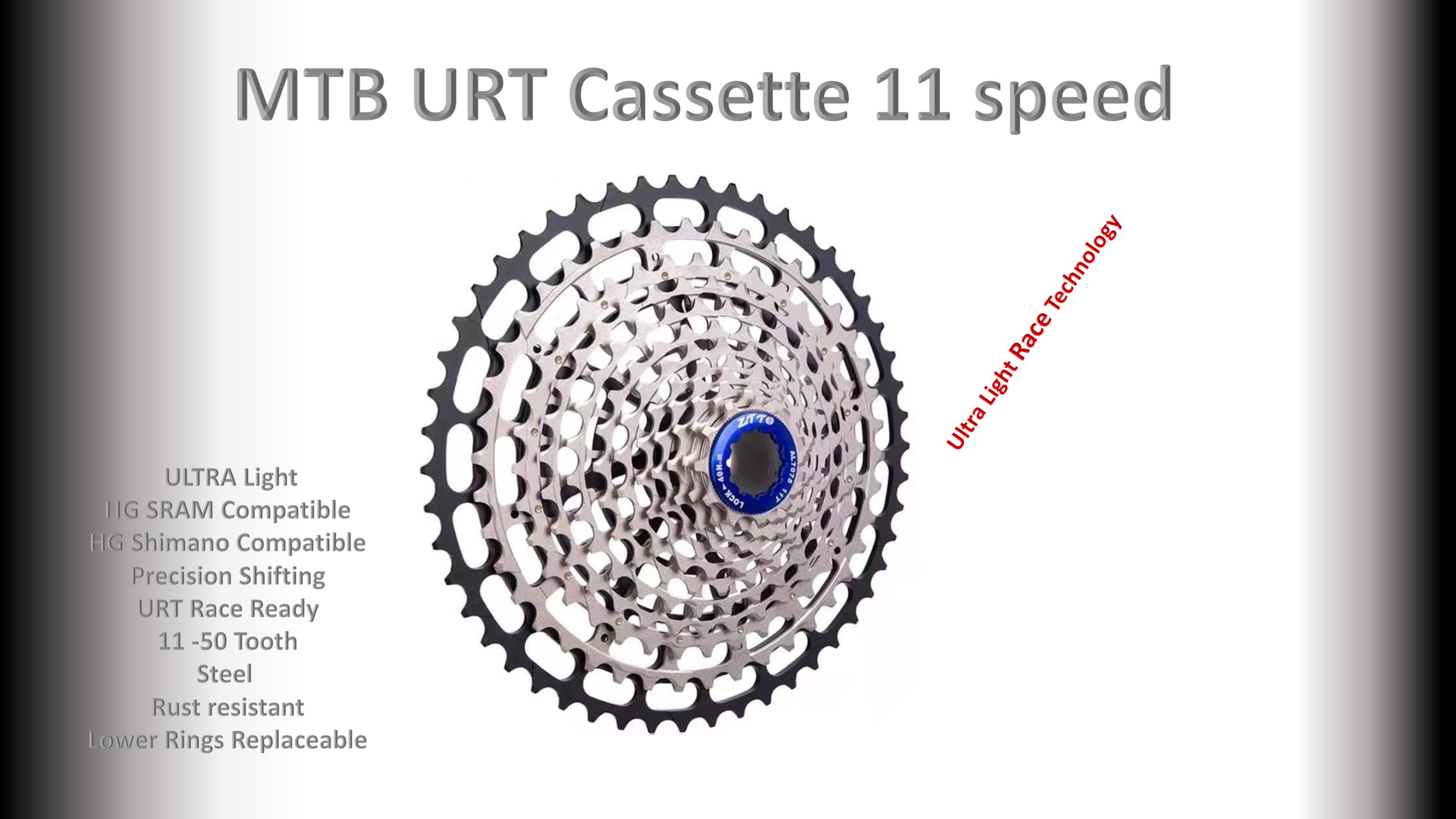

We have three levels of cassettes suited for your budget and needs.

• A: Recreational Level
• B: URT - Racing ready - extremely light
• C: ULT Black series - lightest and strongest full steel cassette - racing recommended

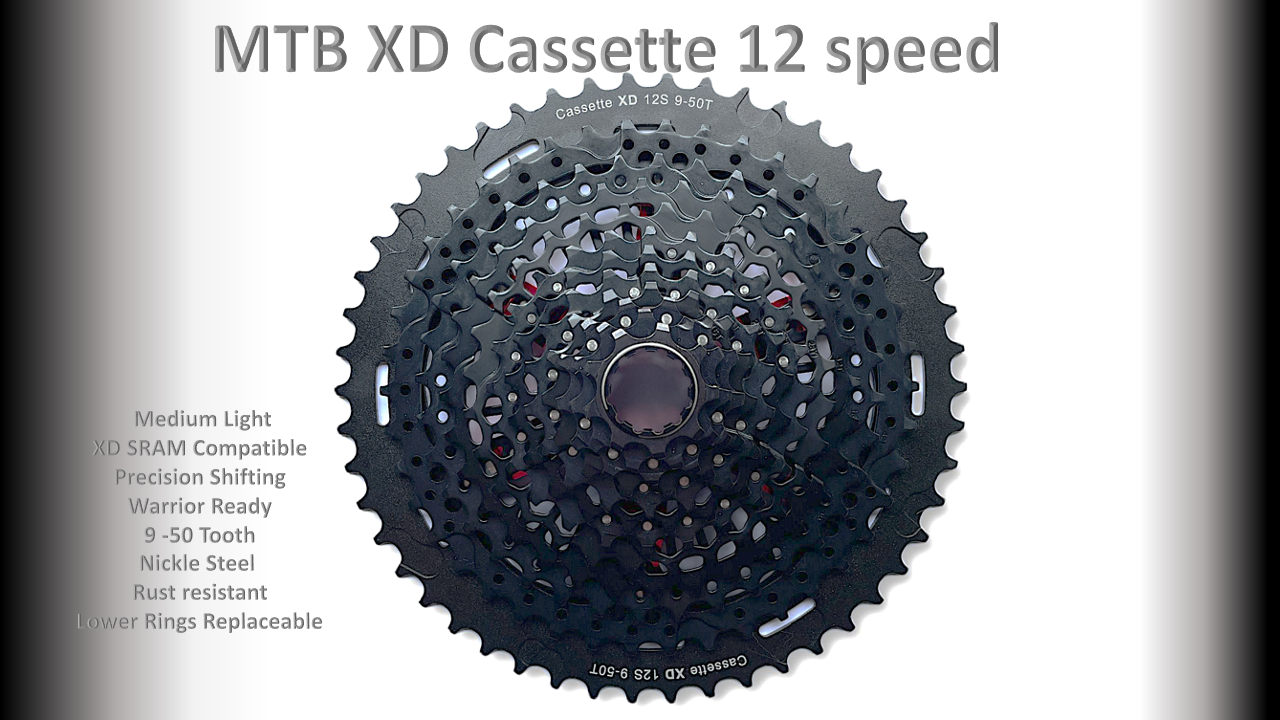

The cassettes also come in both XD or HG compatible, Cassette selection is also based on 8/9/10/11 or 12s, they also come in ranges of cassette sizes in smallest ring to largest ring - larger rings suited to climbing and smaller to ultra speed.

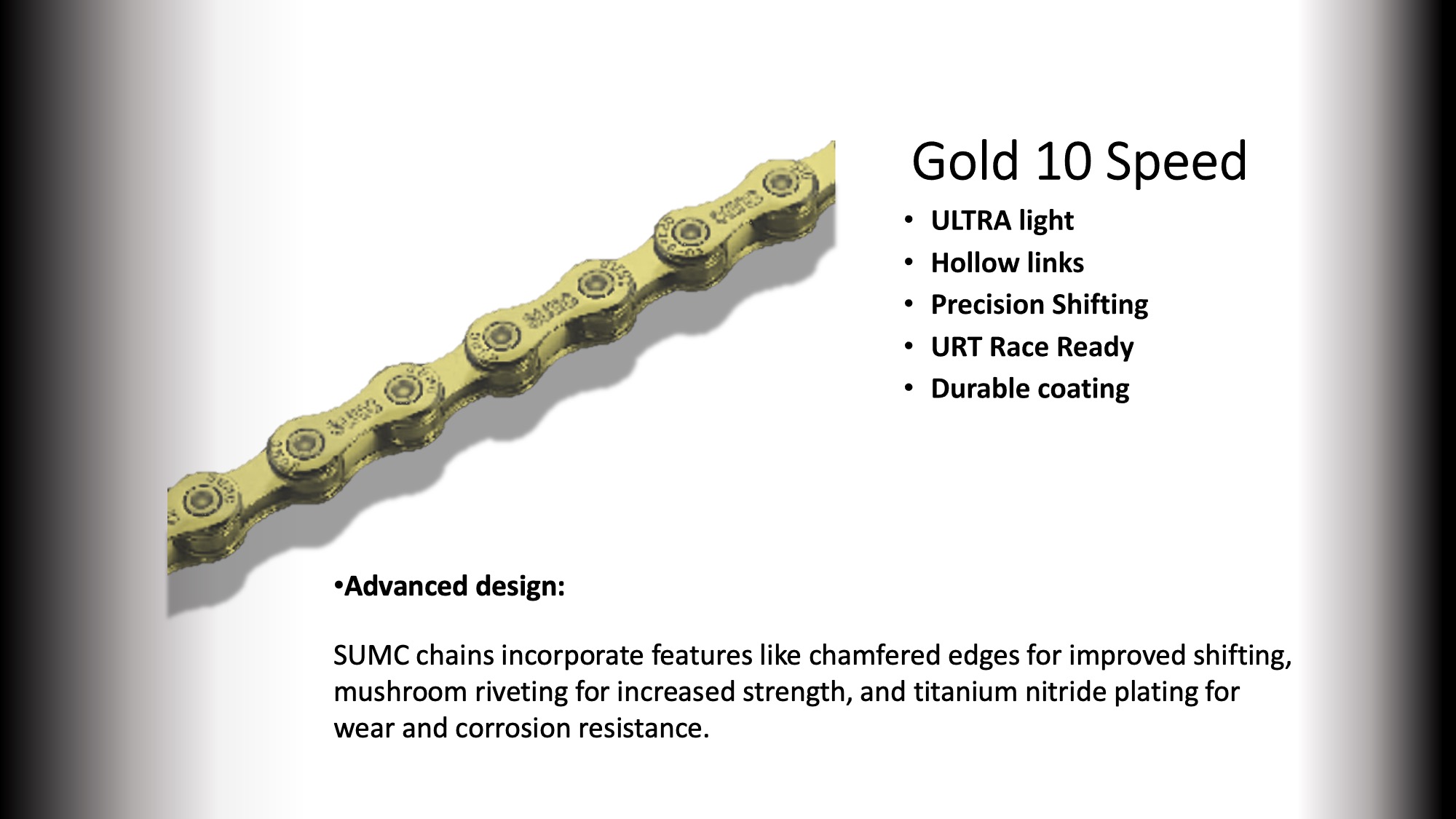

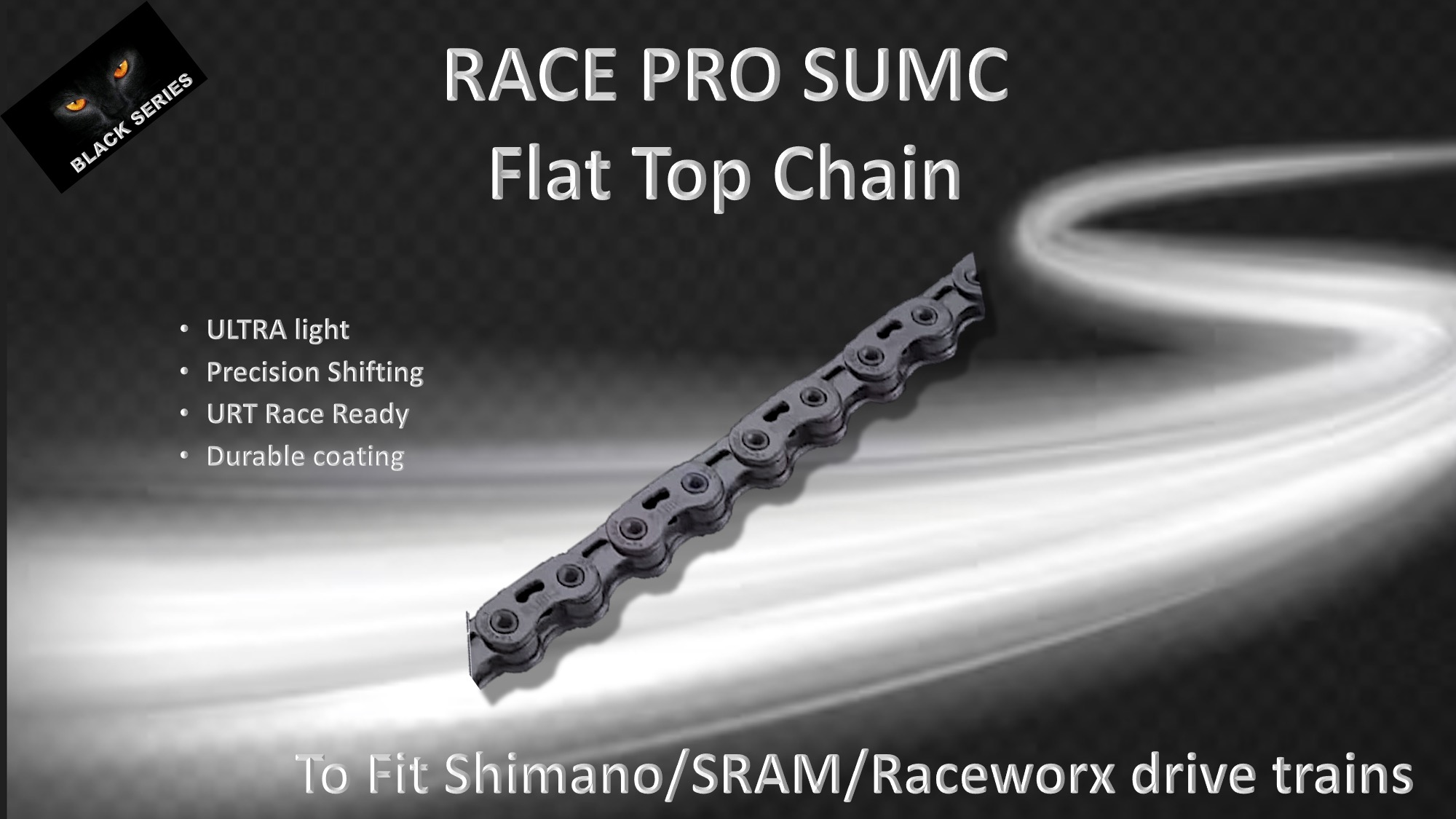

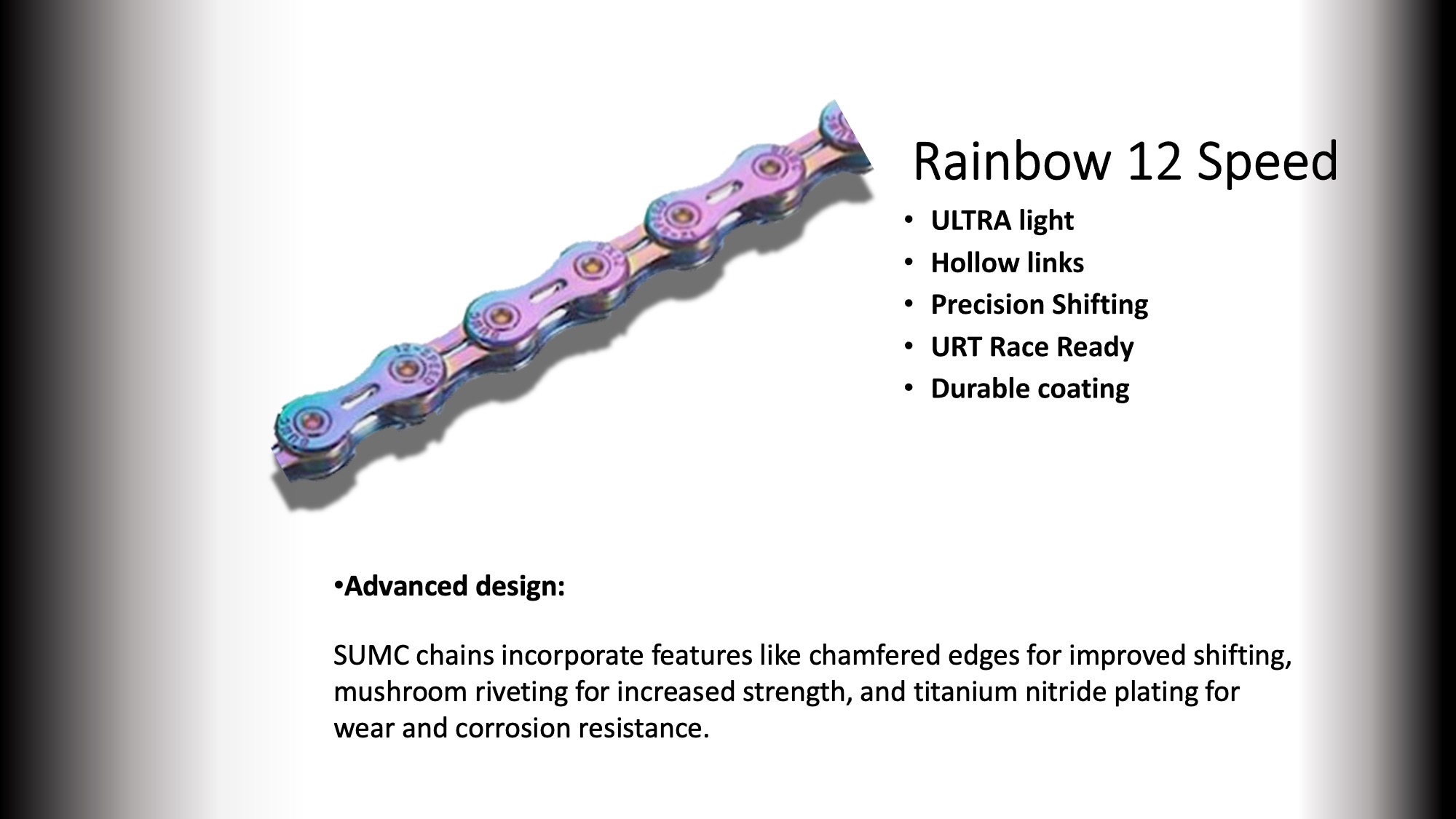

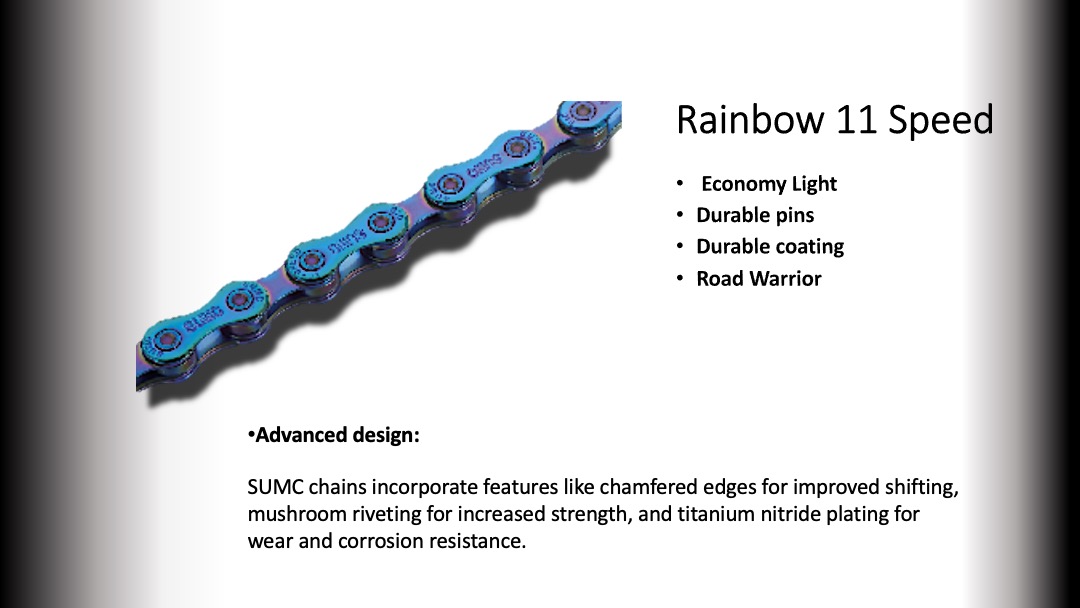

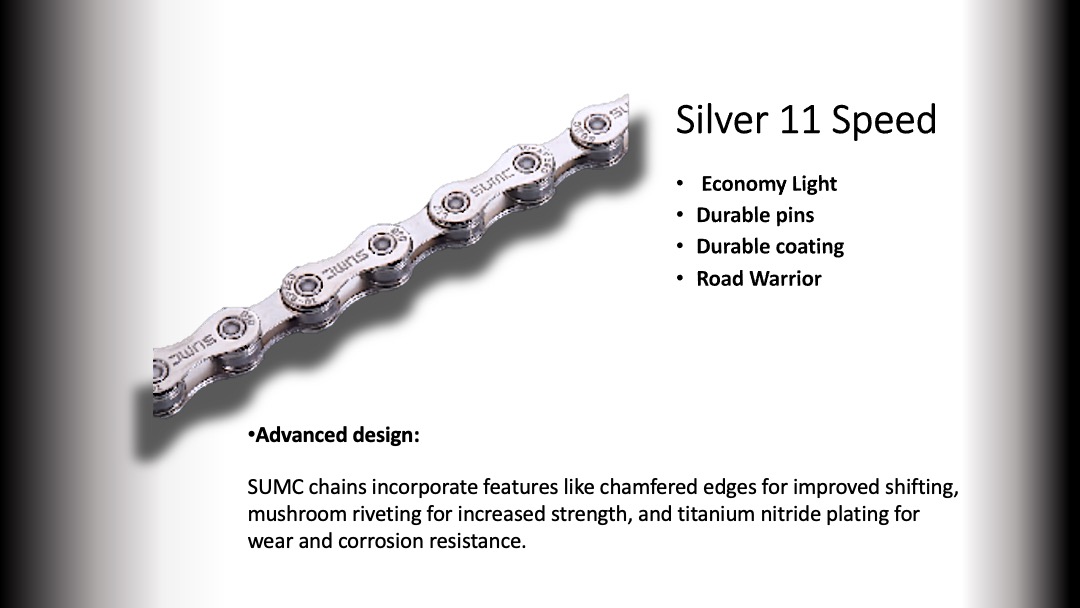

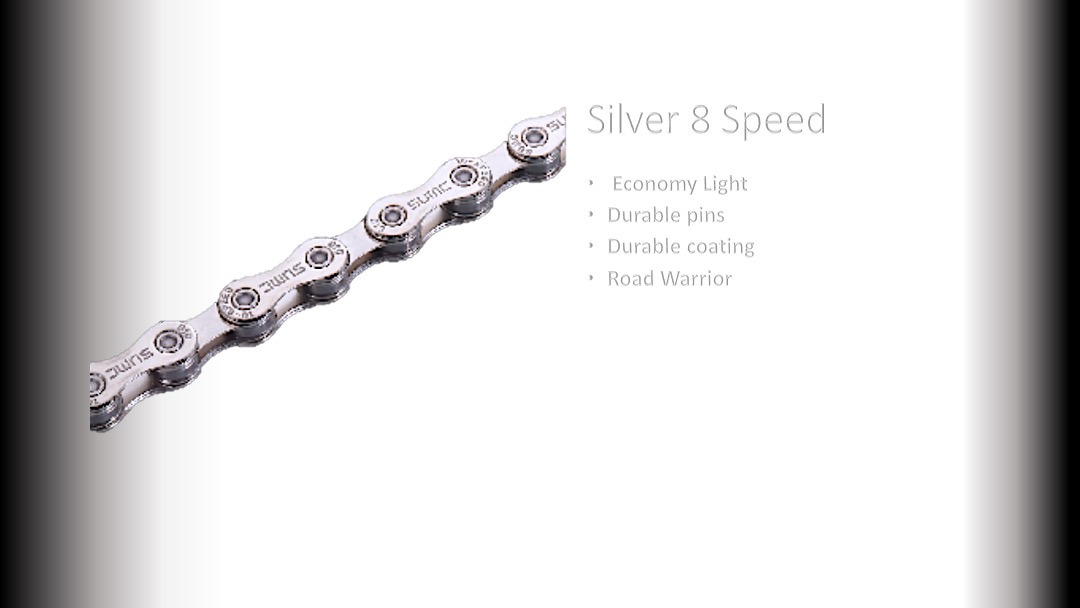

We have four levels of chains suited for your budget and needs.

• A: Recreational Level - silver
• B: URT - Racing ready - extremely light - Oil Slick

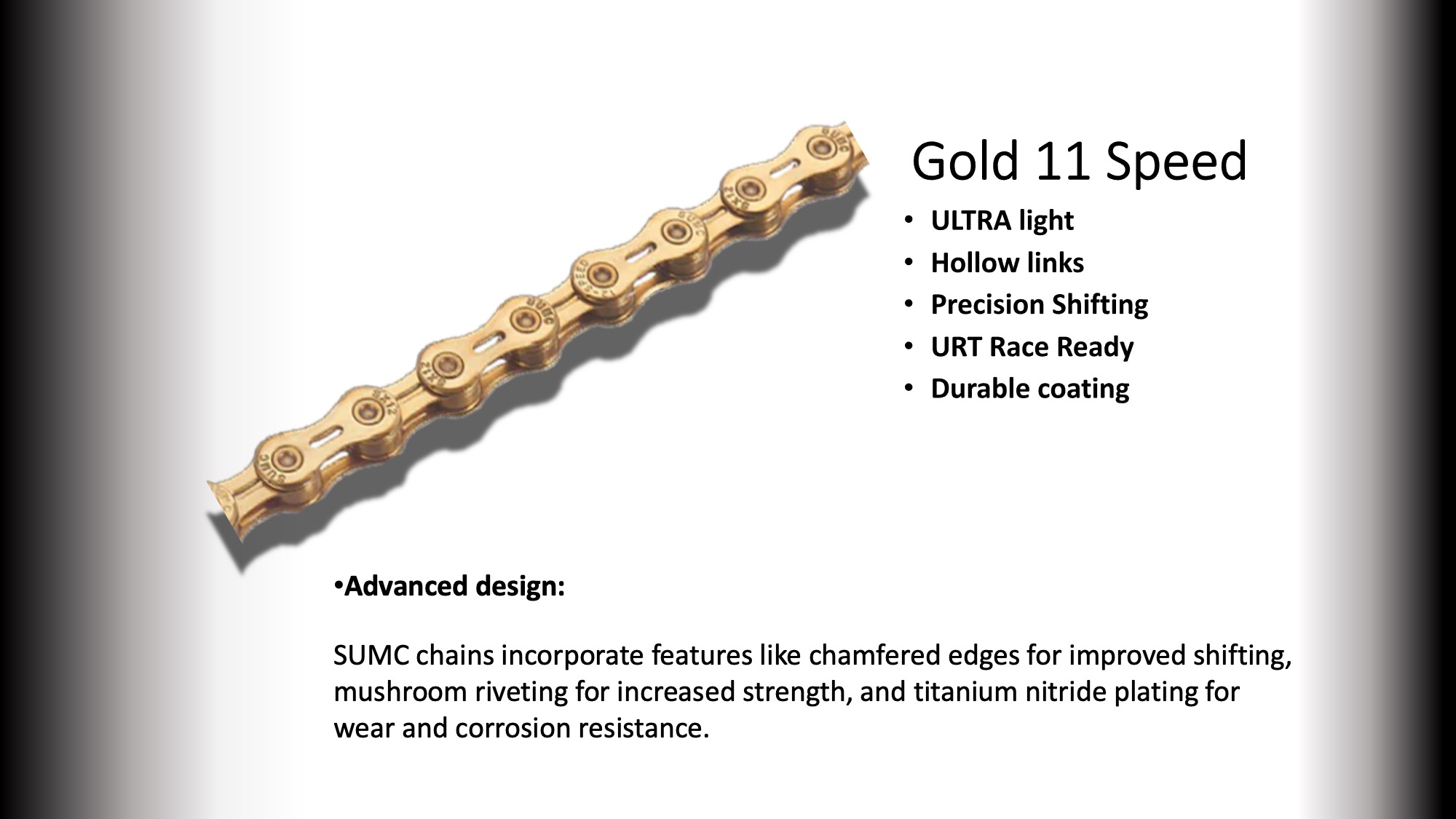

• C: URT - Racing ready - extremely light - Gold Titanium
• C: ULT Black series - lightest - racing recommended -SRAM Flat Top Compatible

Our seats are 3D printed with various lengths and widths suited for every type racing - your choices are also availabile for weight saving as our rails and base are carbon Fibre - White colour 3d printed for frame matching is available

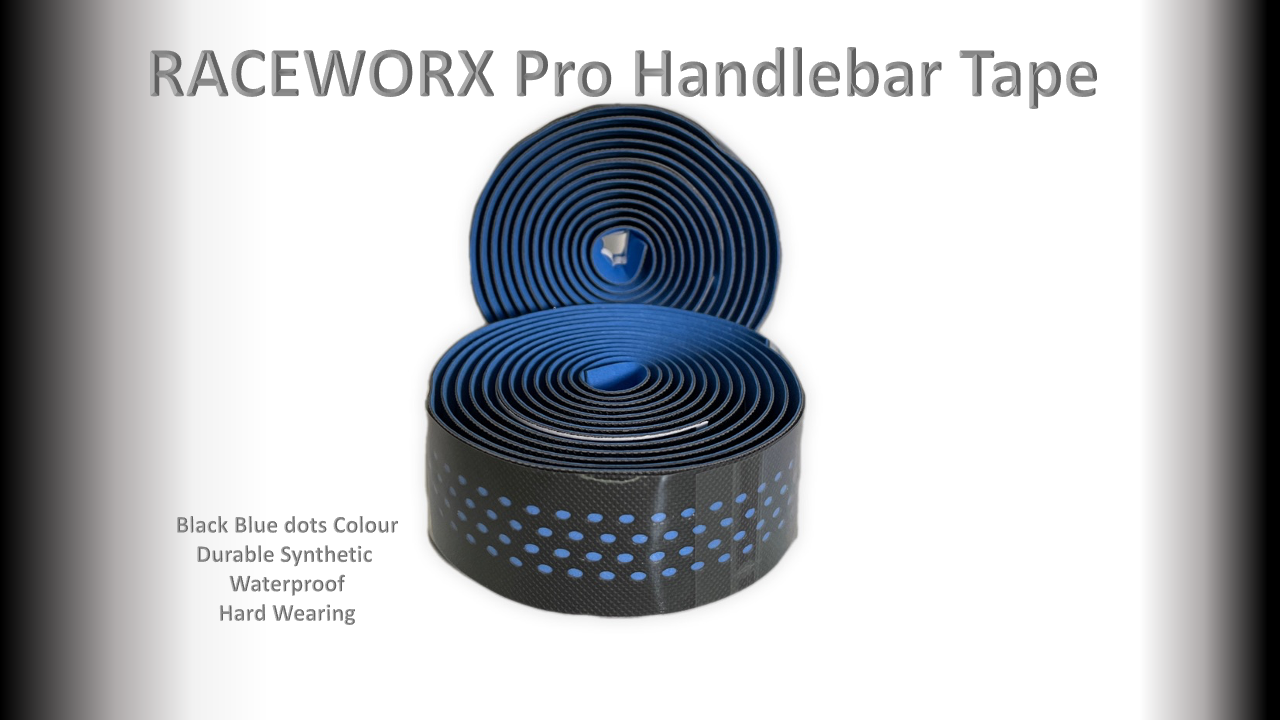

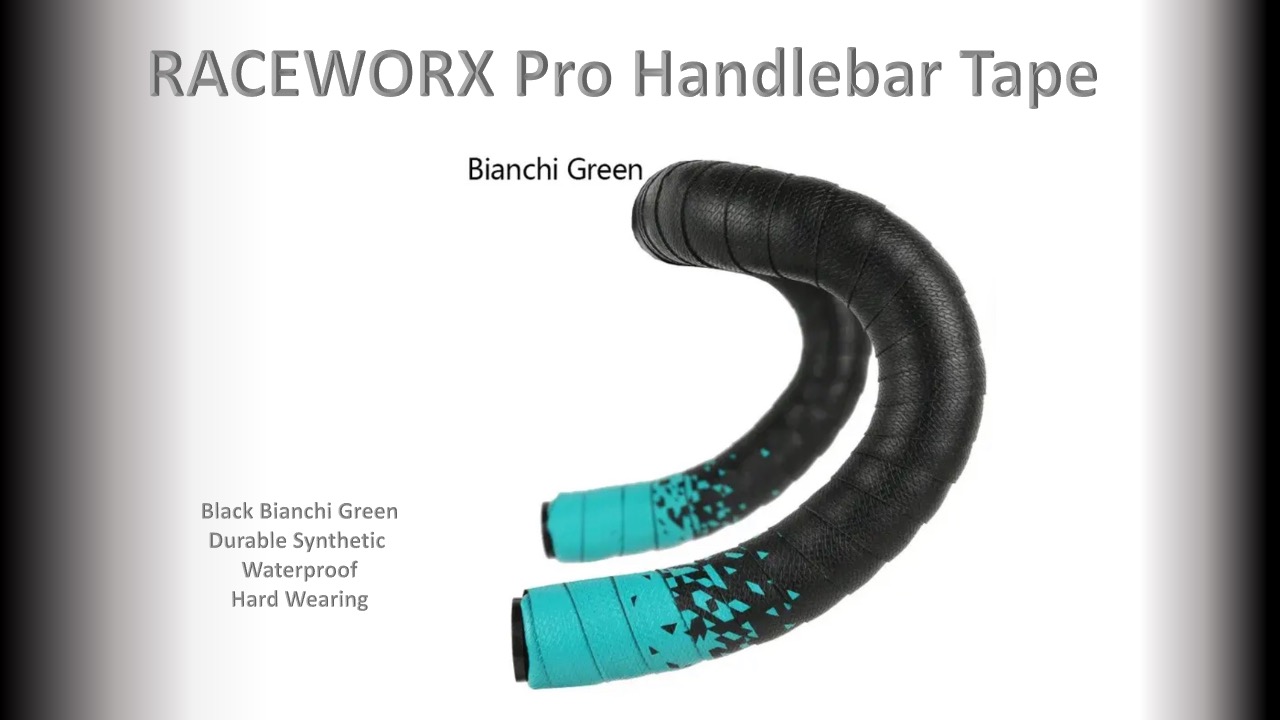

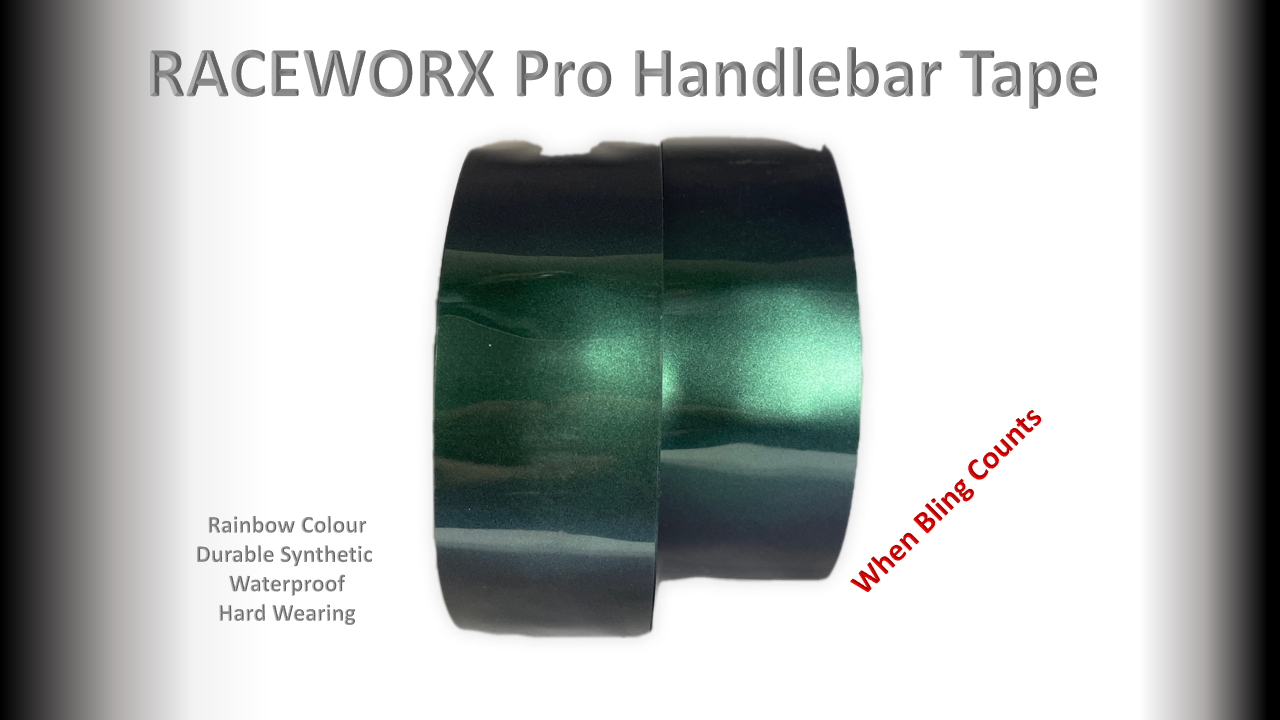

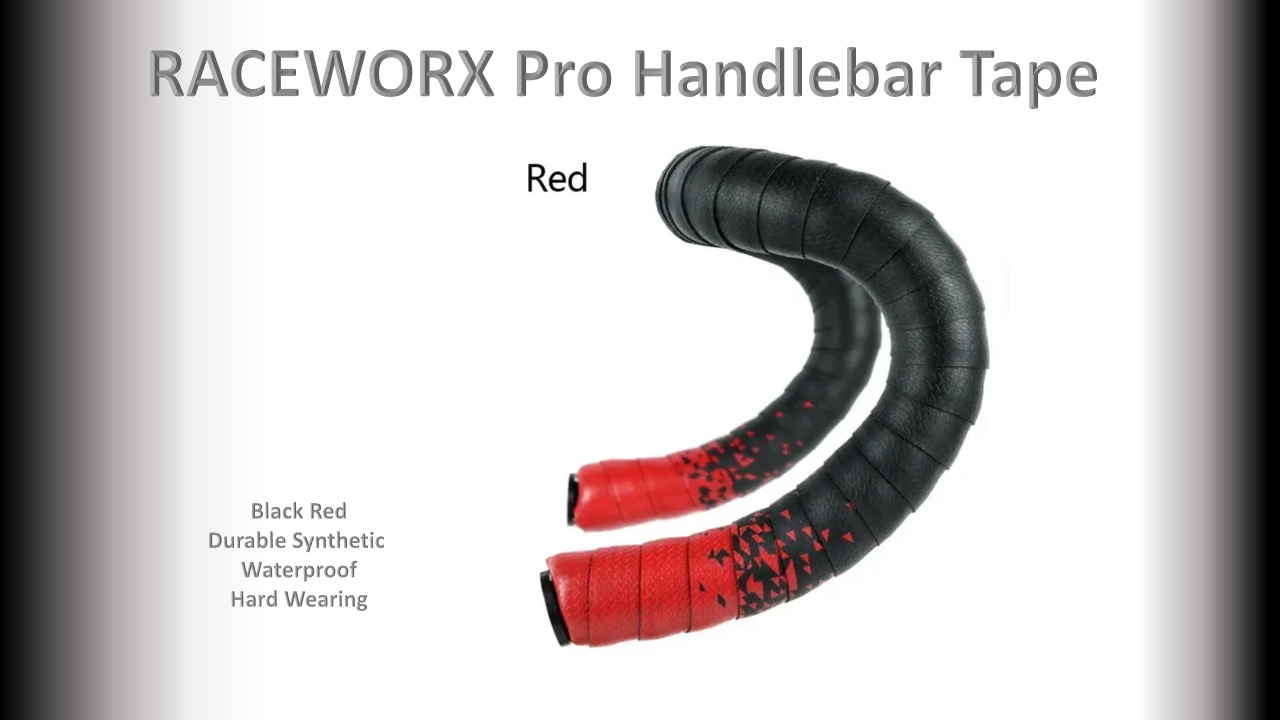

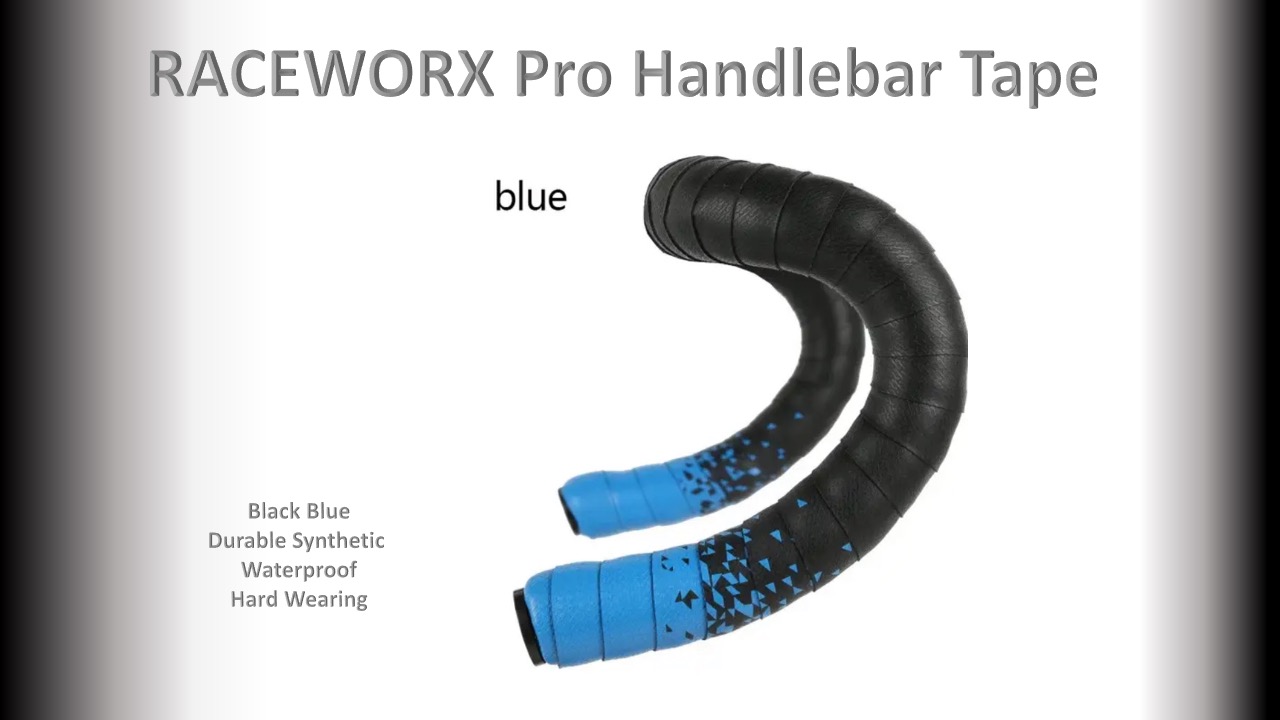

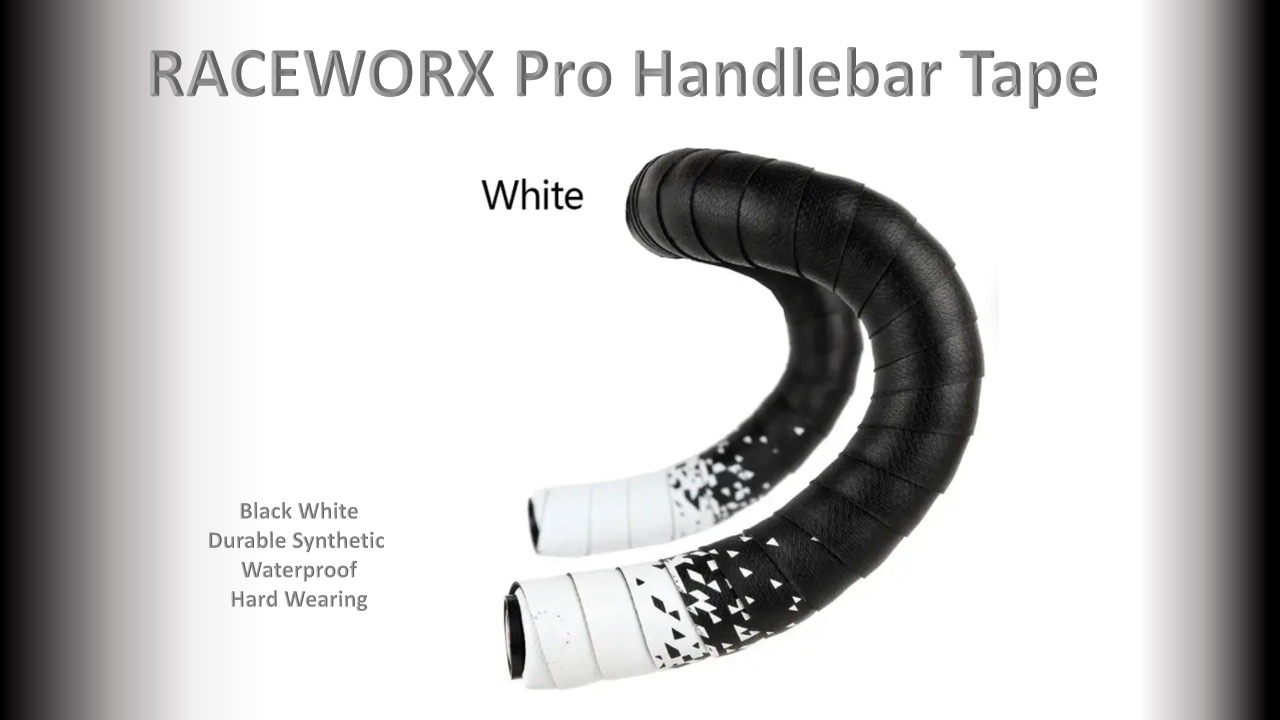

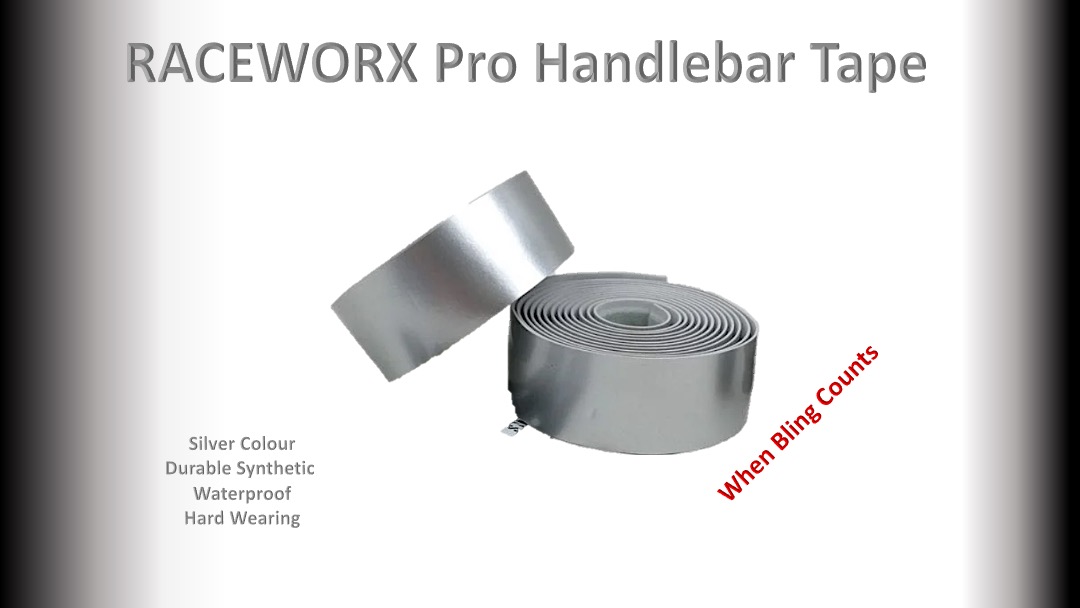

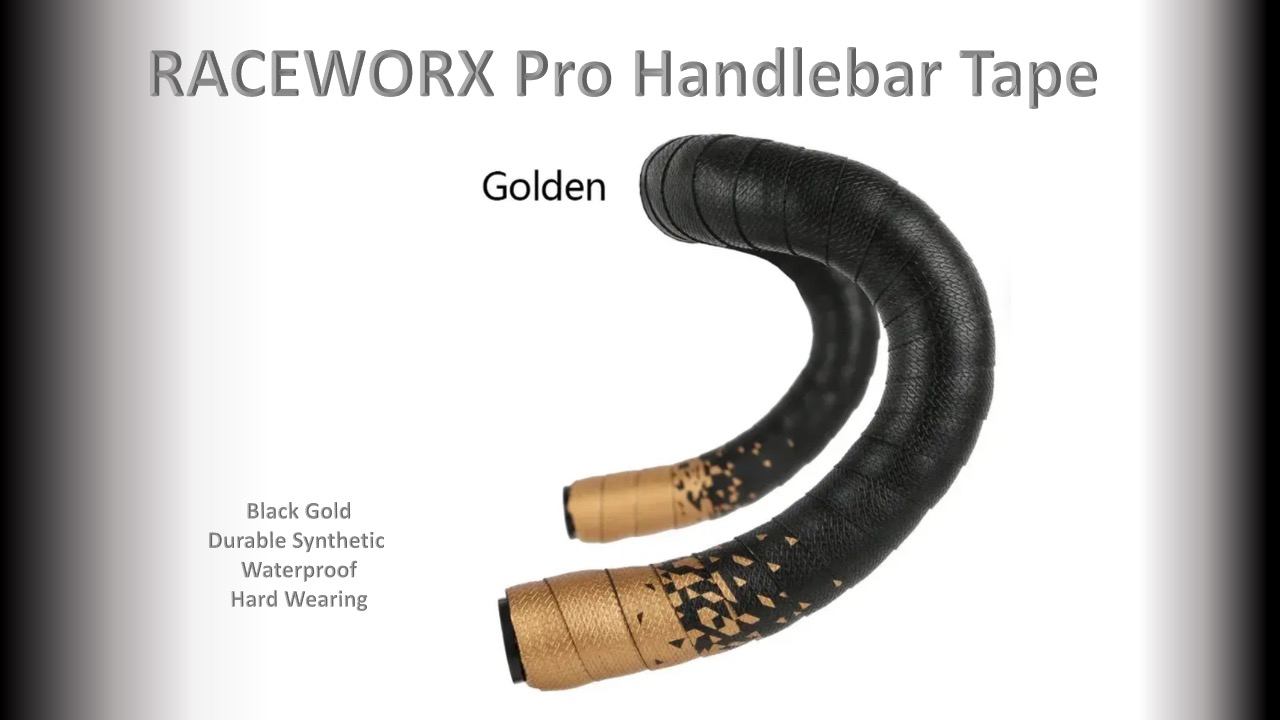

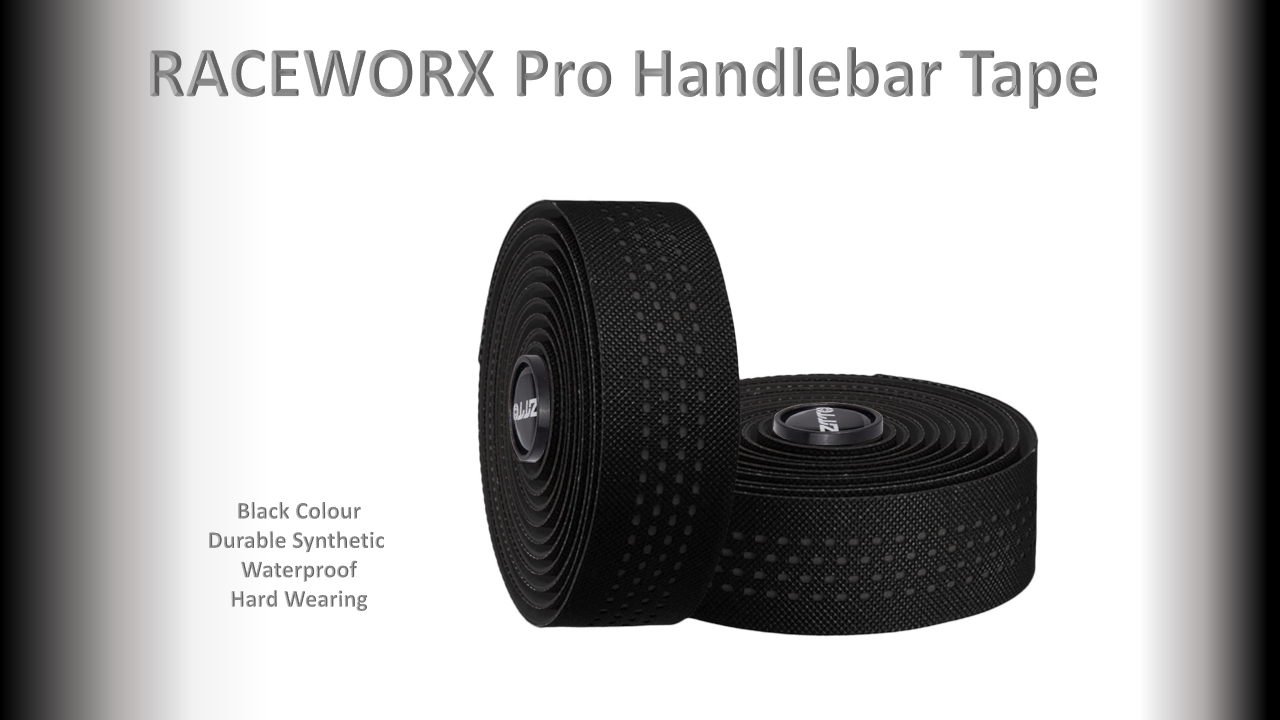

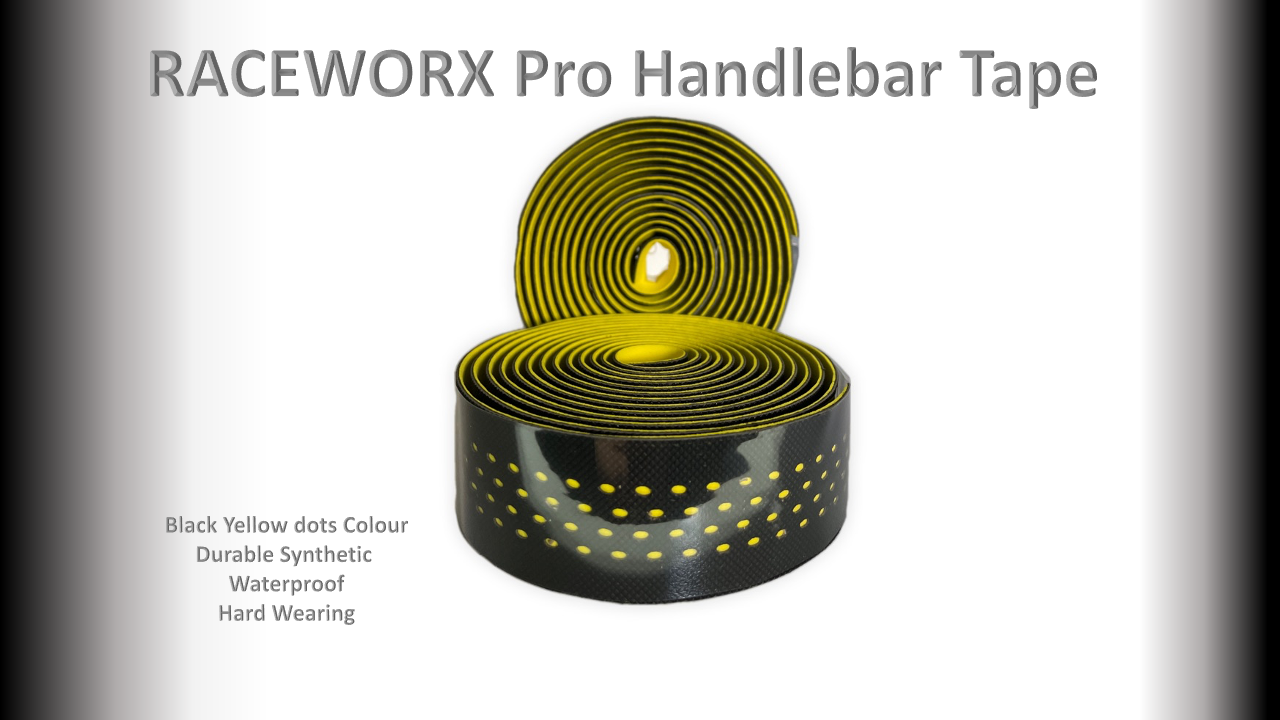

Multiple levels and colours can be selected - all our tape is 2.3mm thick and made from synthetic materials

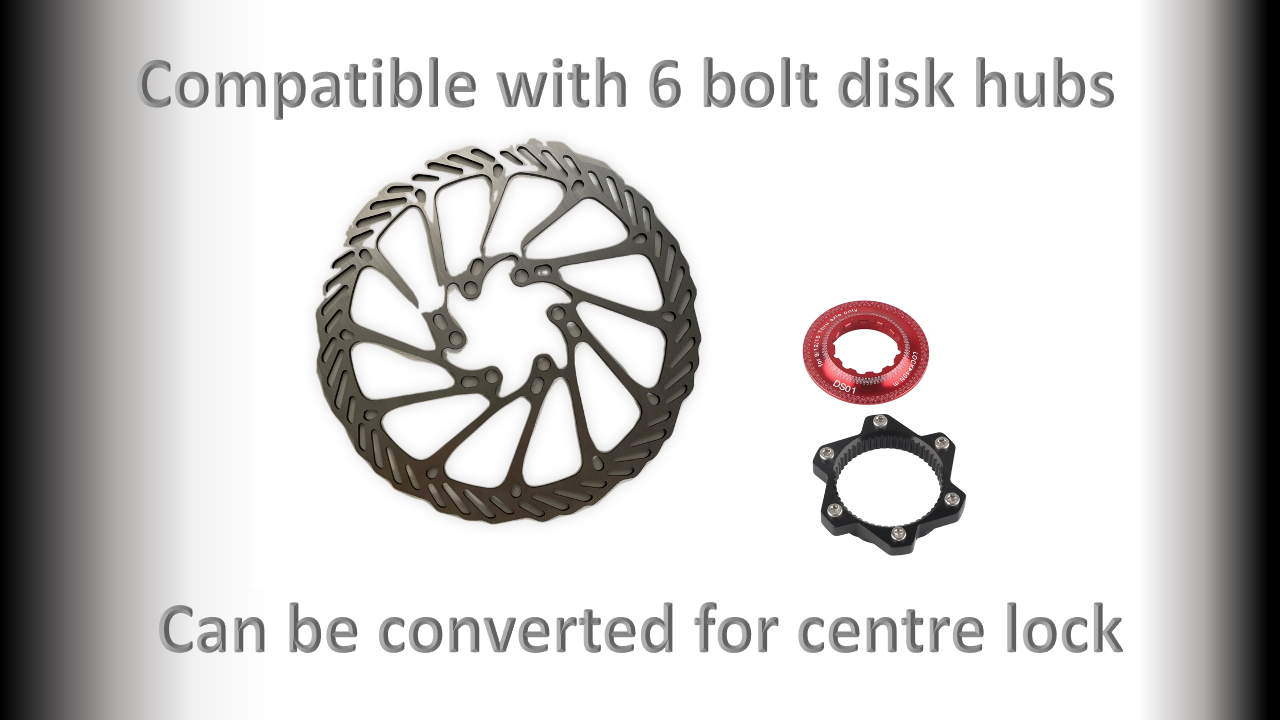

Brake rotors can be selected in three levels

• A: Steel rotors - with 6 bolt connections - 140mm/160mm and 180mm
• B: Steel carbon rotors - with 6 bolt connections - 140mm/160mm

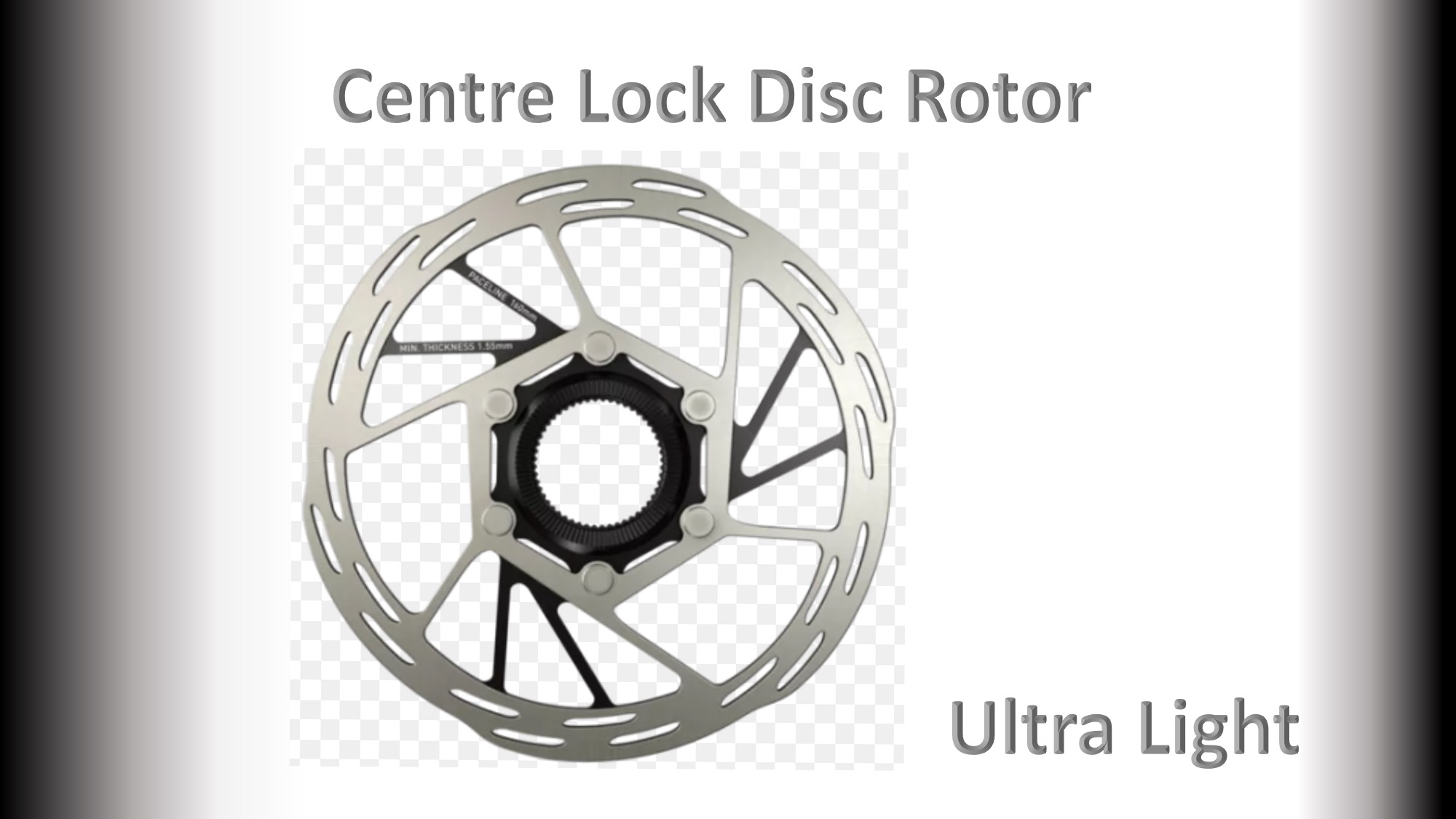

• C: Steel carbon rotors - with centre lock connections - 140mm/160mm
• D: Carbon Centre/ Steel rotors - with centre lock connections - 140mm/160mm

For road frames its recommended to use 1400mm rear and 160mm front rotors
For gravel frames its recommended to use 160mm rear and 160/180mm front rotors

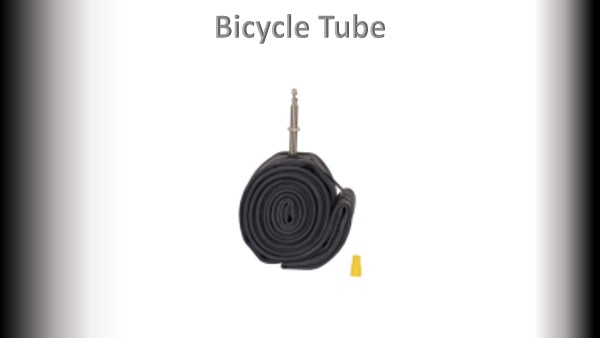

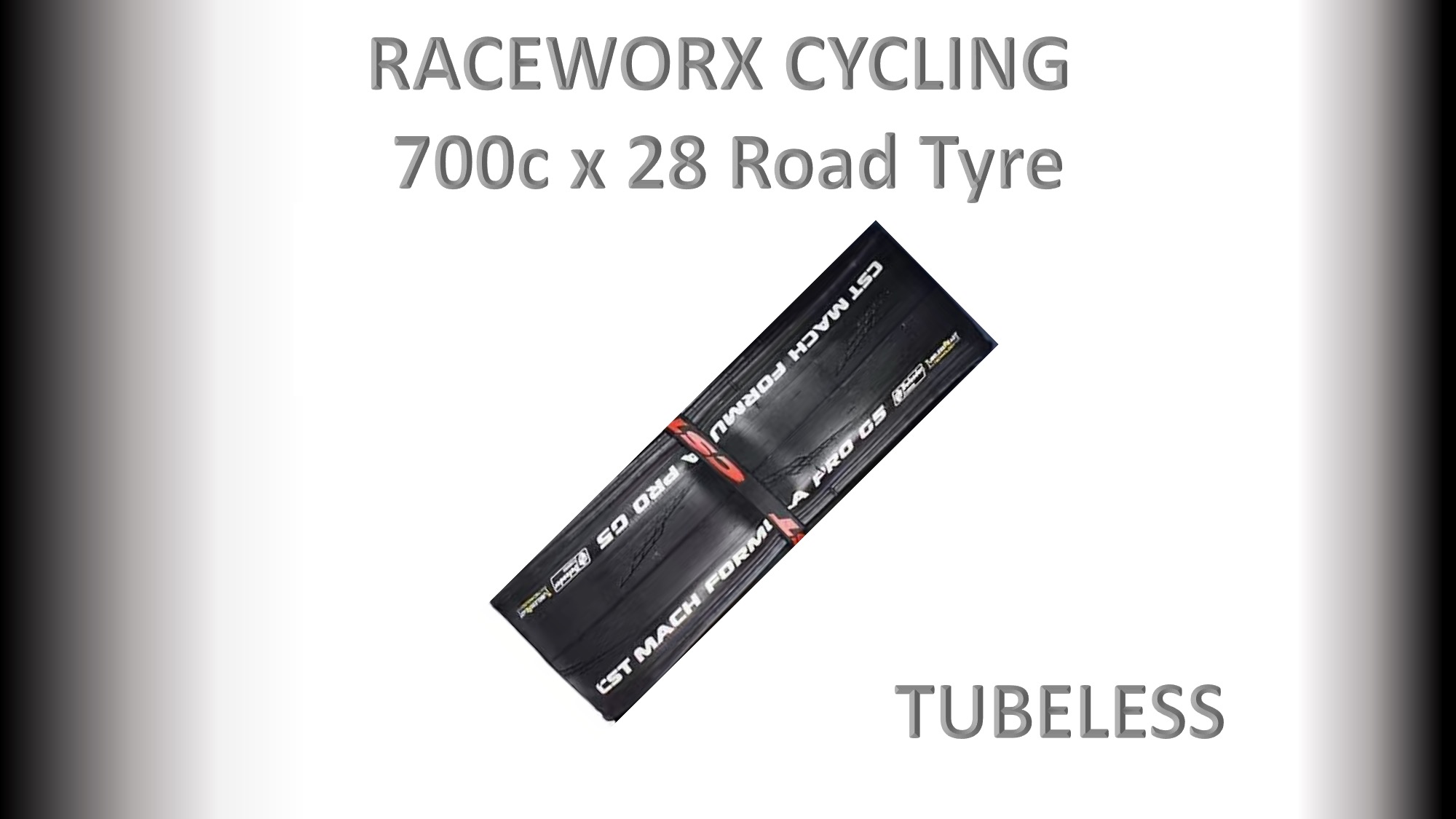

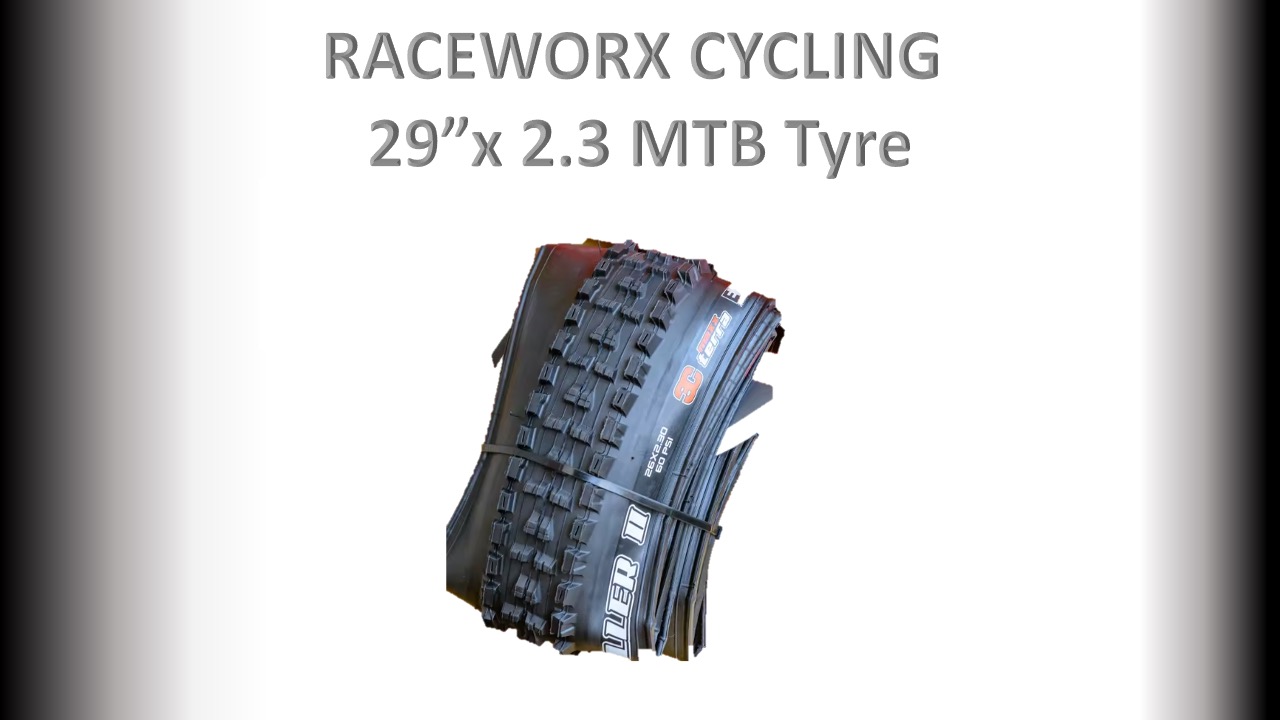

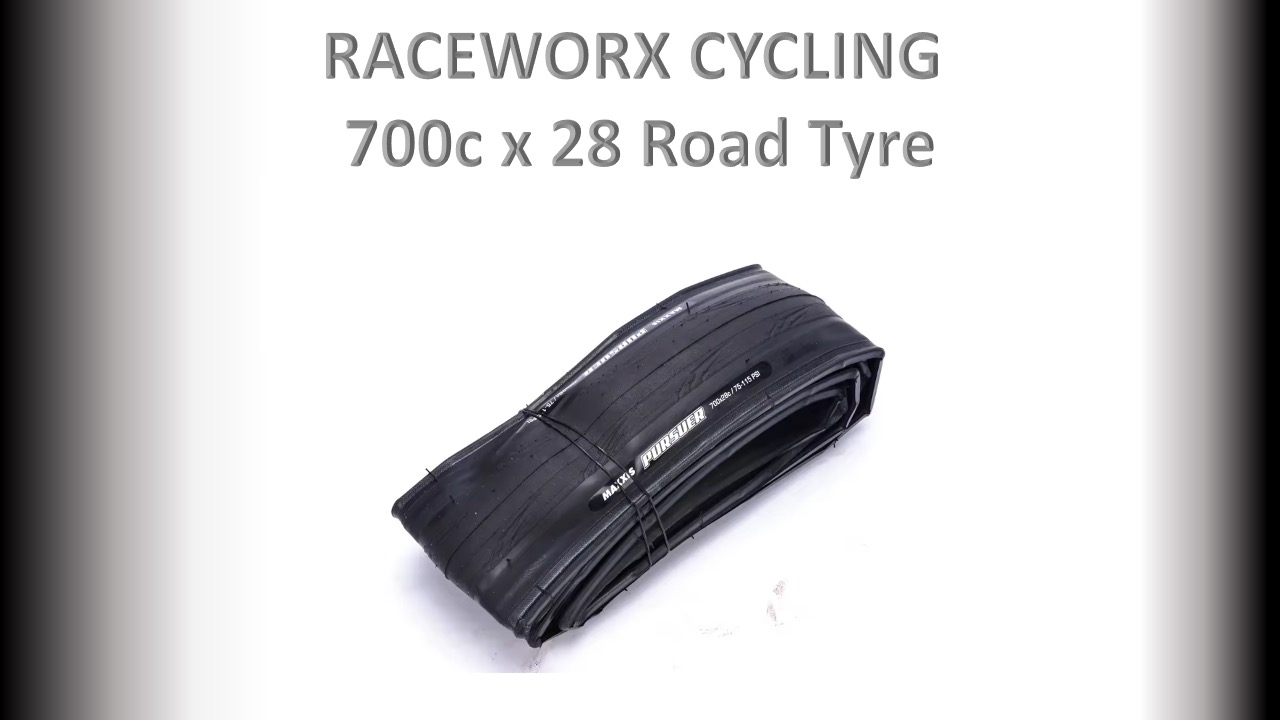

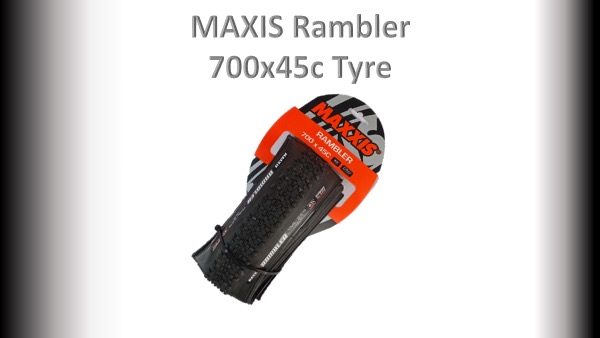

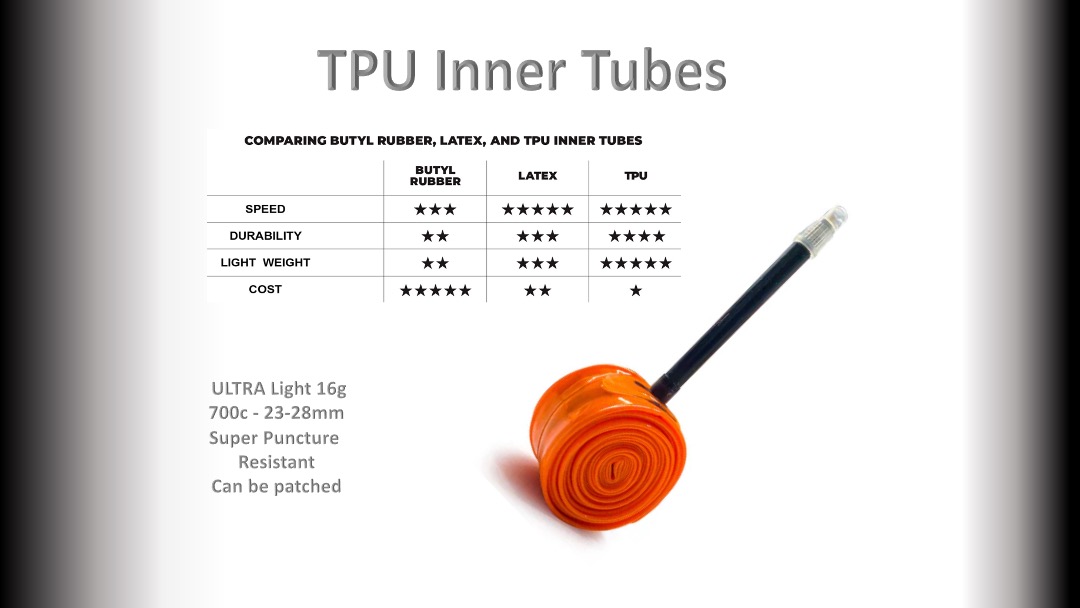

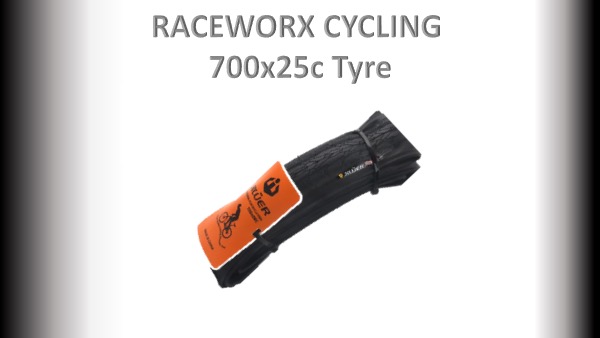

Be sure to choose Tubeless tyre ism you want tubeless, also the widths available from 25c/28c/30c . We also have black side walls or tan side walls. Gravel tyres are either 40c/45/c or 50c they are also in Tubeless Ready or normal Tube version.

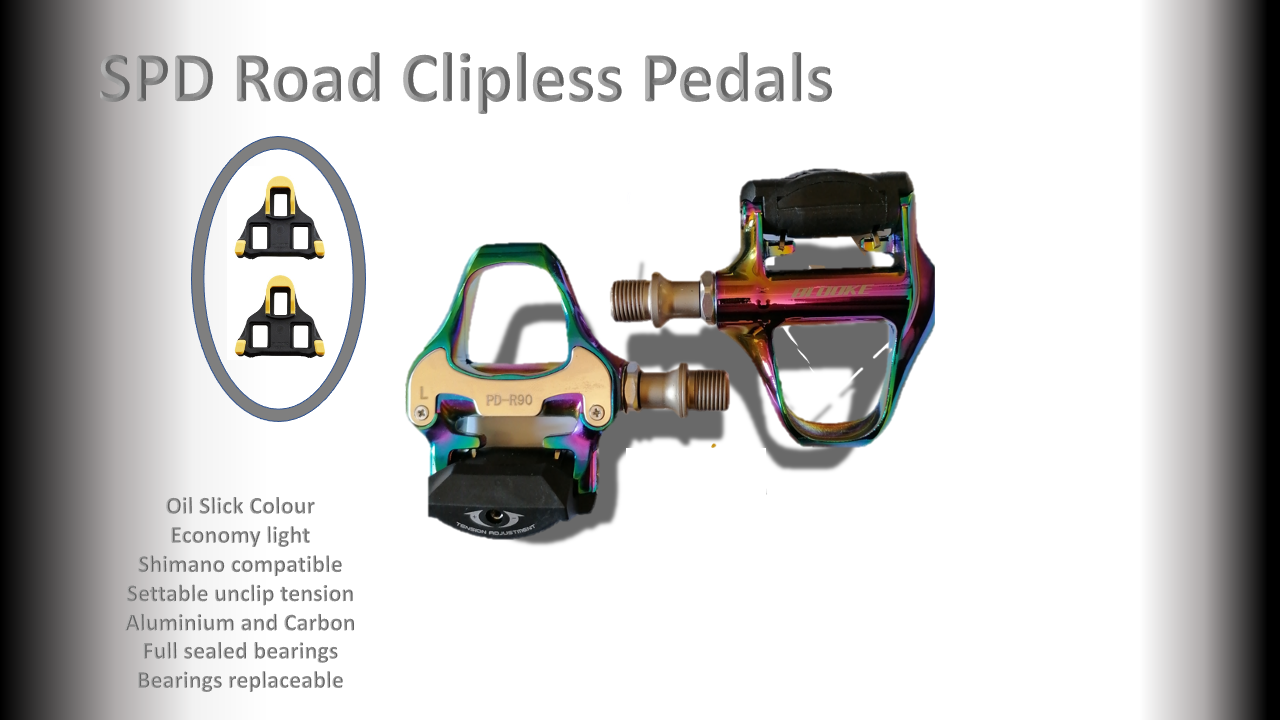

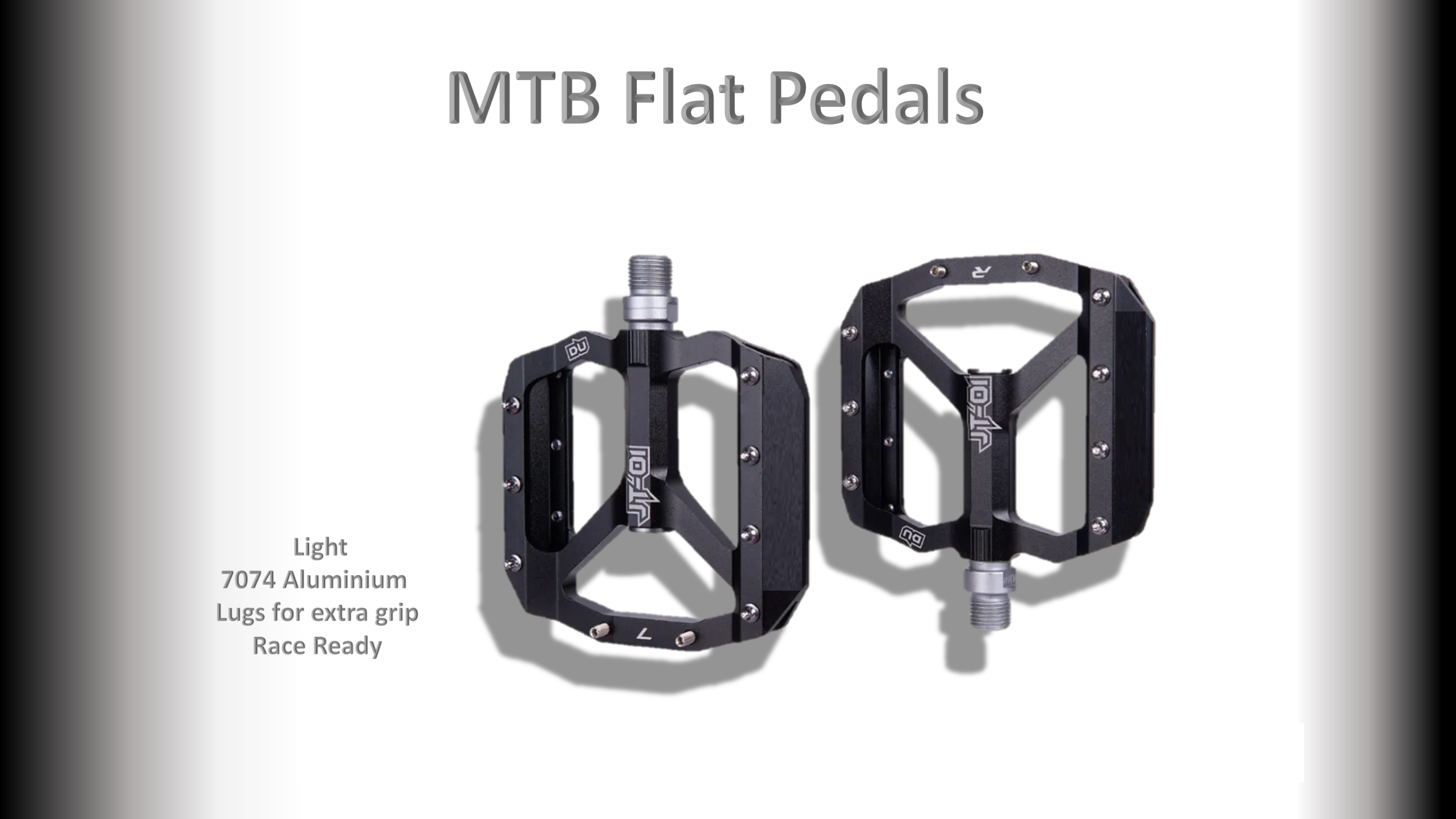

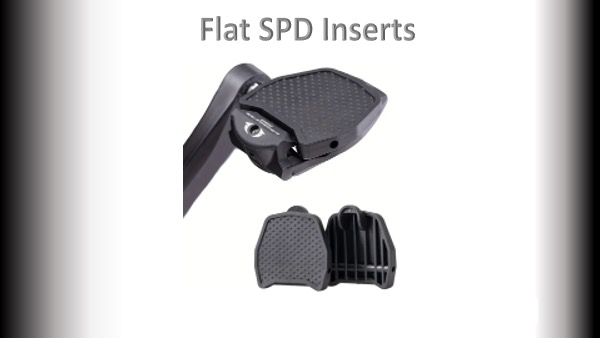

Our pedals for road bikes are available in Look compatible and Shimano compatible. MTB and or Gravel pedals are SPD Shimano comparable
